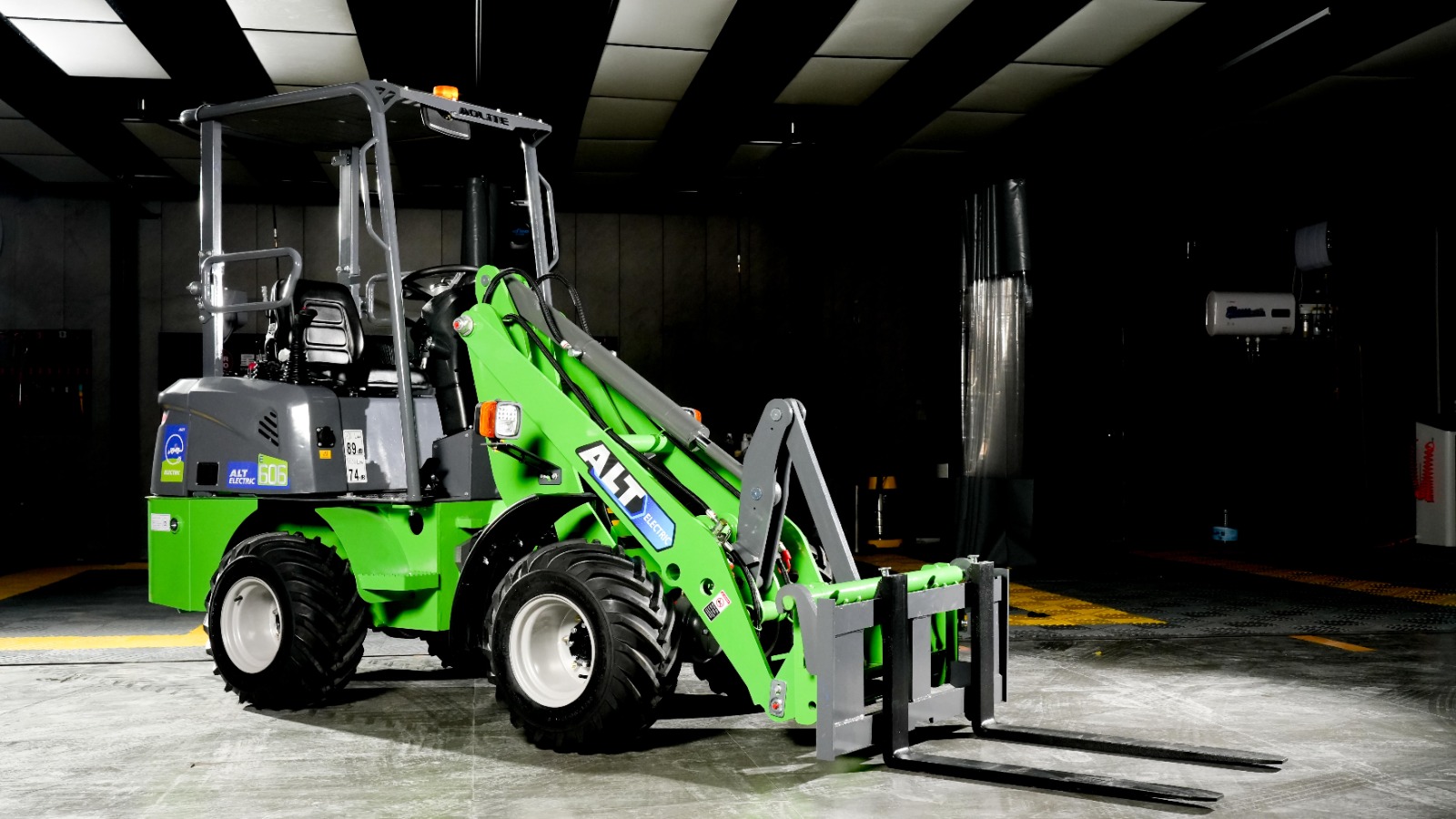

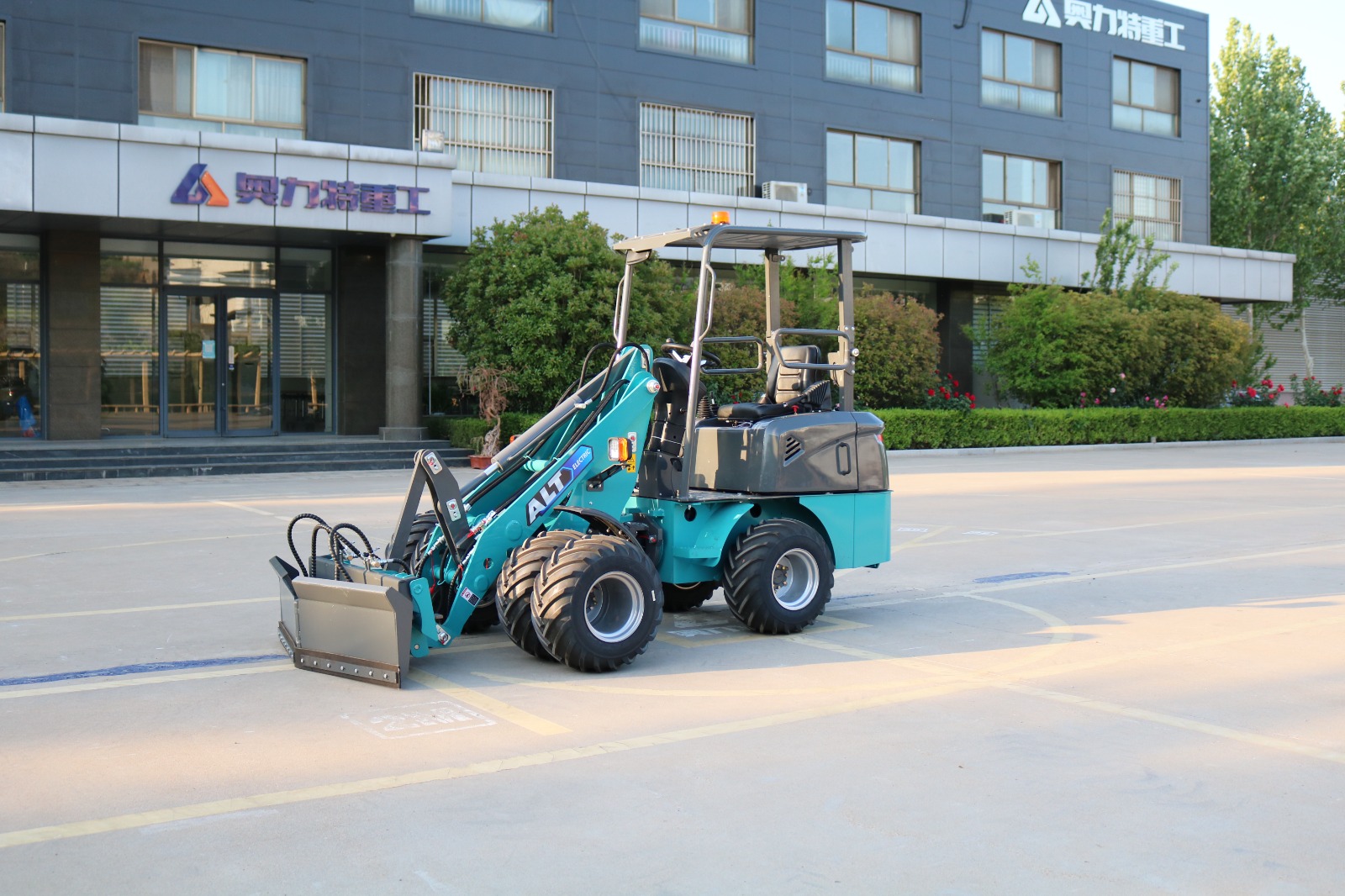

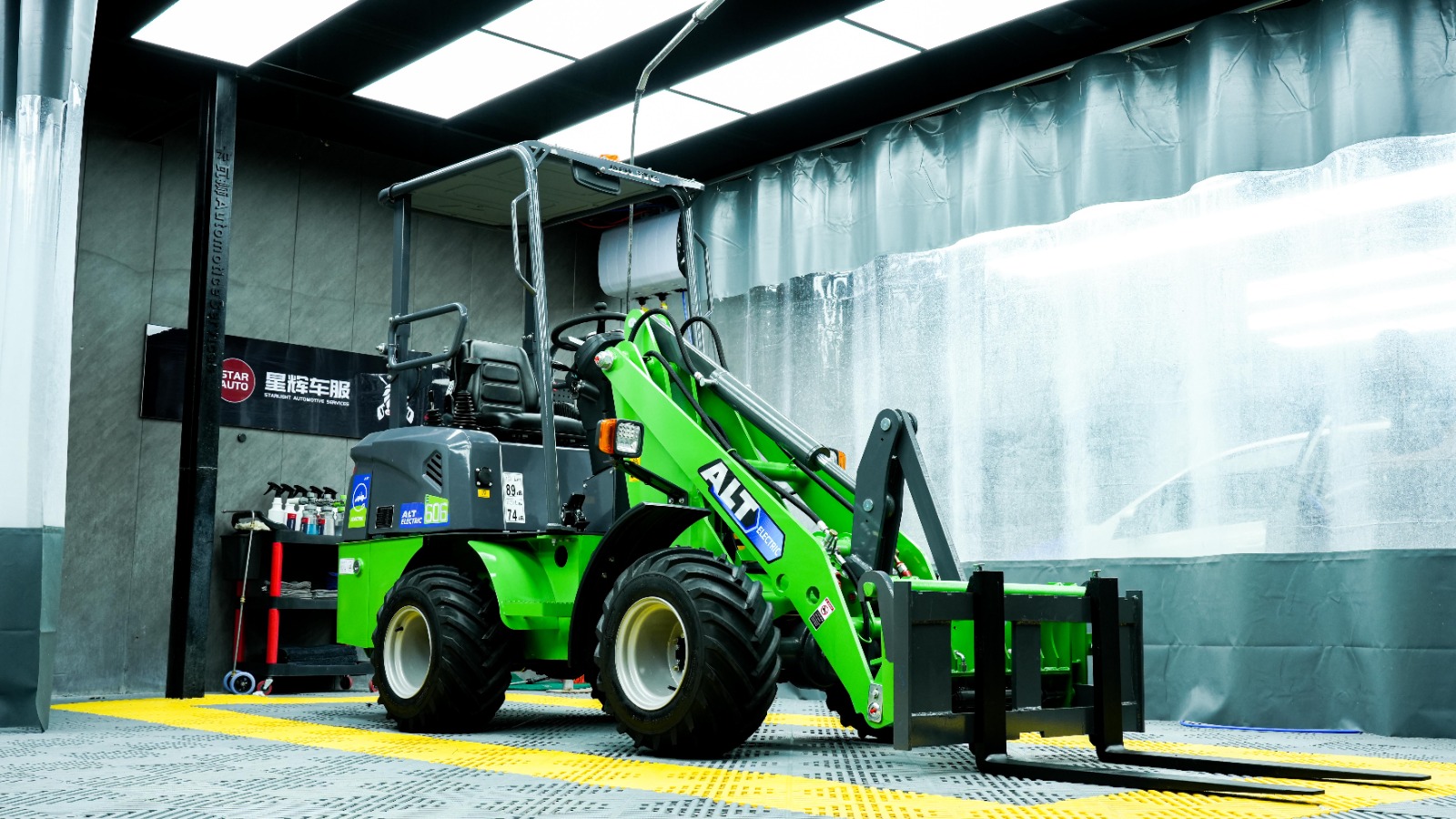

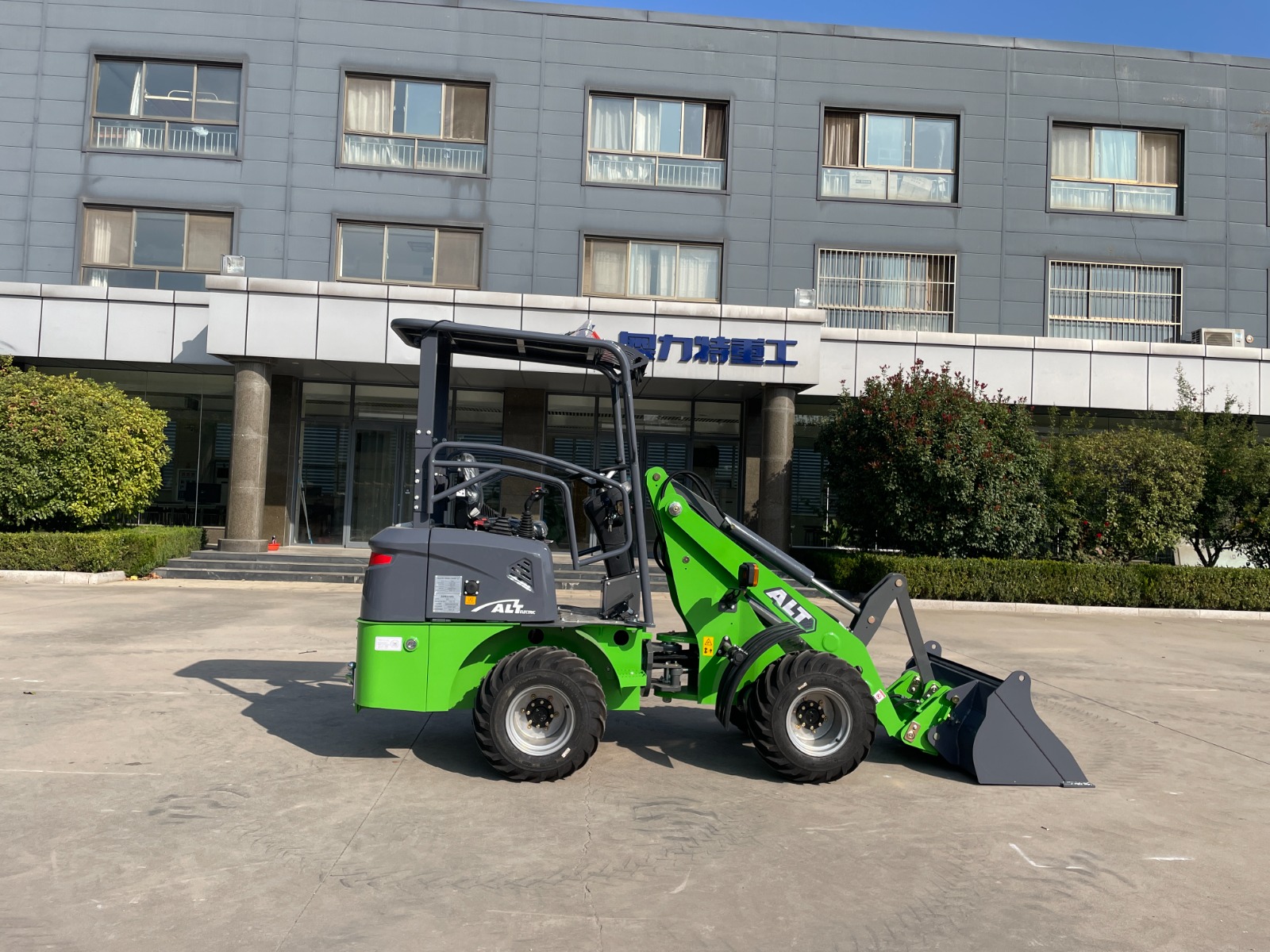

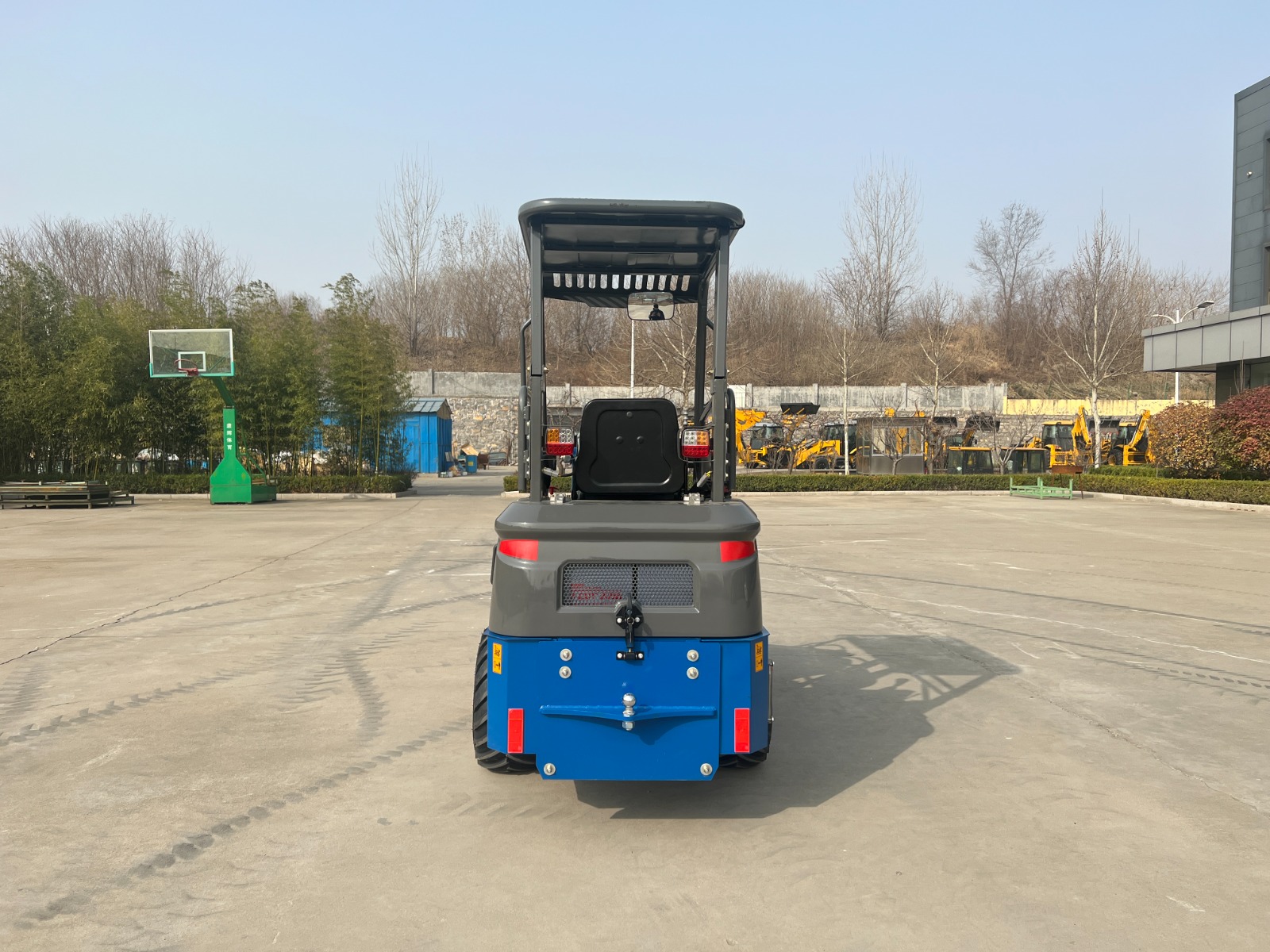

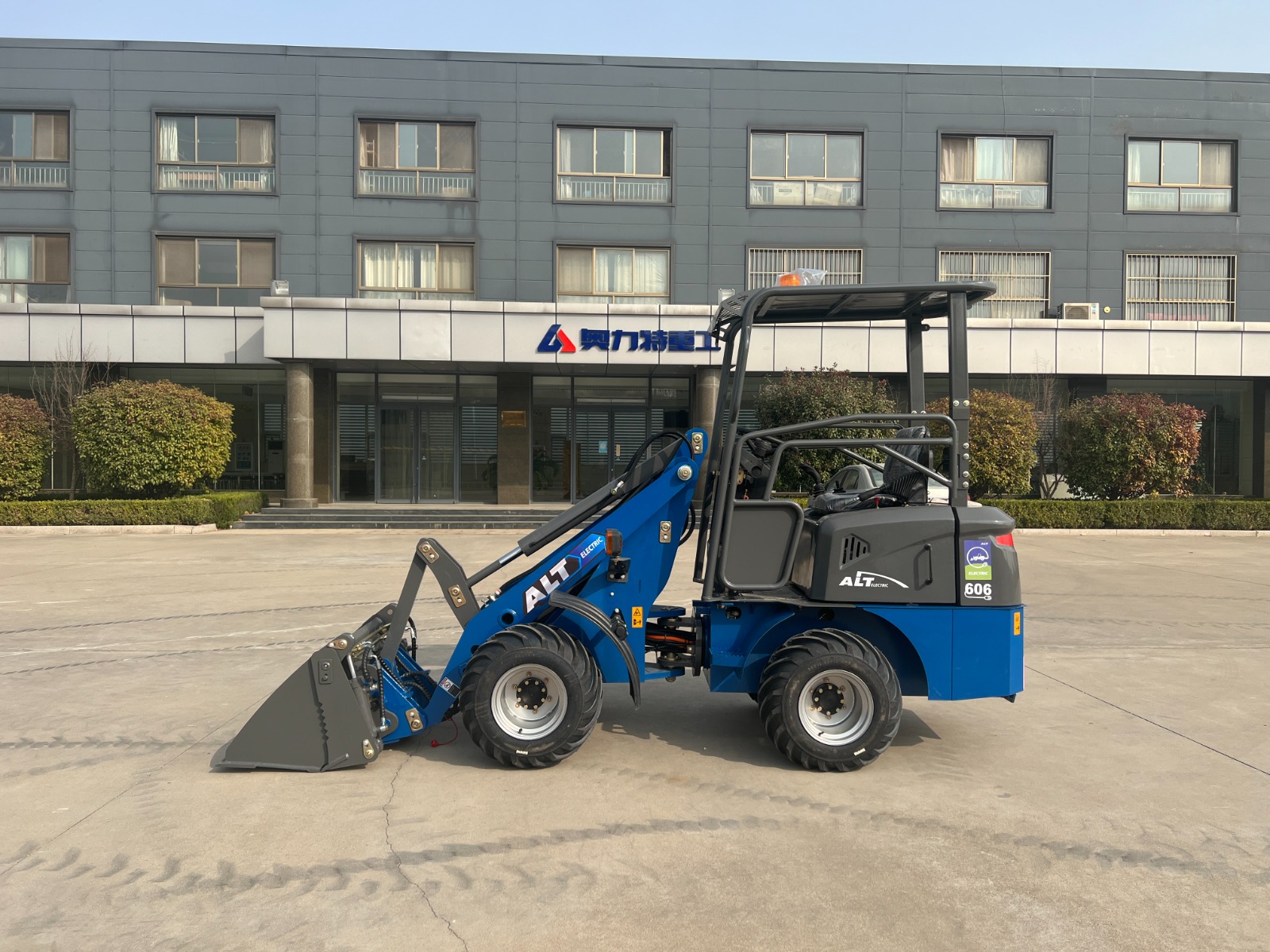

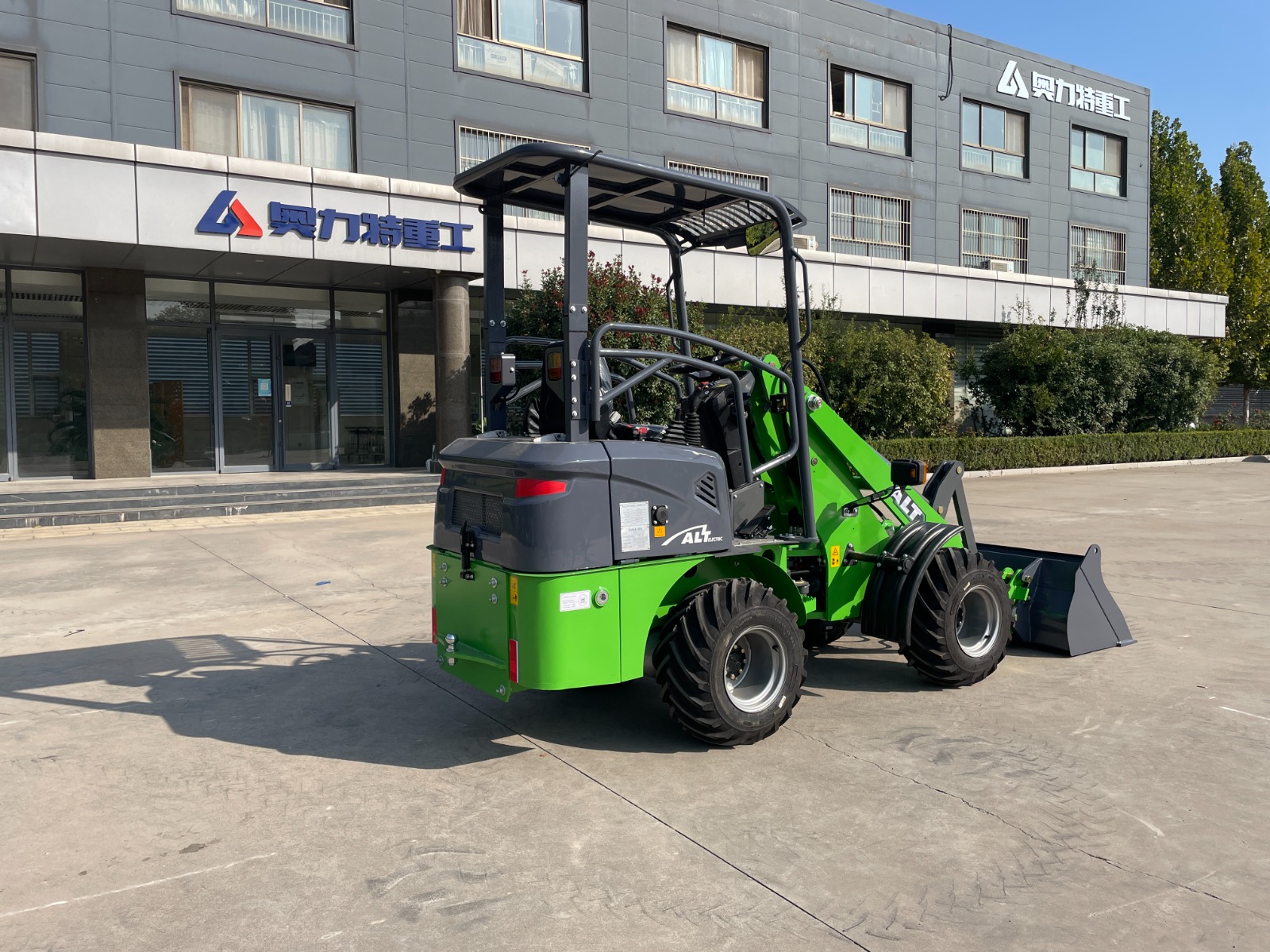

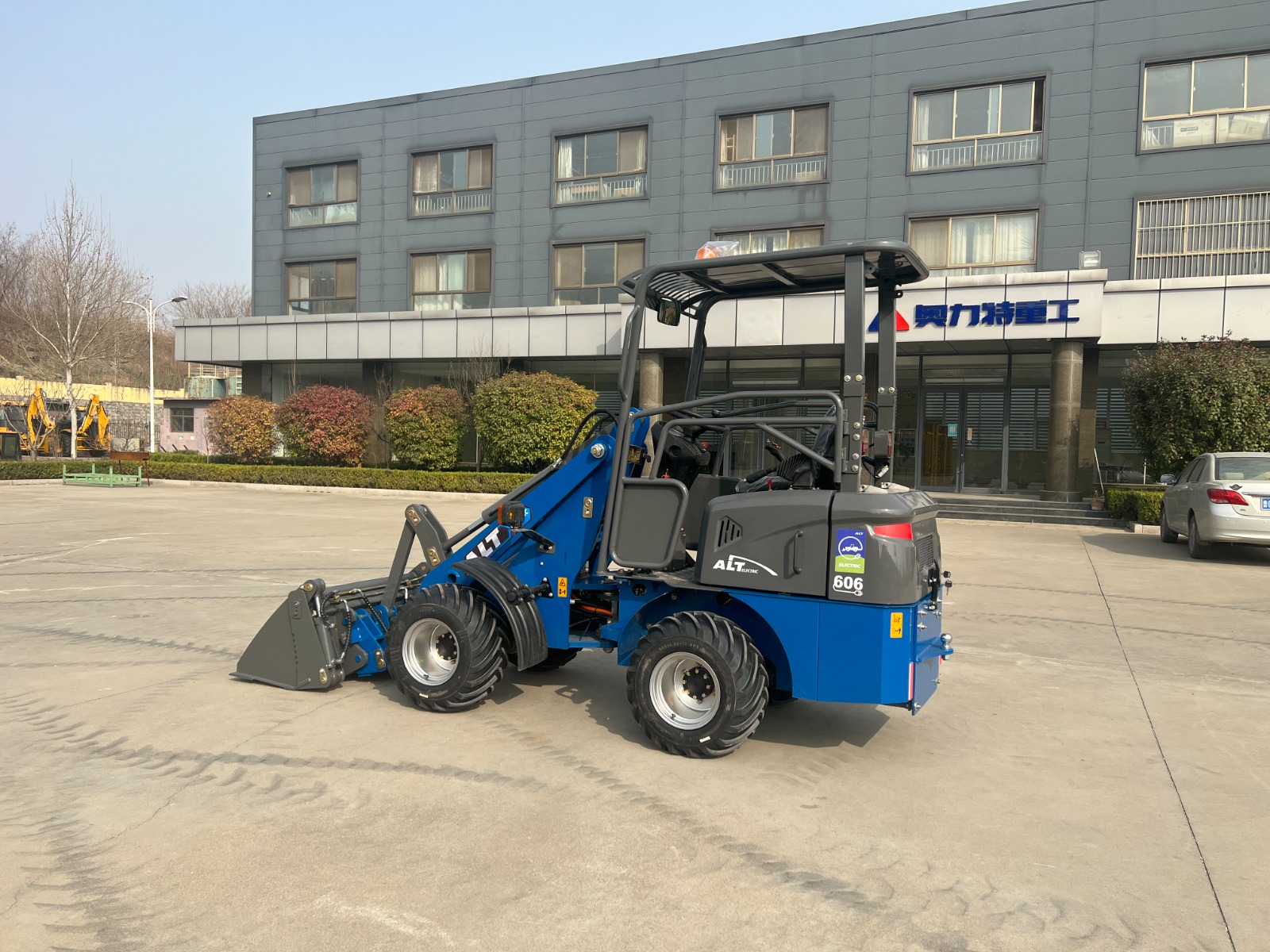

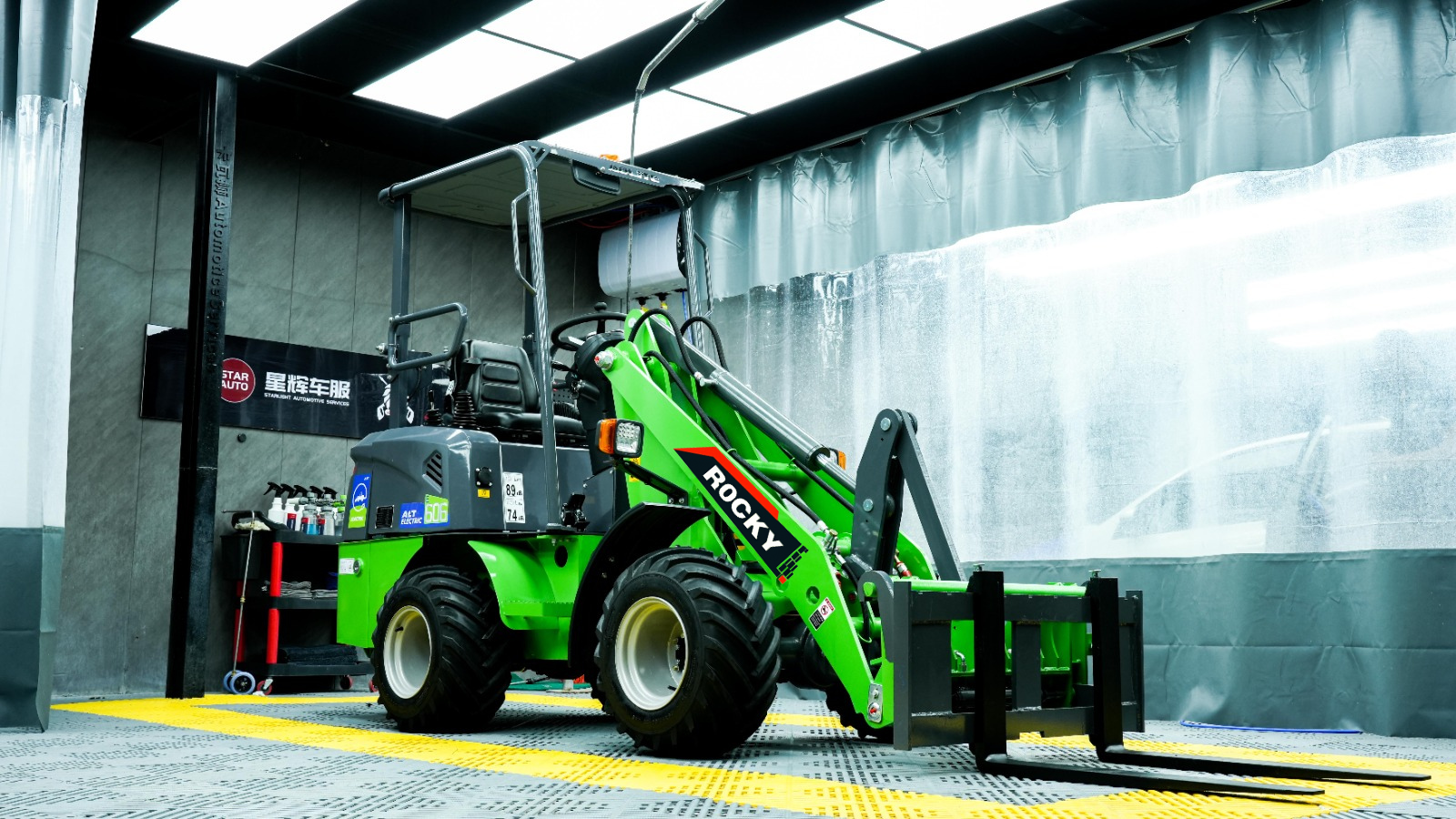

606 Electric Loader - ( Kode : 606 )
| RATED LOAD | 650KG |
| OVERALL WEIGHT | 2050KG |
| BUCKET CAPACITY | 0.25M3 |
| Wheel Thread | 945mm |
| Min. Ground Clearance | 200mm |
| Battery Model | 3-EVF-200 |
| Battery Type | Lead-acid maintenance free type |
| Battery Quantity | 12 |
| Battery Capacity | 14.4kw |
| Rated Voltage | 72v |
| Charging Time | 8h |
| Walking System Voltage | 72v |
| Walking System Power | 4*2kw |
| Motor Quantity | 2 |
| Tyre Model | 26x12.00-12 |
| Working Brake | Drum oil brake |
| Parking Brake | Drum handbrake |
| Rated Load | 650kg |
| Overall Weight | 2050kg |
| Bucket Capacity | 0.25M3 |
| Max. Steering Angle | 455 |
| Min. Steering Radius | 2050mm |
| Amplitude Of The Rear Axle | 19 |
| Total Time | 8s |
| Working Time | 6h |
| Working Speed | low speed 10 high speed 20 km/h |
| Dumping Height | 2170mm |
| Lifting Height | 3330mm |
| Overall Dimension | 3810*1260*2270 mm |
| Dumping Distance | 406mm |
| Bucket Width | 1130mm |
| Wheel Base | 1380mm |
