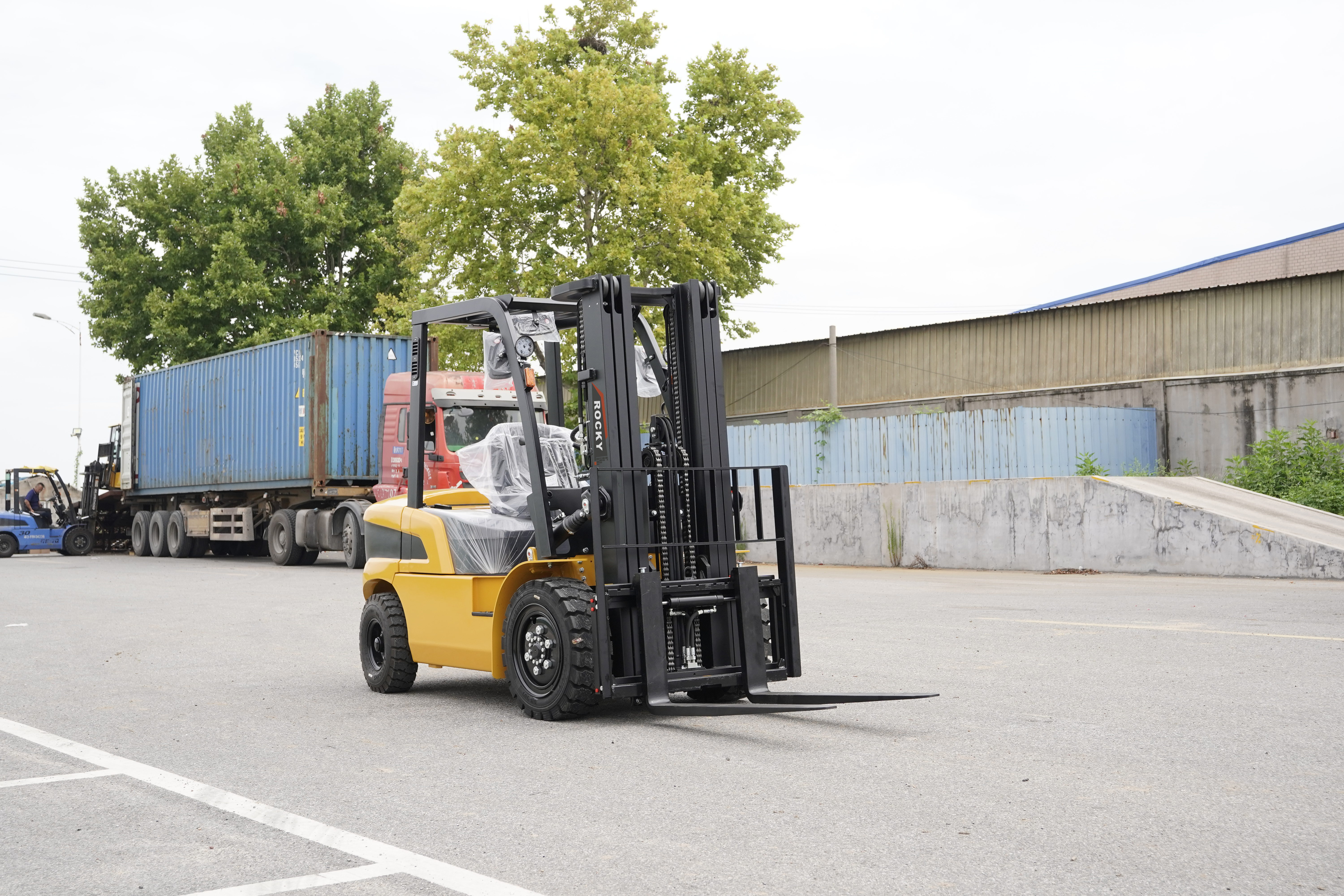

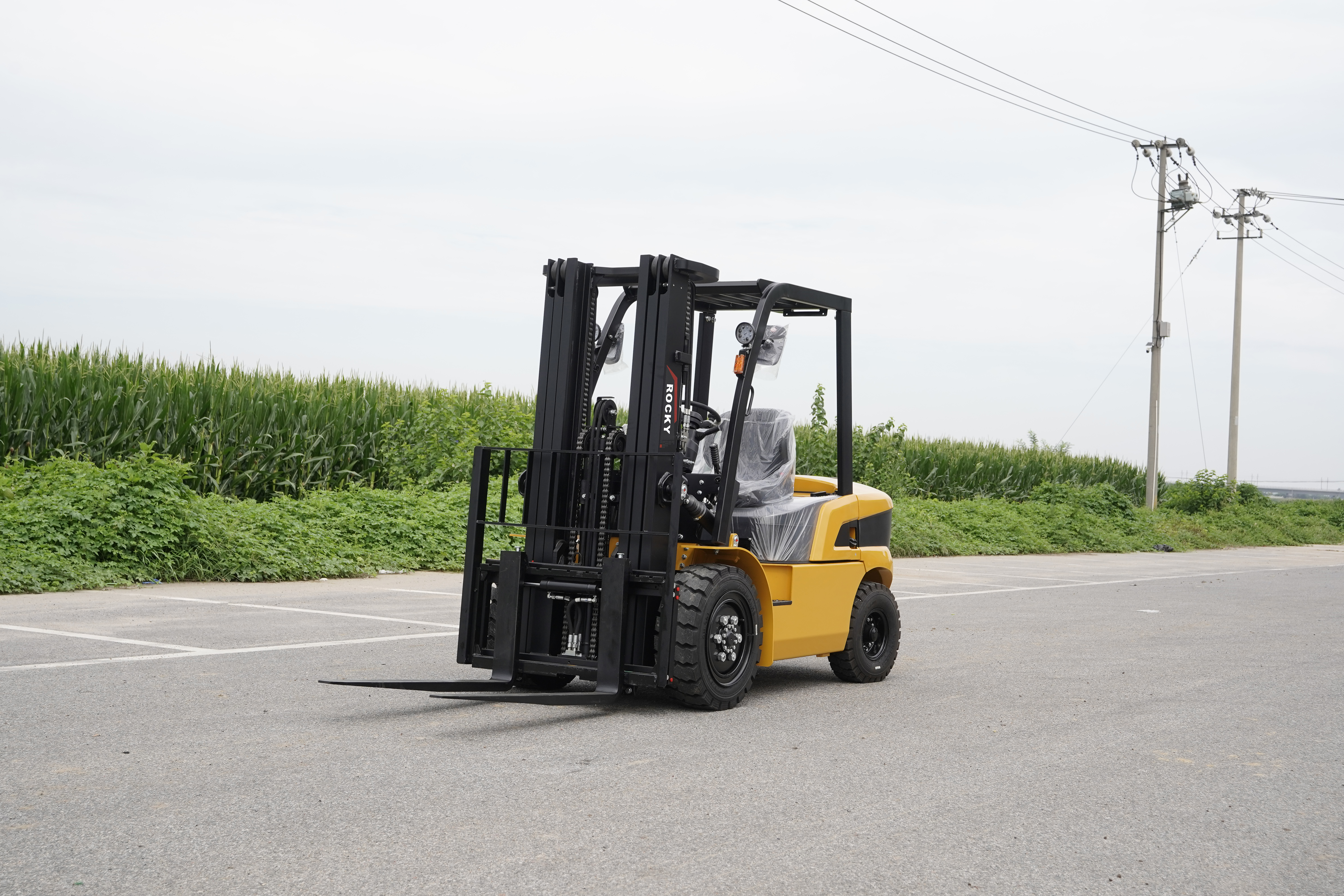

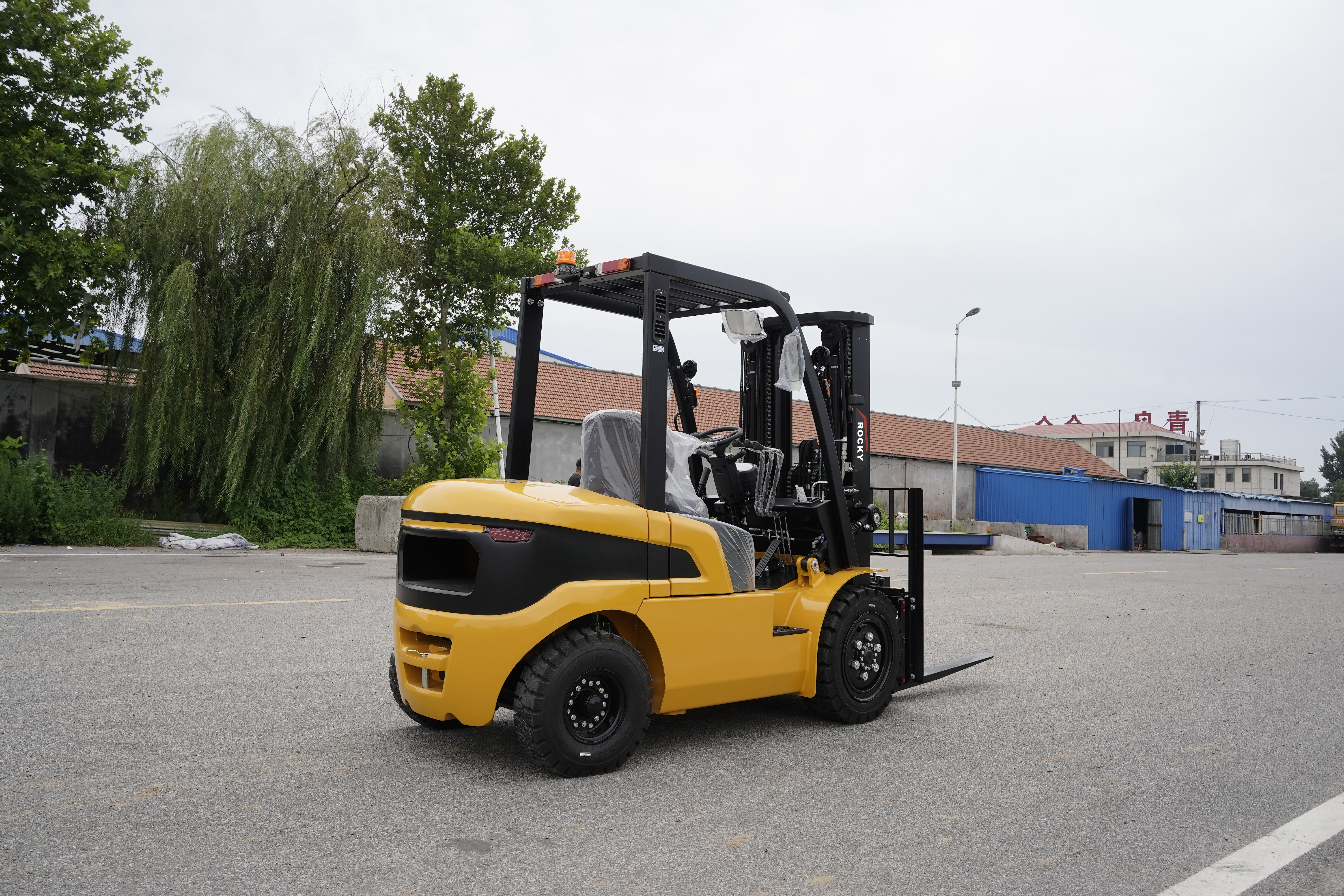

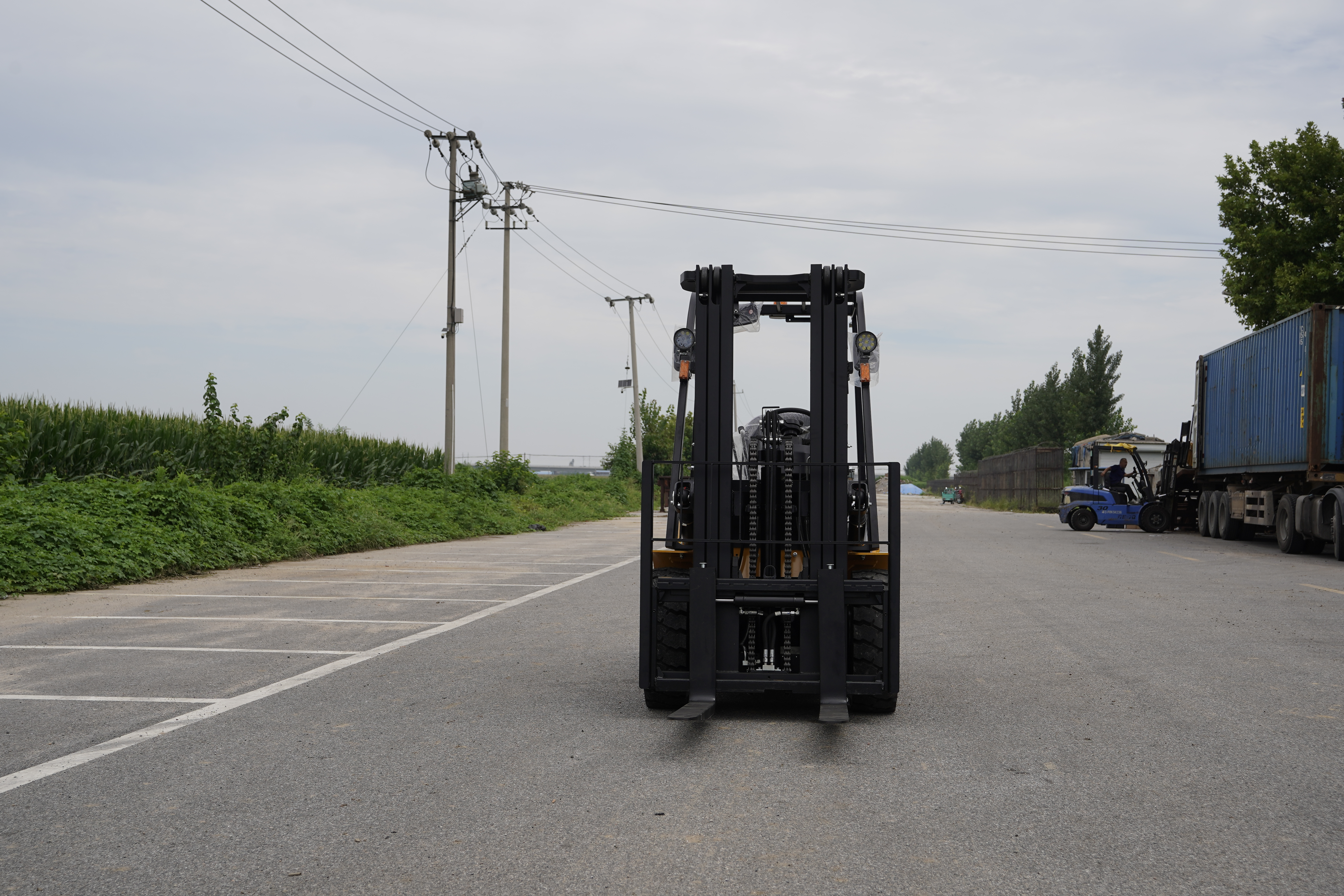

CPD30 Forklift - ( Kode : CPD30 )
| RATED LIFTING LOAD | 3000KG |
| LOAD CENTER DISTANCE | 500mm |
| FREE LIFTING HEIGHT | 160mm |
| Tire Size (Rear) | 6.5-10-10PR |
| Min. Turning Radius (Outer side) | 2400mm |
| Min. Right Angle Aisle Width | 4260mm |
| Fork Size (L*W*Thickness) | 1070*125*45mm |
| Max. Working Speed (Full-load/No-load) | 18/19 km/h |
| Max. Lifting Speed (Full-load/No-load) | 440/480 mm/s |
| Max. Gradeability (Full-load/No-load) | 15/20 % |
| Forklift Weight | 4250kg |
| Engine Model | Quanchai4C2-50V32 , QuanchaiC2-50C41 |
| Rated Lifting Load | 3000kg |
| Load Center Distance | 500mm |
| Free Lifting Height | 160mm |
| Overall Length (With fork / Without fork) | 3752/2682mm |
| Width | 1225mm |
| Overhead Guard Height | 2090mm |
| Wheelbase | 1700mm |
| Min. Ground Clearance | 135mm |
| Mast Tilt Angle (Front/Rear) | 6/12 % |
| Tire Size (Front) | 28*9-15-14PR |
