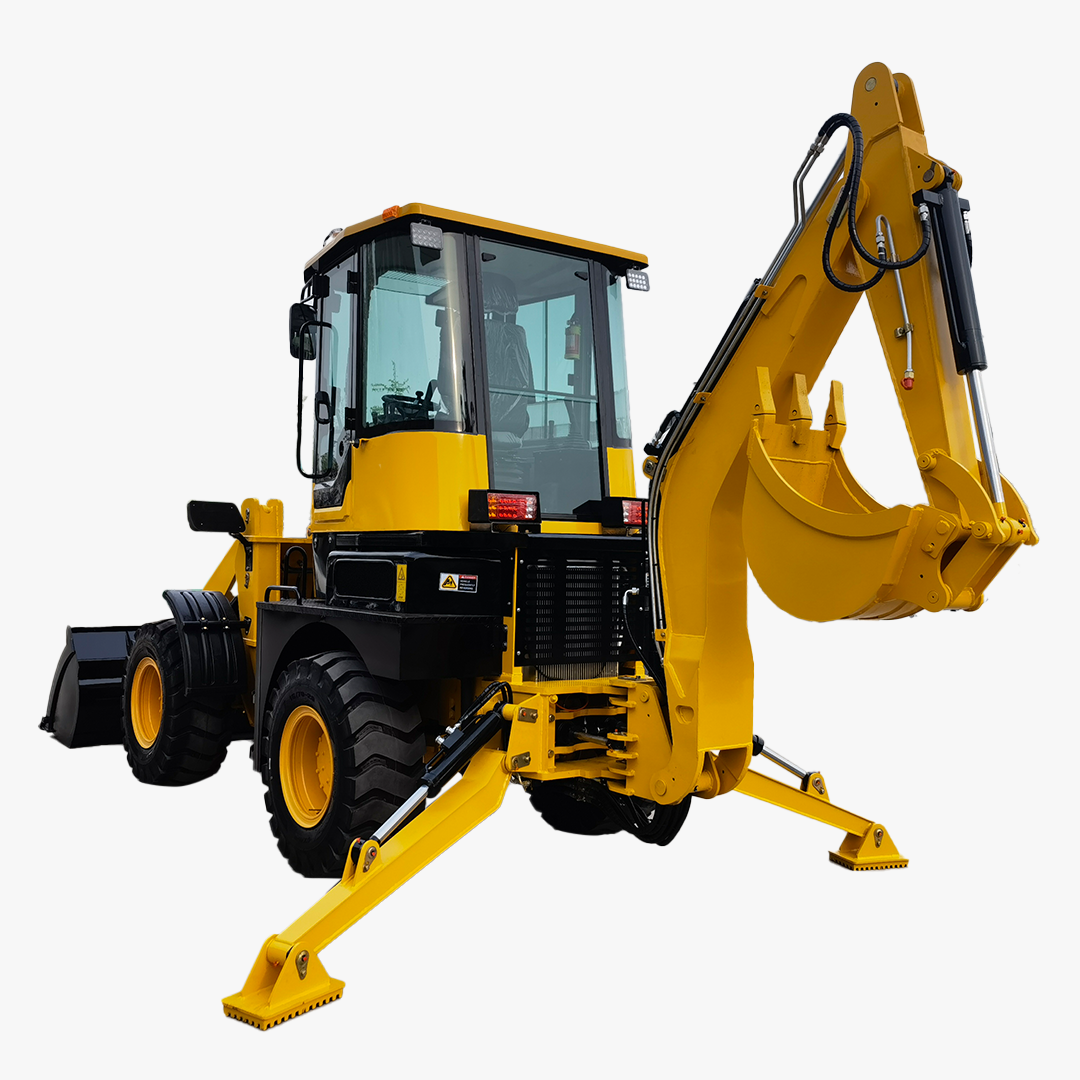

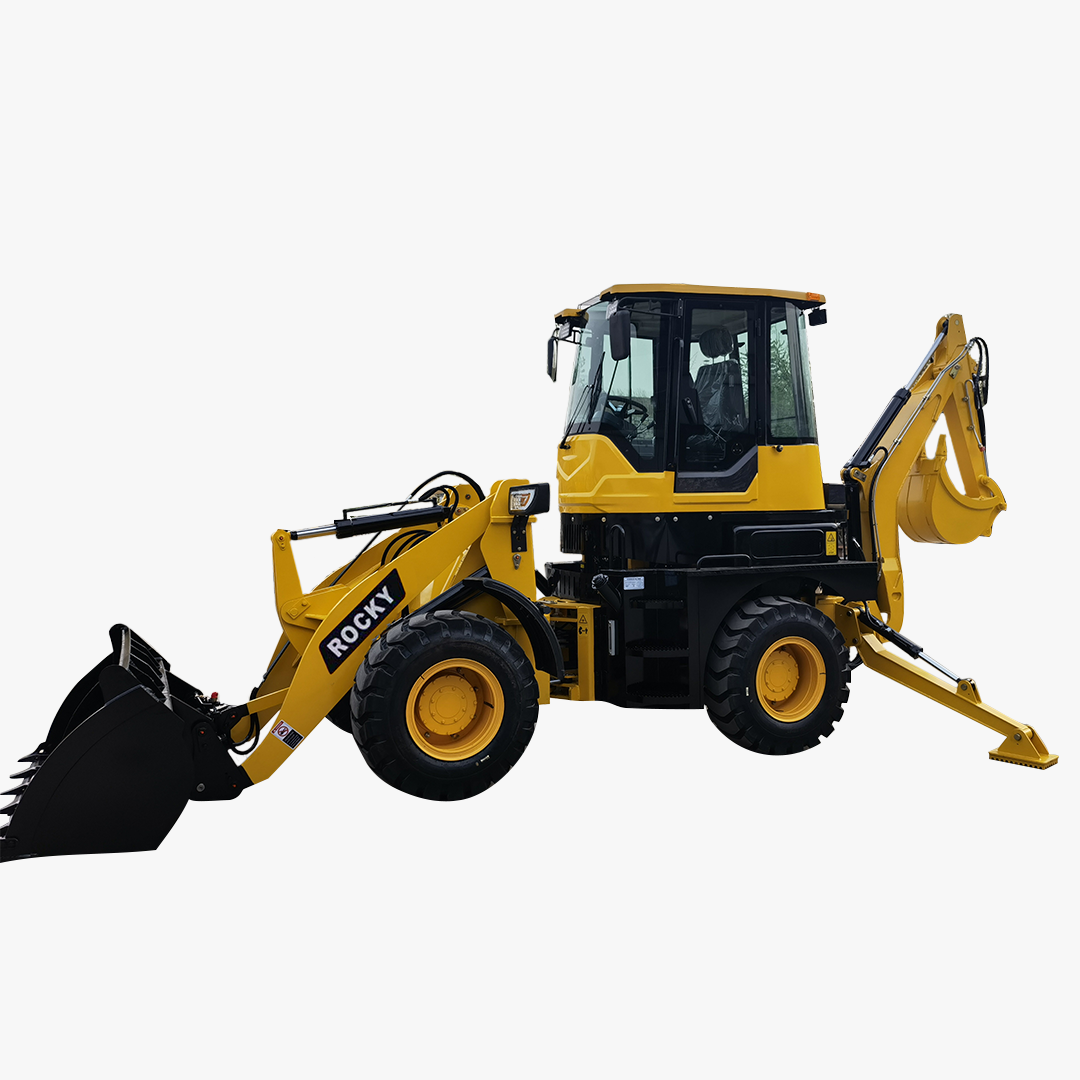

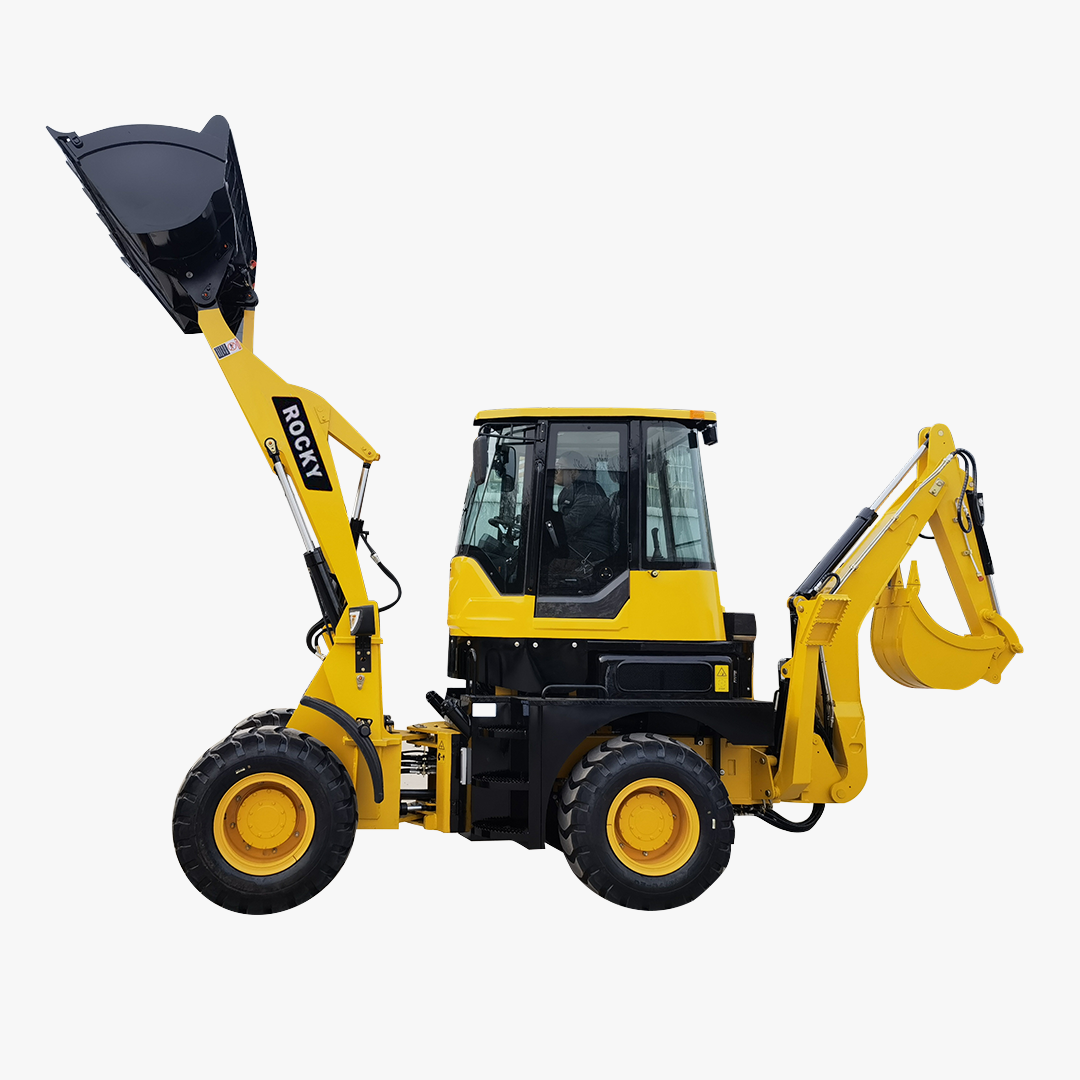

Rocky Loader QZ28-20 - ( Kode : QZ28-20 )
| TOTAL WEIGHT | 5500 KG |
| RATED POWER | 65 KW |
| RATED SPEED | 2400r/min |
| ENGINE | YUNNEI YN33GBZ Turbo |
| Overall Operating Weight | 5500 KG |
| L x W x H | 6950 x 2200 x 3100 mm |
| Min. Ground Clearance | 300 mm |
| Bucket Capacity | 1 m3 |
| Loading Lifting Capacity | 2000 KG |
| Bucket Dumping Height | 3300 mm |
| Backhoe Capacity (Width) | 0.2 m3 |
| Max. Digging Depth | 2700 mm |
| ENGINE | |
| Model | YUNNEI YN33GBZ Turbo |
| Type | In Line, Direct Injection, Four-Stroke, Water Cooling |
| Rated Power | 65 KW |
| Rated Speed | 2400 RPM |
| STEERING SYSTEM | |
| Steering Angle | ±36° |
| Min. turning radius | 4800 mm |
| Pressure of the system | 12 Mpa |
| AXLE | |
| Model | Wheel Hub Reducer Drive Axle |
| Drive type | Four Wheel Drive |
| TRANSMISSION SYSTEM | |
| Torque Converter | |
| Model | YJ265 |
| Cooling Method | Oil-Cooling Pressure Circulation |
| Gearbox | |
| Type | Power Transmission |
| Gears | Two Gears Ahead, Two Gears Astern |
| Max. Speed | 28 Km/h |
| Tyre | |
| Model | 16/70-20 |
| Front Tyre Pressure | 0.22 Mpa |
| Back Tyre Pressure | 0.22 Mpa |
| BRAKE SYSTEM | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-Regulation | |
| Self-Balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| HYDRAULIC SYSTEM | |
| Pressure | 22 Mpa |
