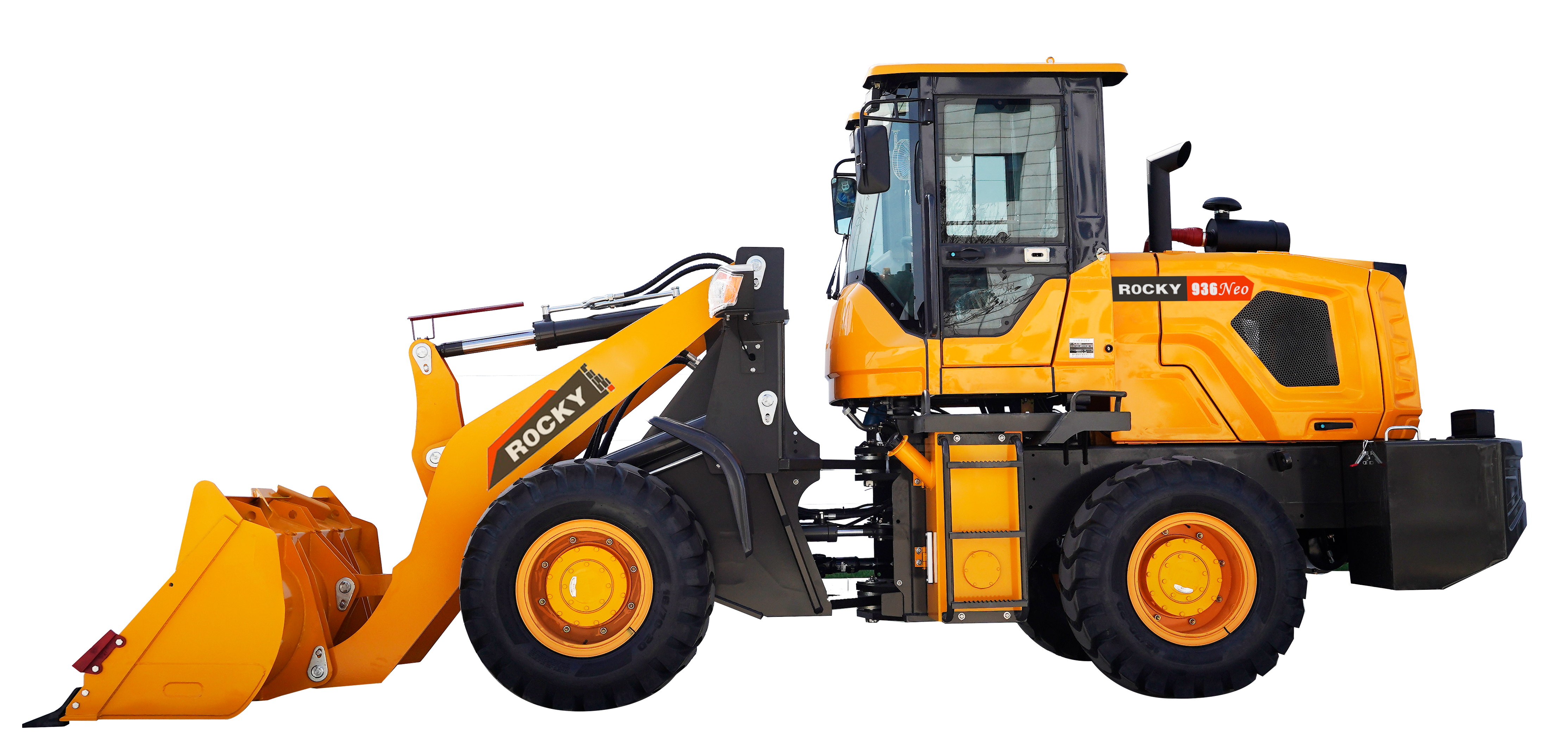

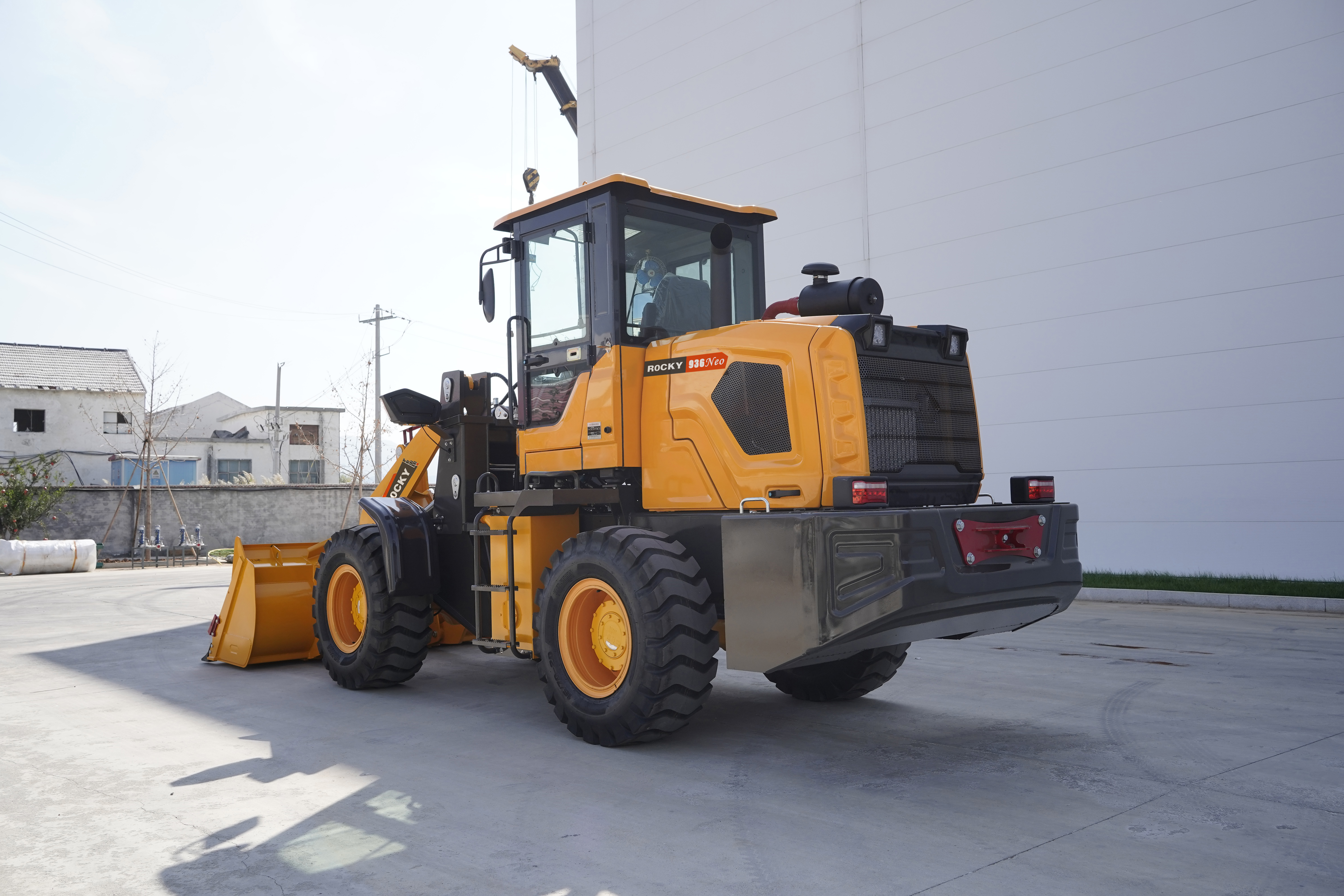

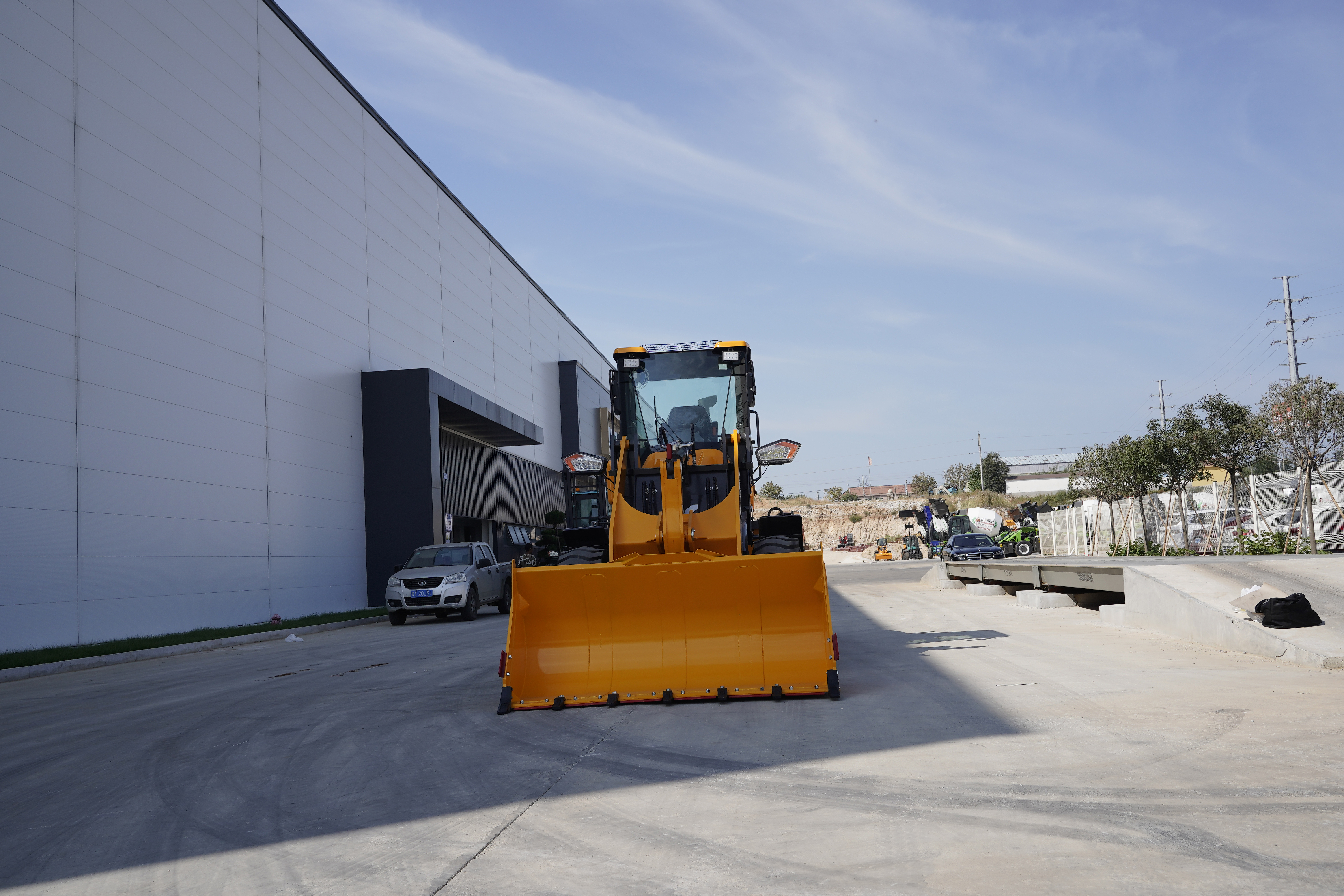

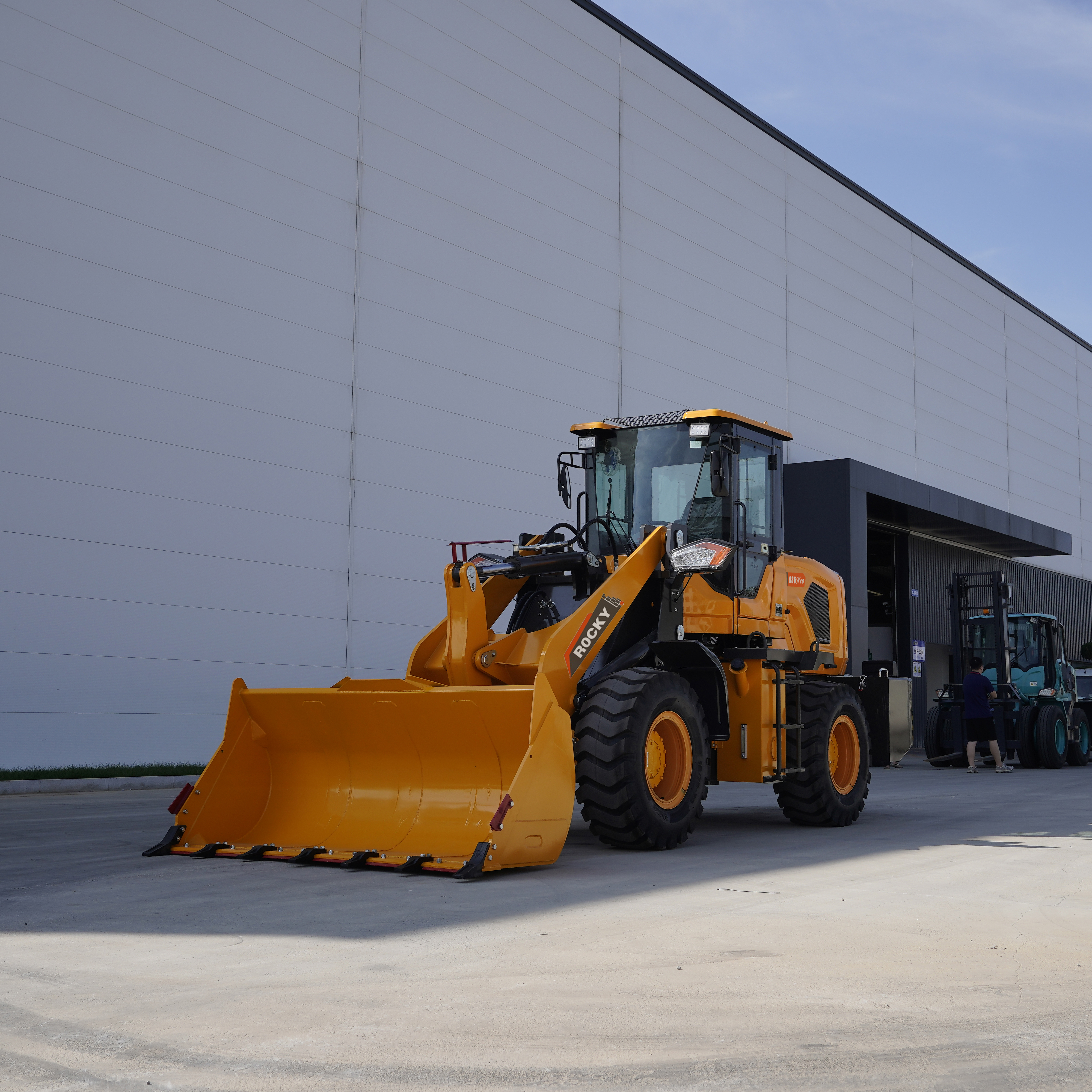

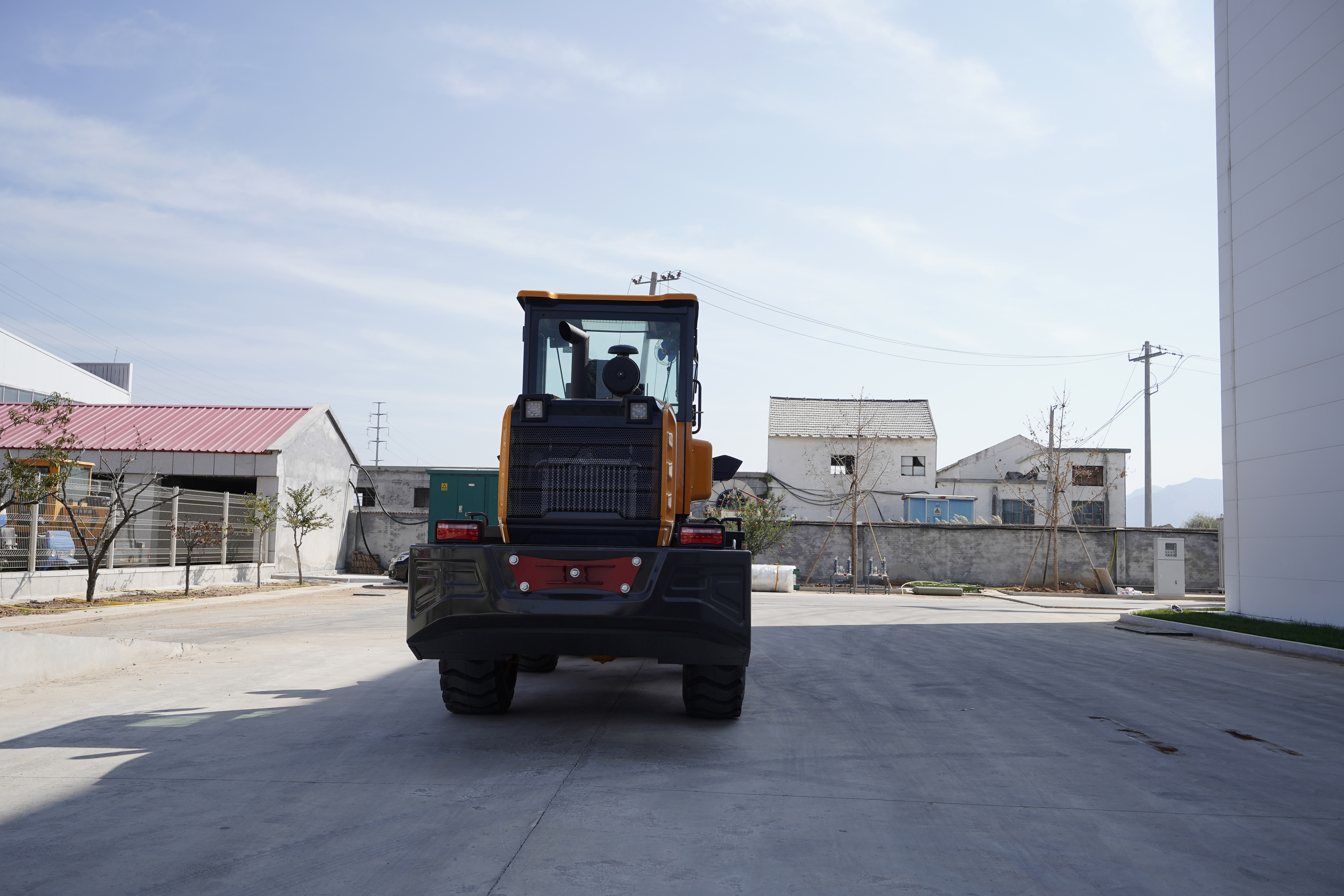

936 NEO WHEEL LOADER - ( Kode : 936 )
| TOTAL WIGHT | 1.5M3 |
| RATED LOAD | 2500KG |
| RATED POWER | 85KW/92KW |
| TRANSMISSION | |
| Type | Hydraulic Torque Converter |
| Pattern | Automatic |
| Gear Shift | Double H/L |
| Axle | AWD, Big Hub Reducer |
| TYRE | |
| Type | 16/70-24 |
| WORKING HYDRAULIC SYSTEMA | |

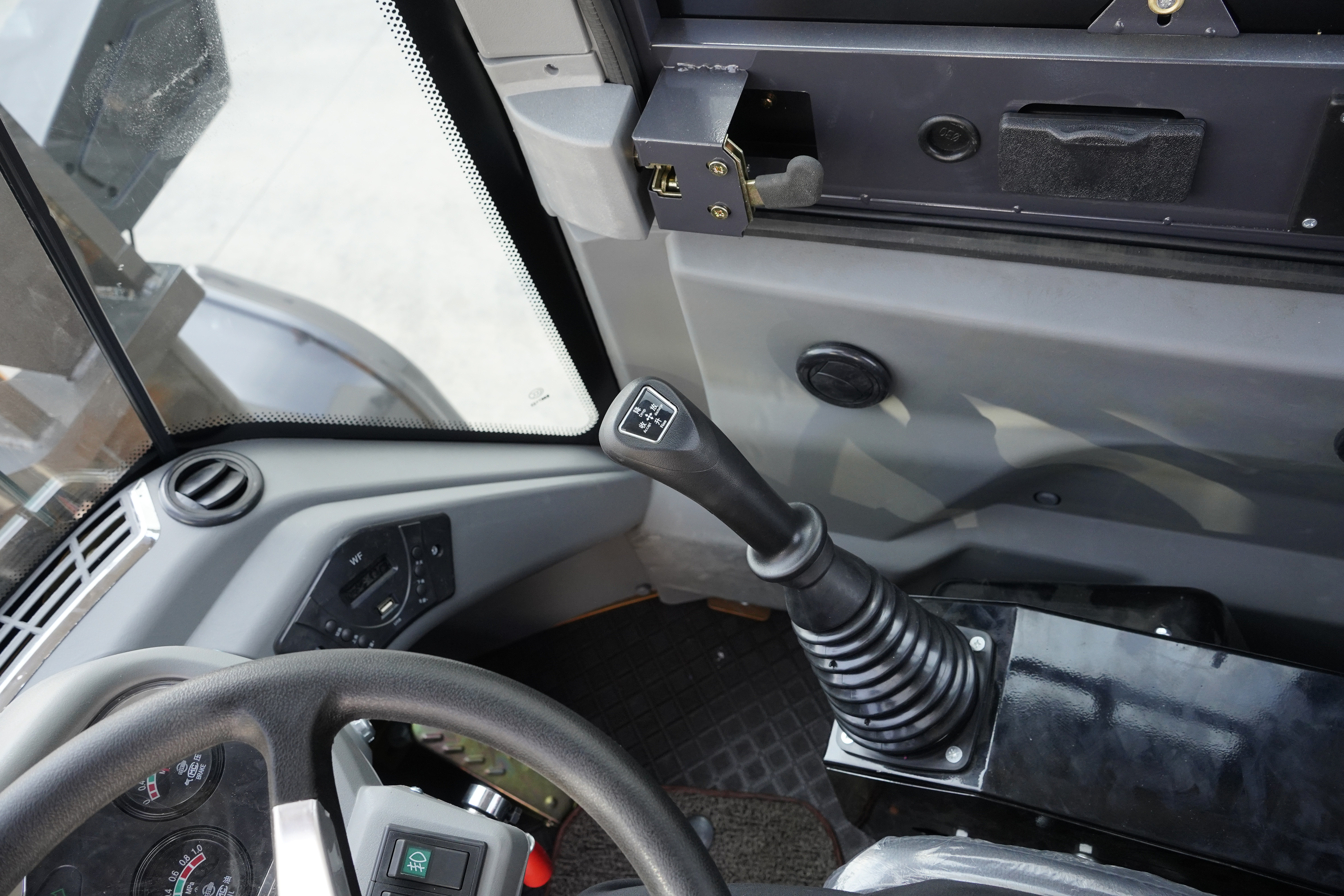

| Operating Type | Joystick |
| Lifting Time | 5s |
| Falling Item | 4s |
| Three Items Total | 11s |
| BRAKING SYSTEM | |
| Service Brake | Air Hydraulic Disc Brake |
| Parking Brake | Hand Brake |
| MAIN DEMENSIONS | |
| Bucket Capacity | 1.5M3 |
| Rated Load | 2500KG |
| Machine Weight | 7300KG |
| Overall Dimension (mm) | 6930x2270x3080 |
| Wheel Base | 2730mm |
| Wheel Track | 1700mm |
| Bucket Width | 2200mm |

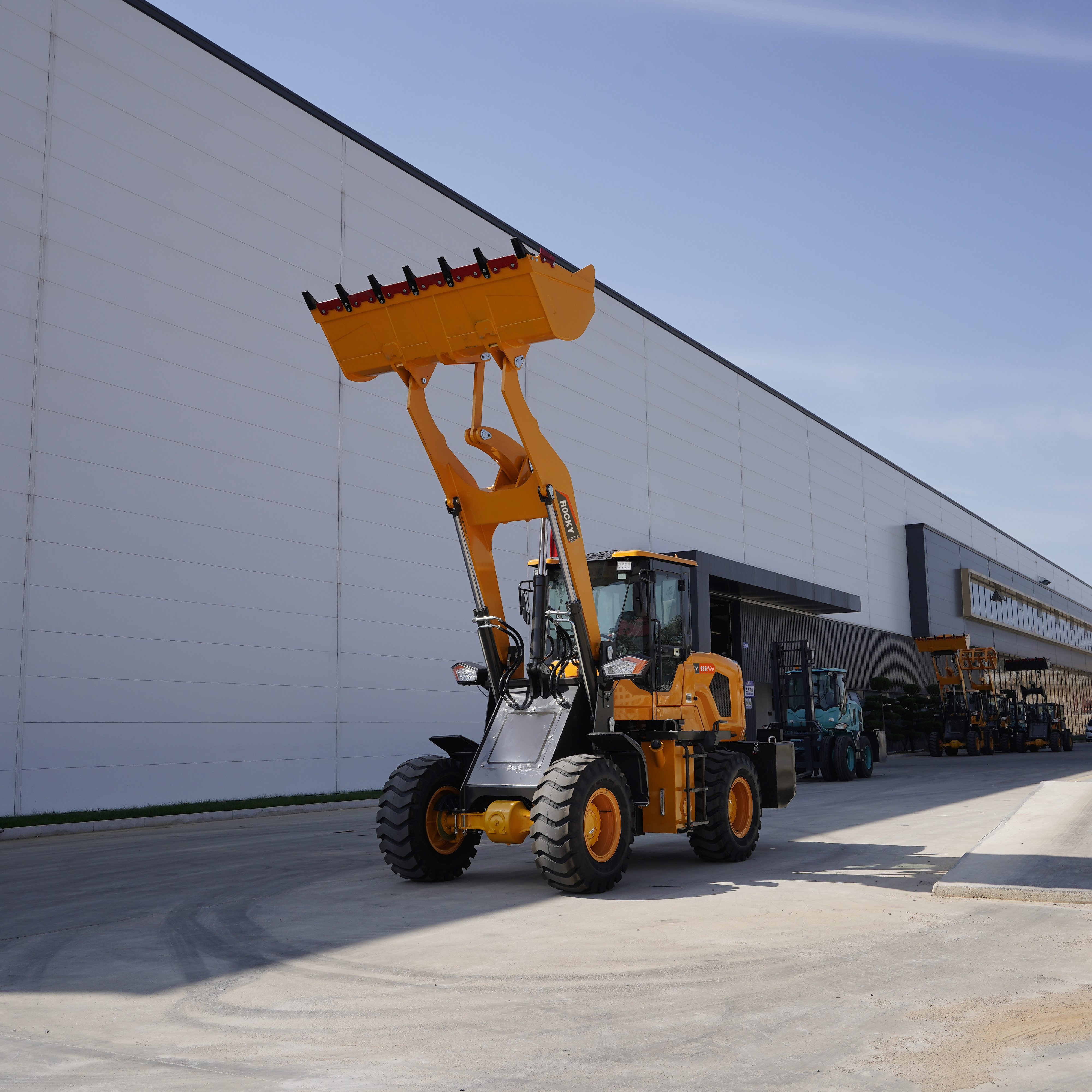

| Max. Dumping Heigh | 3600mm |
| Max. Dumping Distance | 850mm |
| Turning Radius | 6000mm |
| Min. Ground Clearance | 370mm |

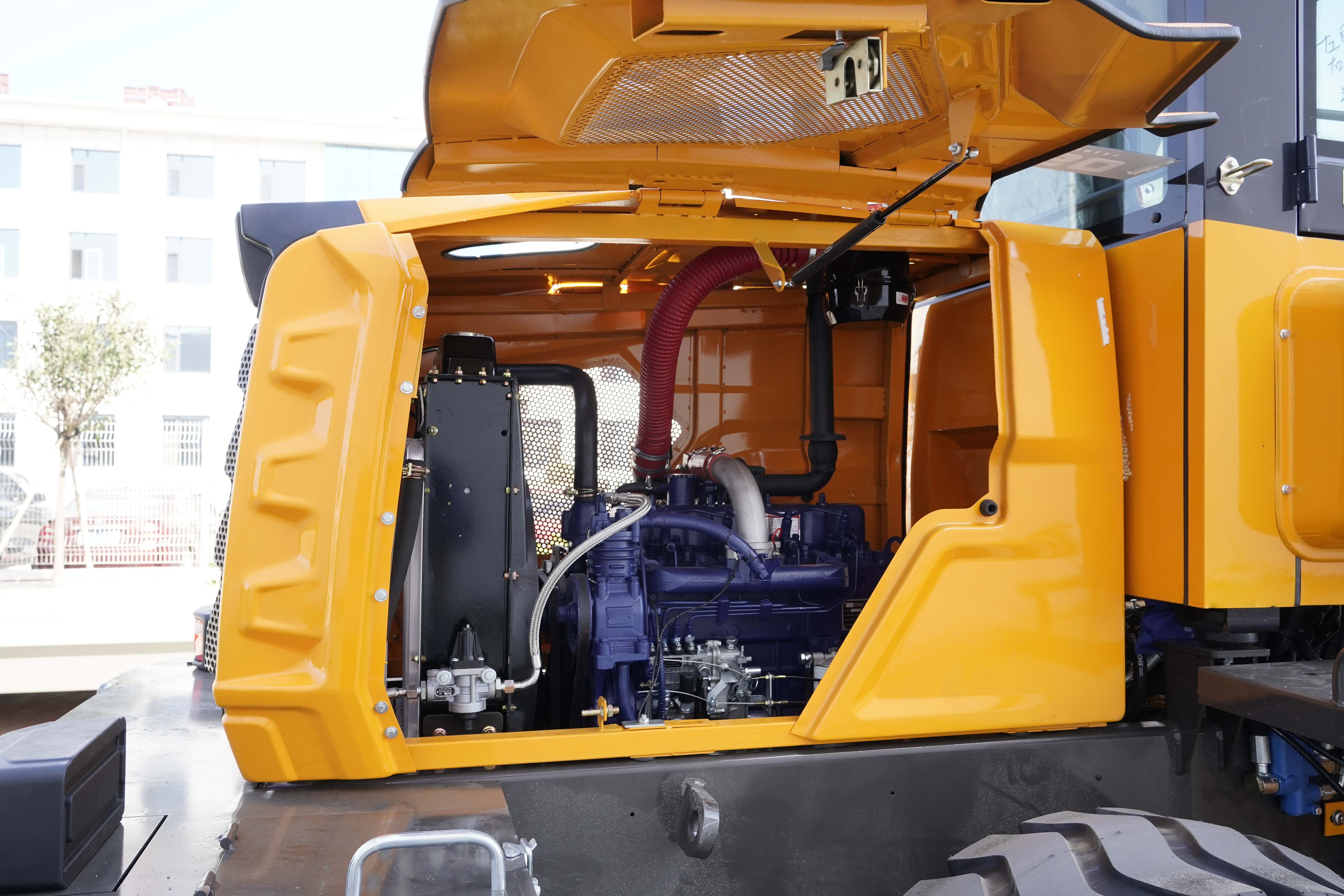

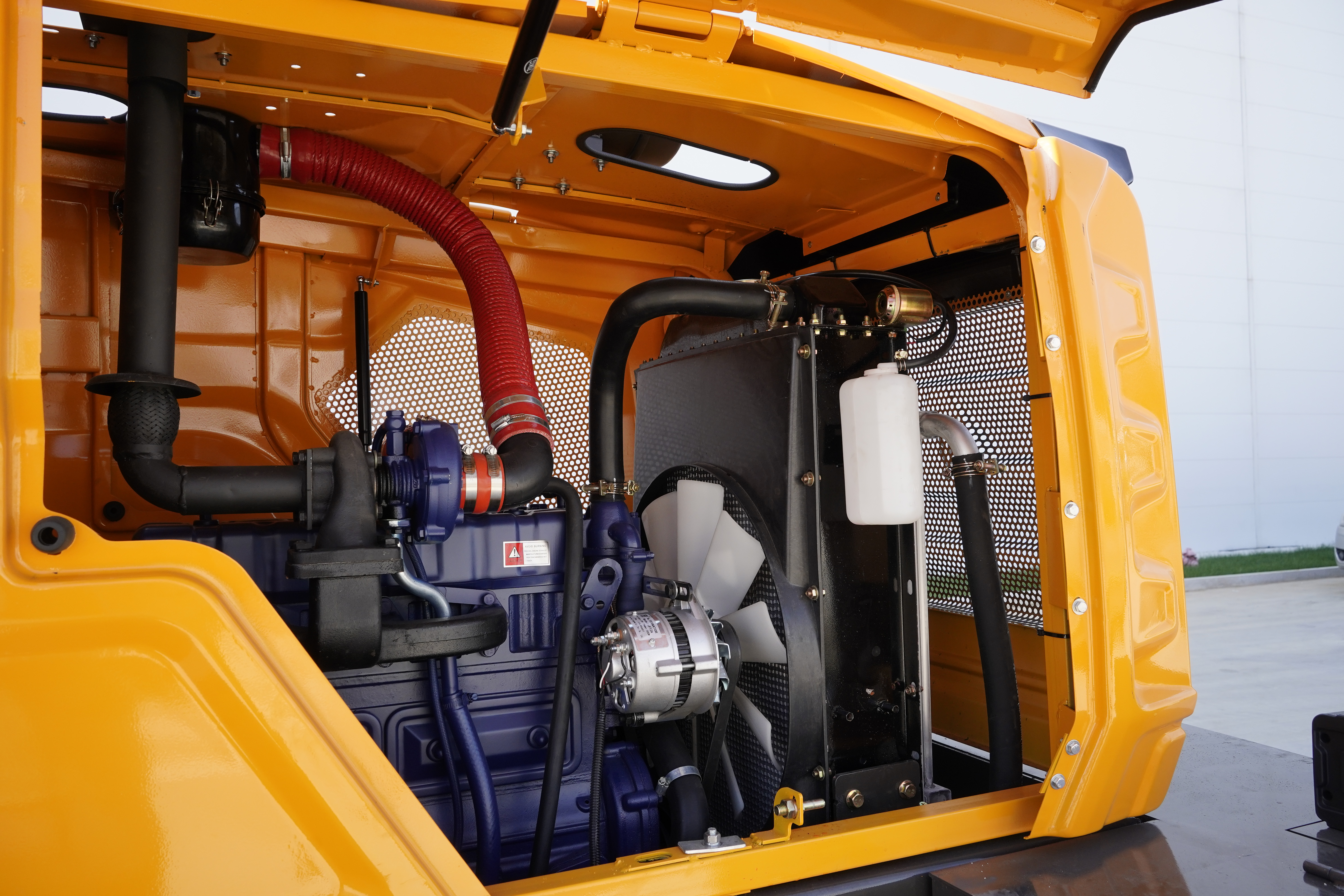

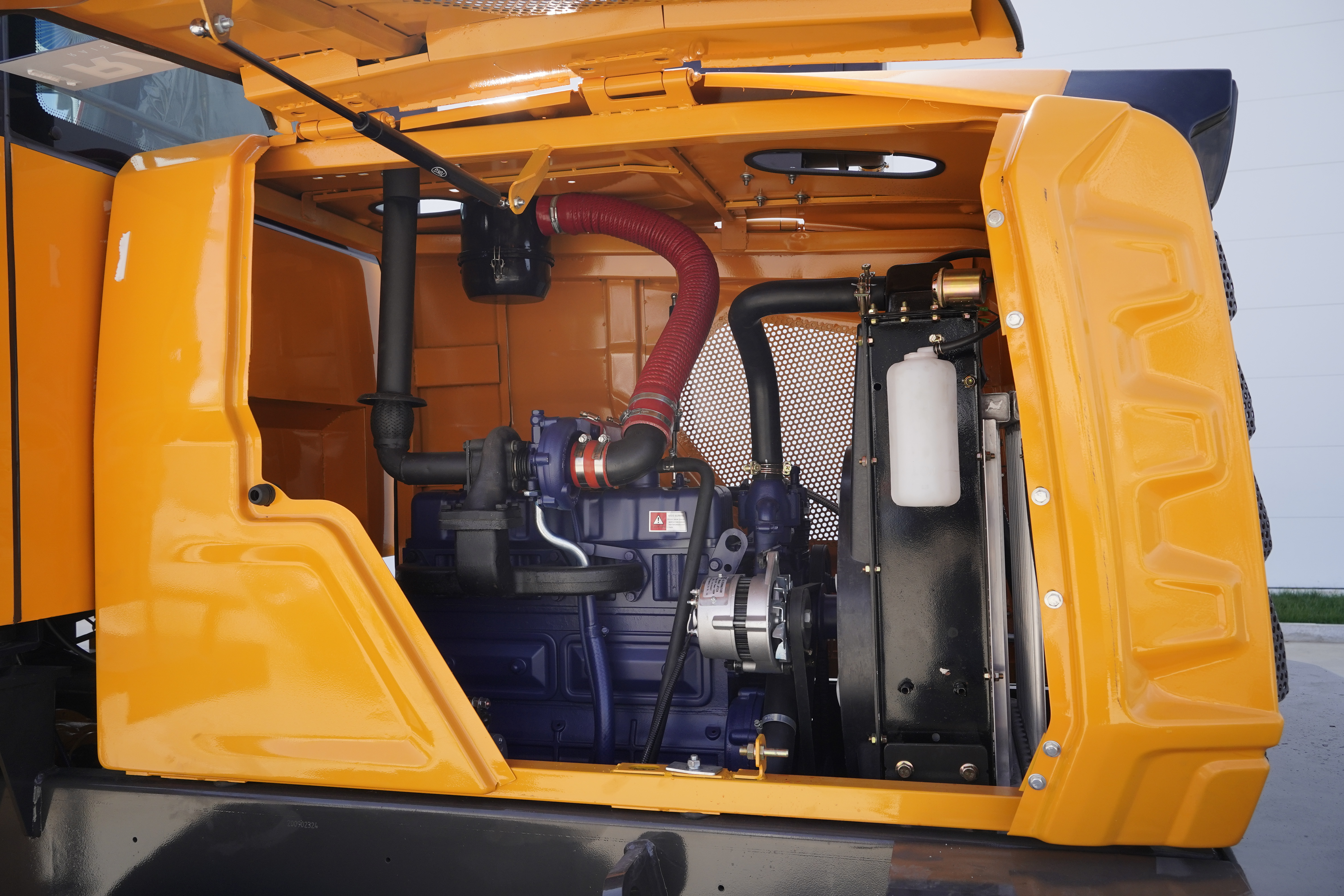

| ENGINE | |
| Model | Yuchai 4105T/Yunnei 4108T |
| Rated Power | 85KW/92KW |
