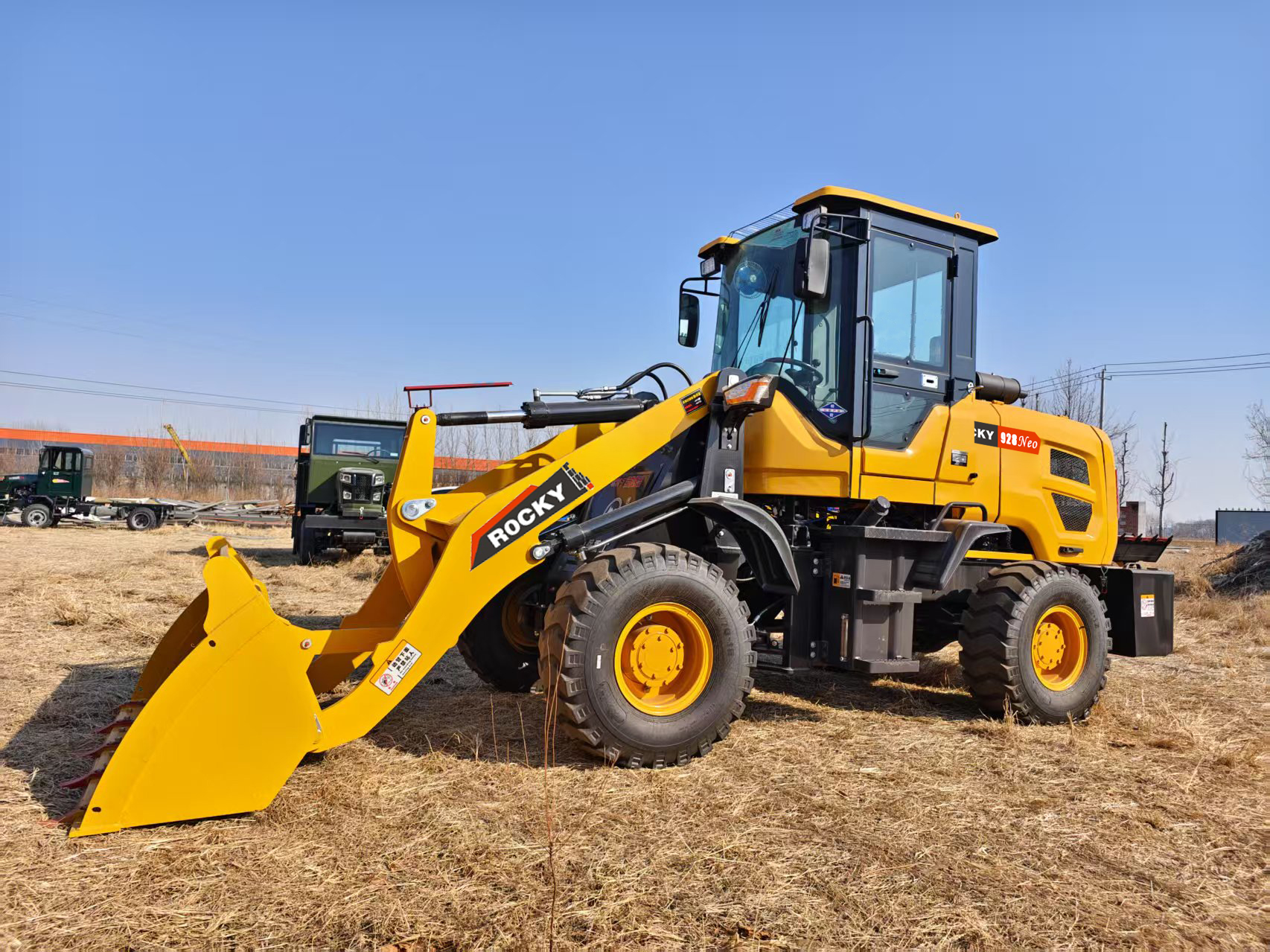

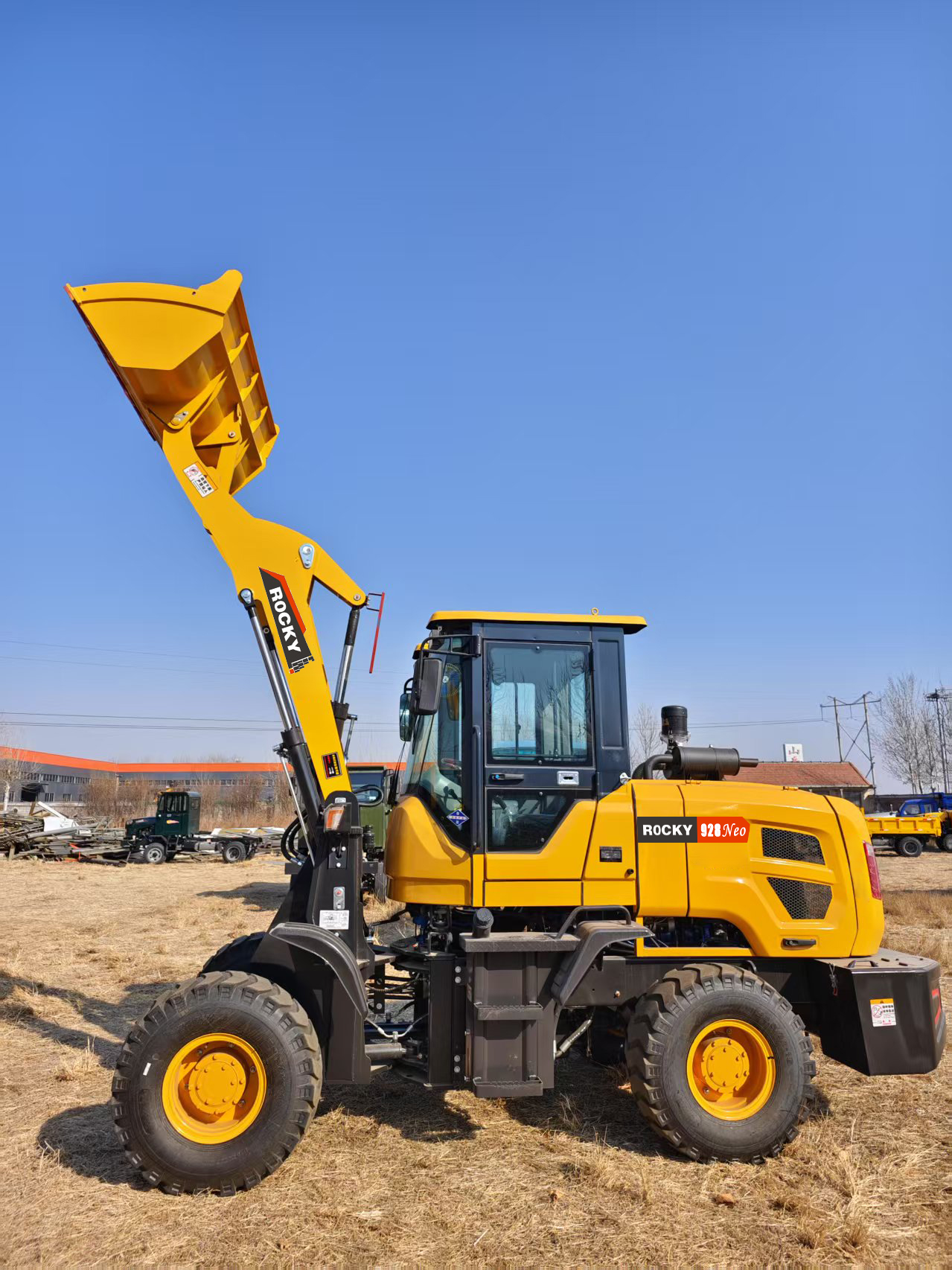

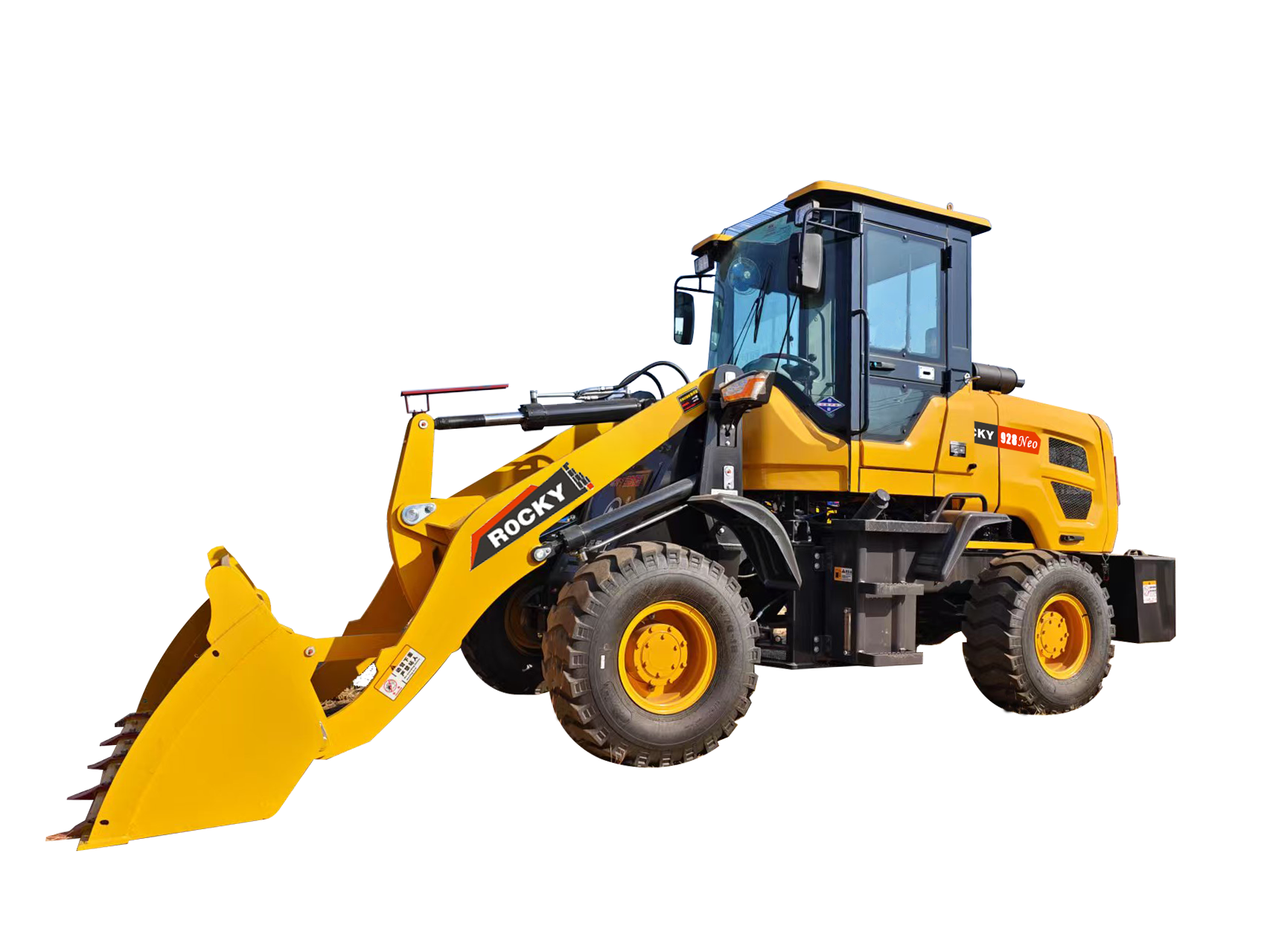

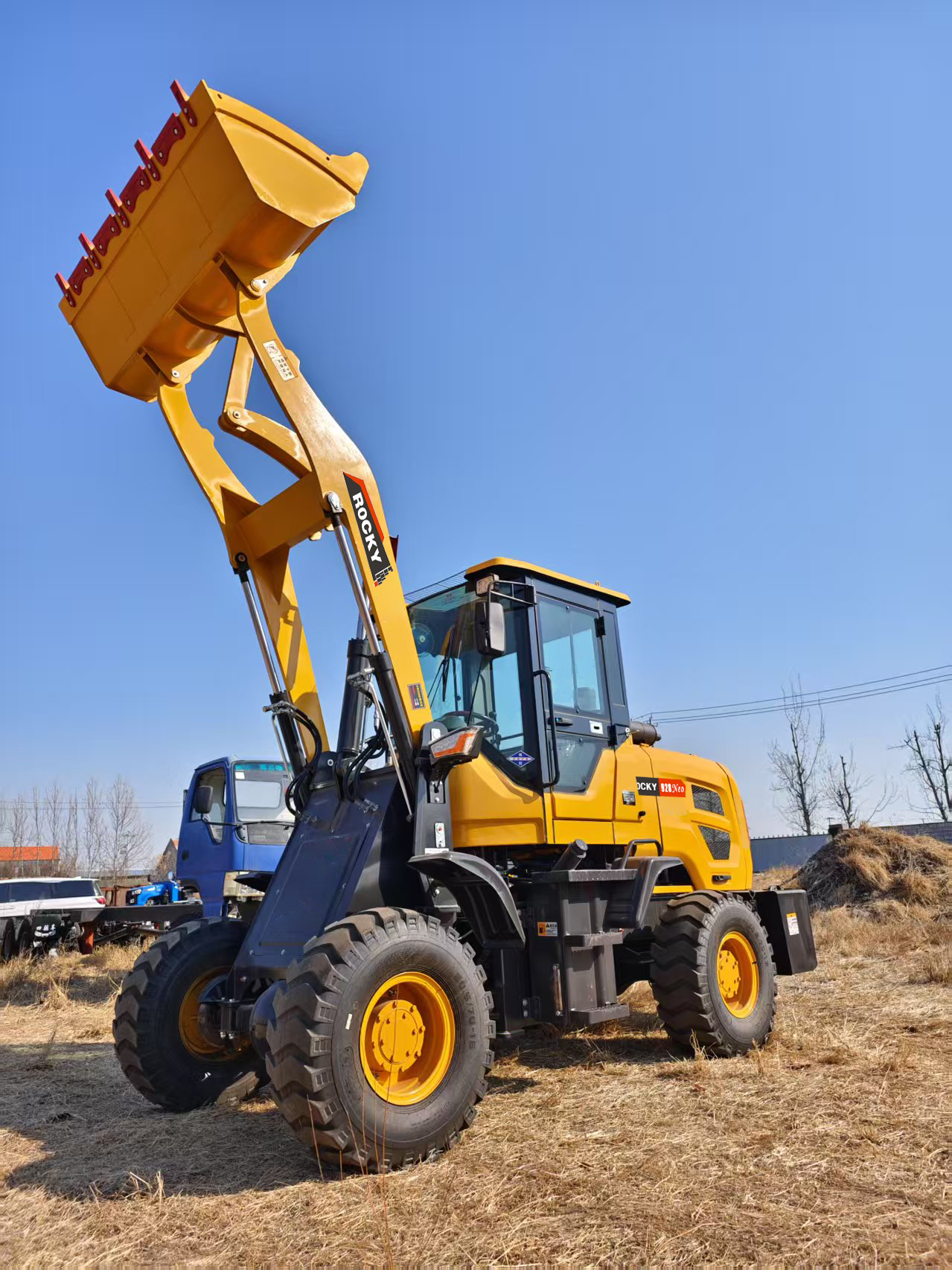

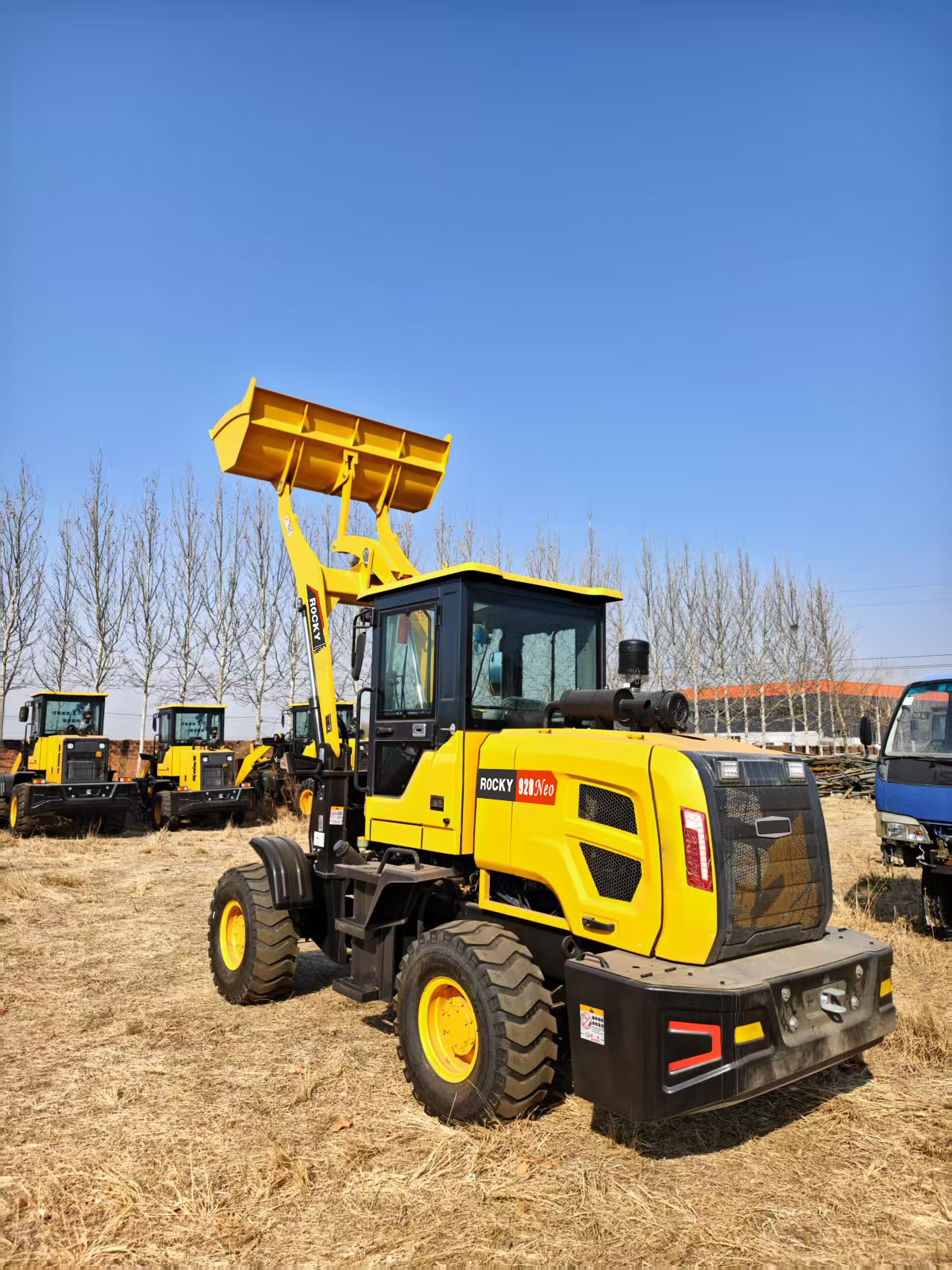

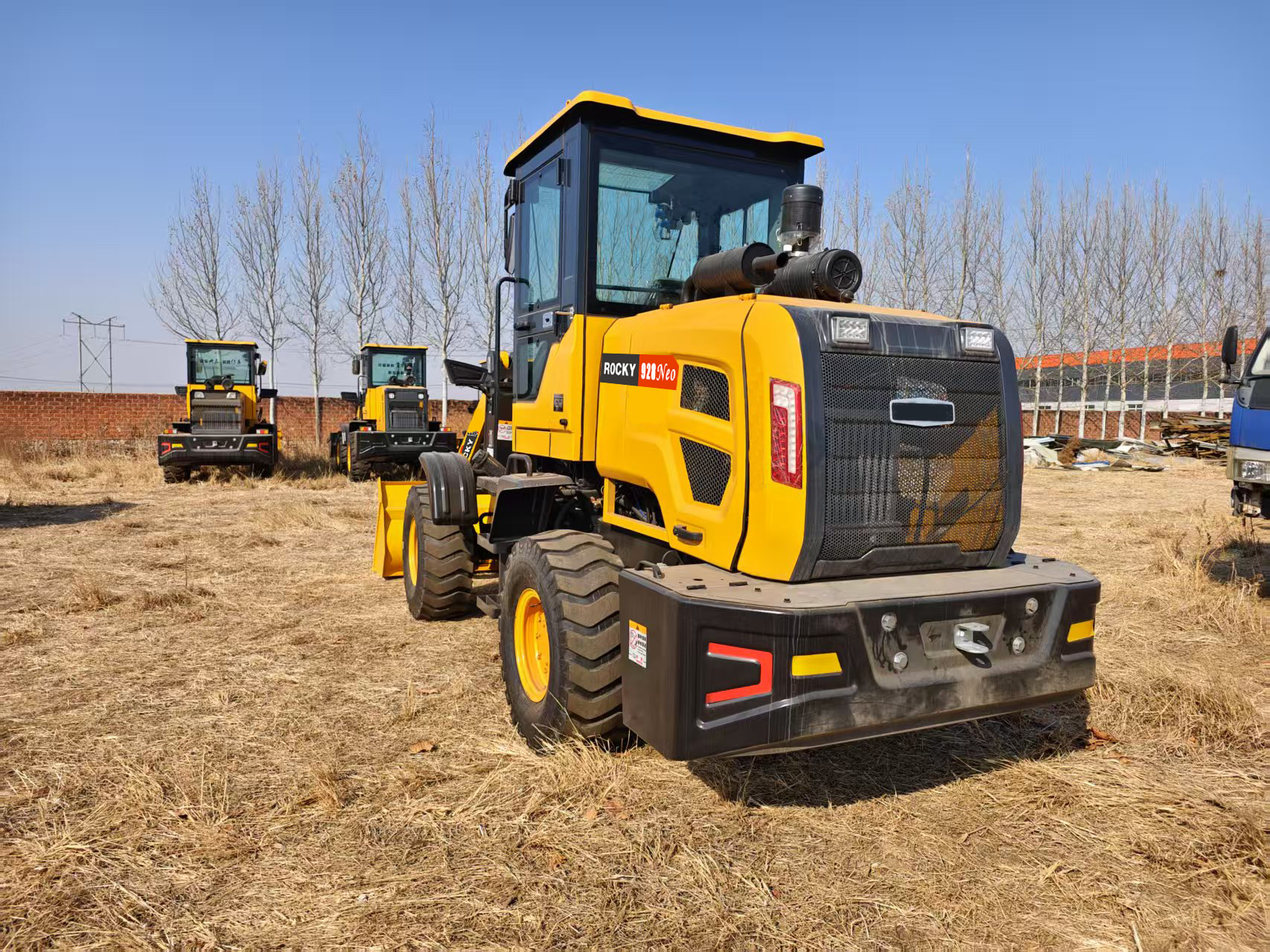

928 NEO WHEEL LOADER - ( Kode : 928 )
| BUCKET CAPACITY | 1M3 |
| RATED LOAD | 1600KG |
| RATED POWER | 58KW |
| TRANSMISSION | |
| Type | Hydraulic Torque Converter |
| Pattern | Automatic |
| Gear Shift | Double H/L |
| Axle | AWD, Big Hub Reducer |

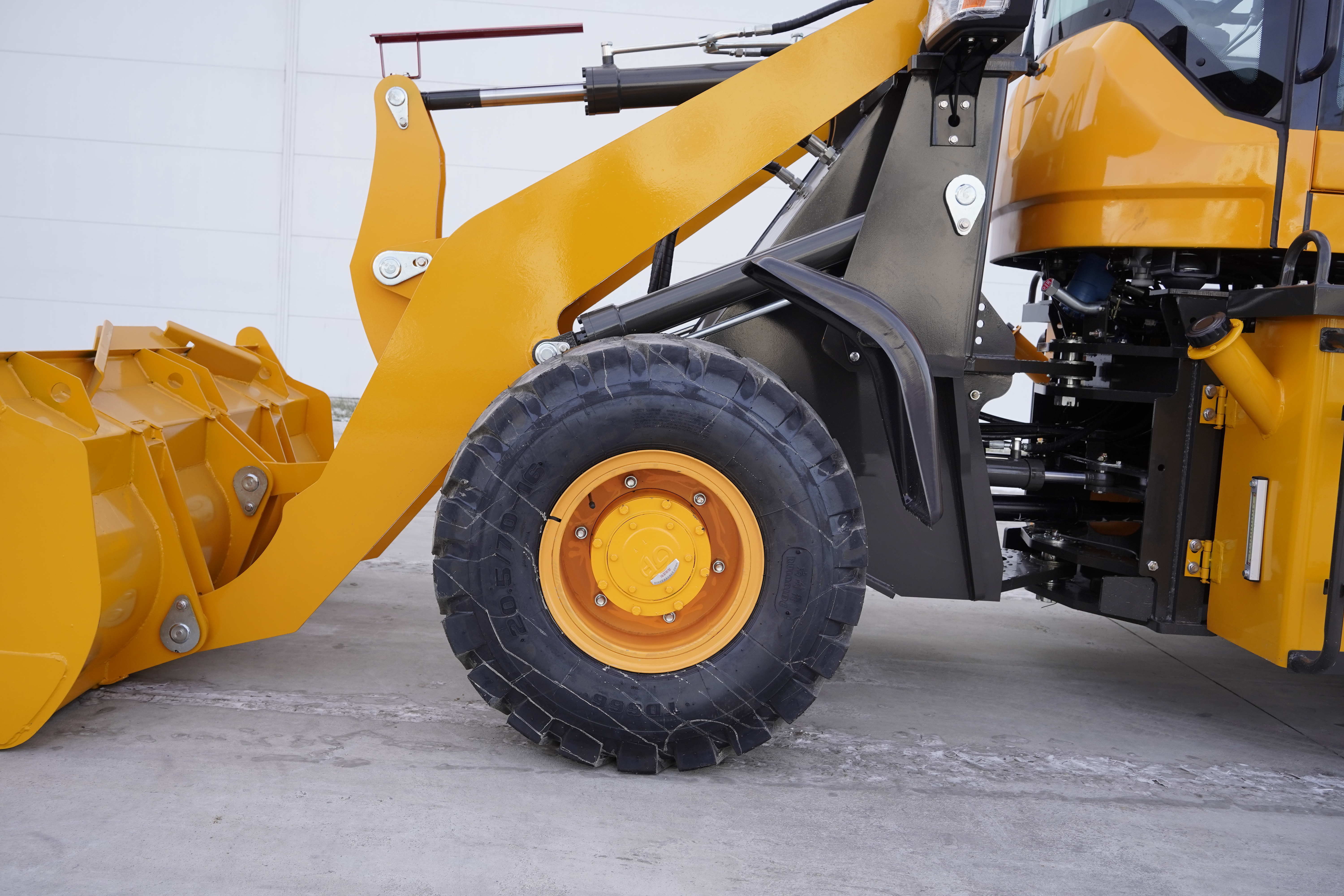

| TYRE | |
| Type | 23.5/70-16 |

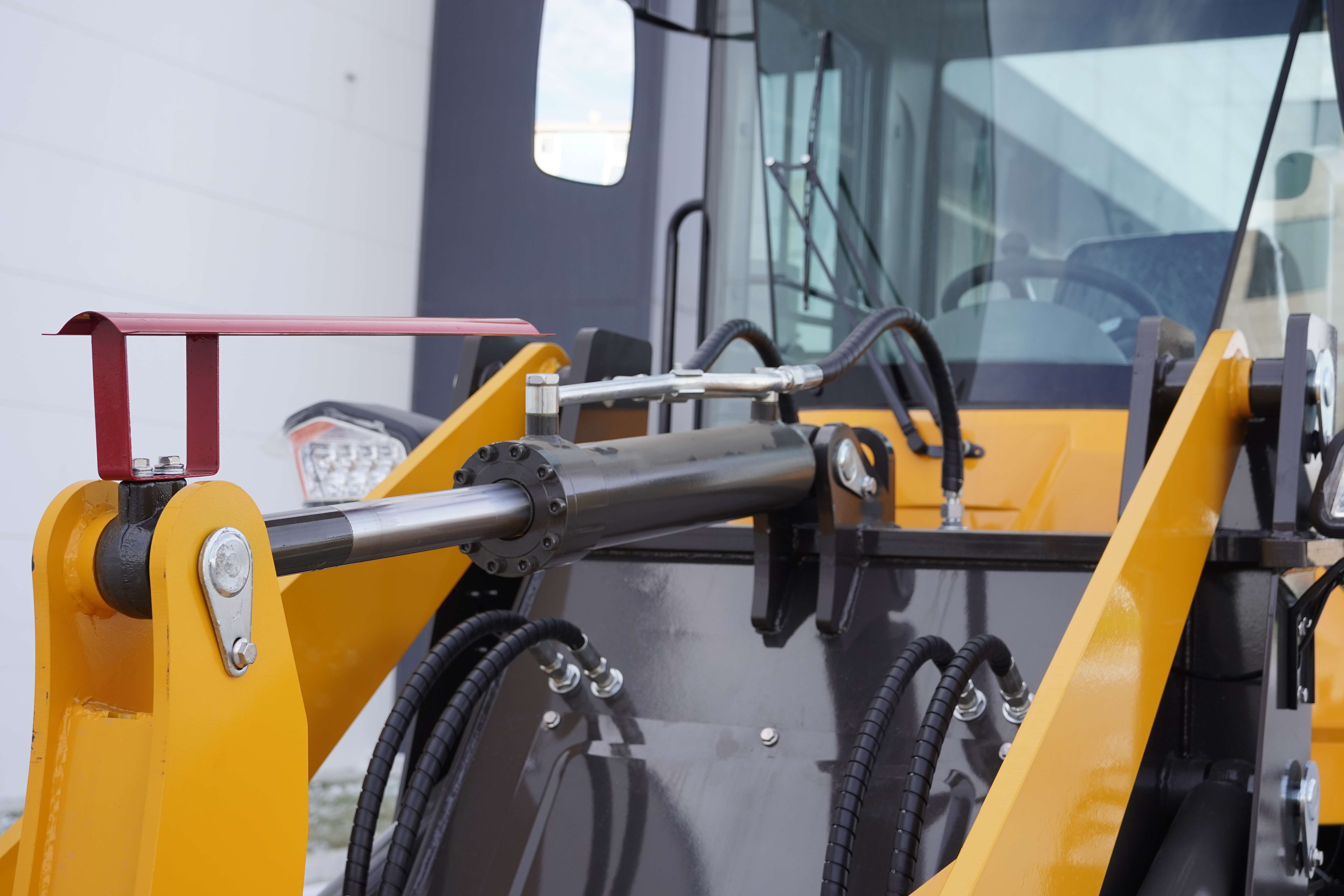

| WORKING HYDRAULIC SYSTEM | |

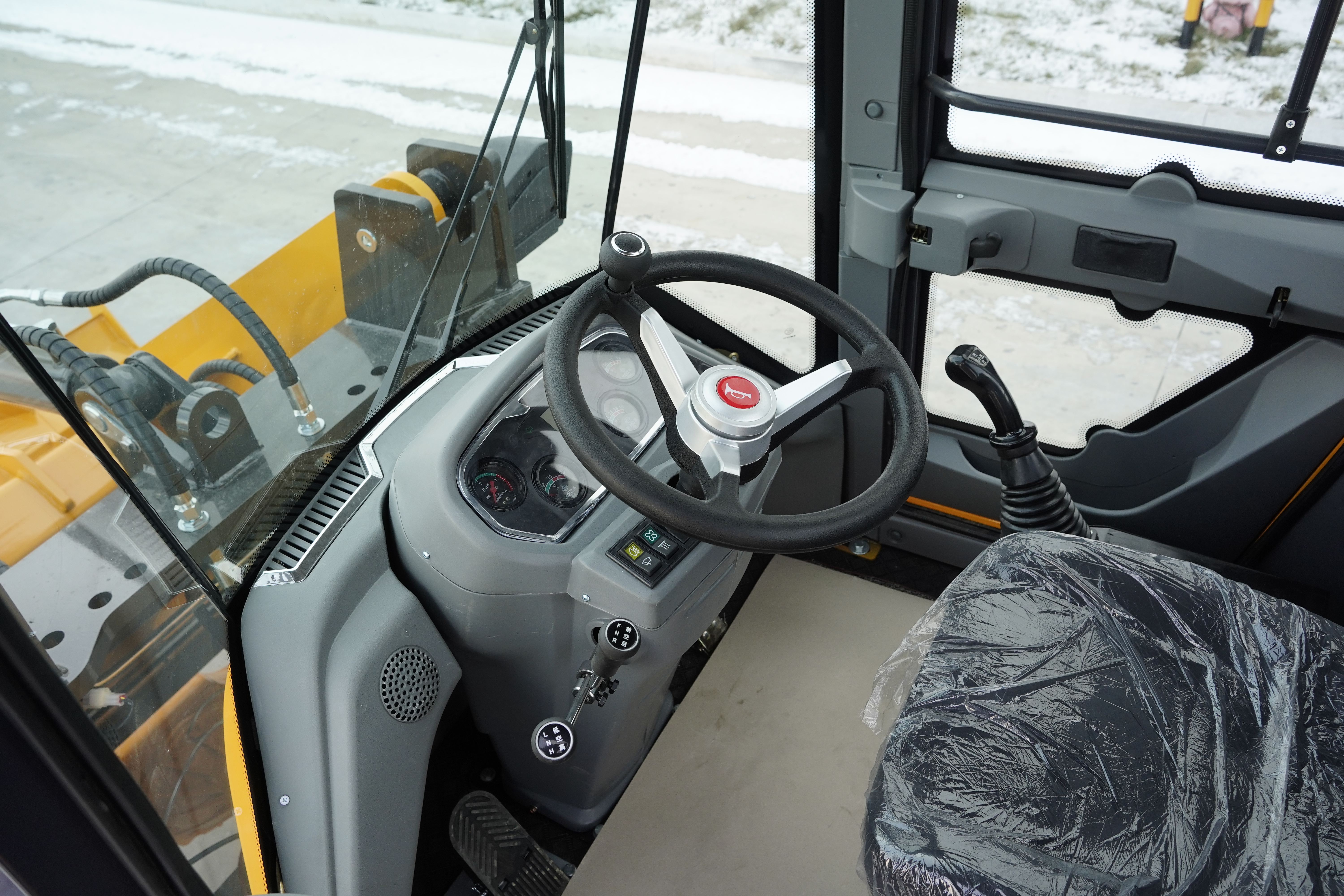

| Operating Type | Joystick |
| Lifting Time | 5s |
| Falling Time | 4s |
| Three Items Total | 11s |
| BRAKING SYSTEM | |
| Service Brake | Air Hydraulic Disc Brake |
| Parking Brake | Hand Brake |
| MAIN DEMENSIONS | |
| Bucket Capacity | 1M3 |
| Rated Load | 1600KG |
| Machine Weight | 3800KG |
| Overall Dimension (mm) | 5100x1800x2750 |
| Wheel Base | 2280mm |
| Wheel Track | 1490mm |
| Bucket Width | 1900mm |
| Max. Dumping Heigh | 3200mm |
| Max. Dumping Distance | 570mm |
| Turning Radius | 4600mm |
| Min. Ground Clearance | 220mm |
| ENGINE | |
| Model | Yunnei 27GBZ |
| Rated Power | 58KW |
