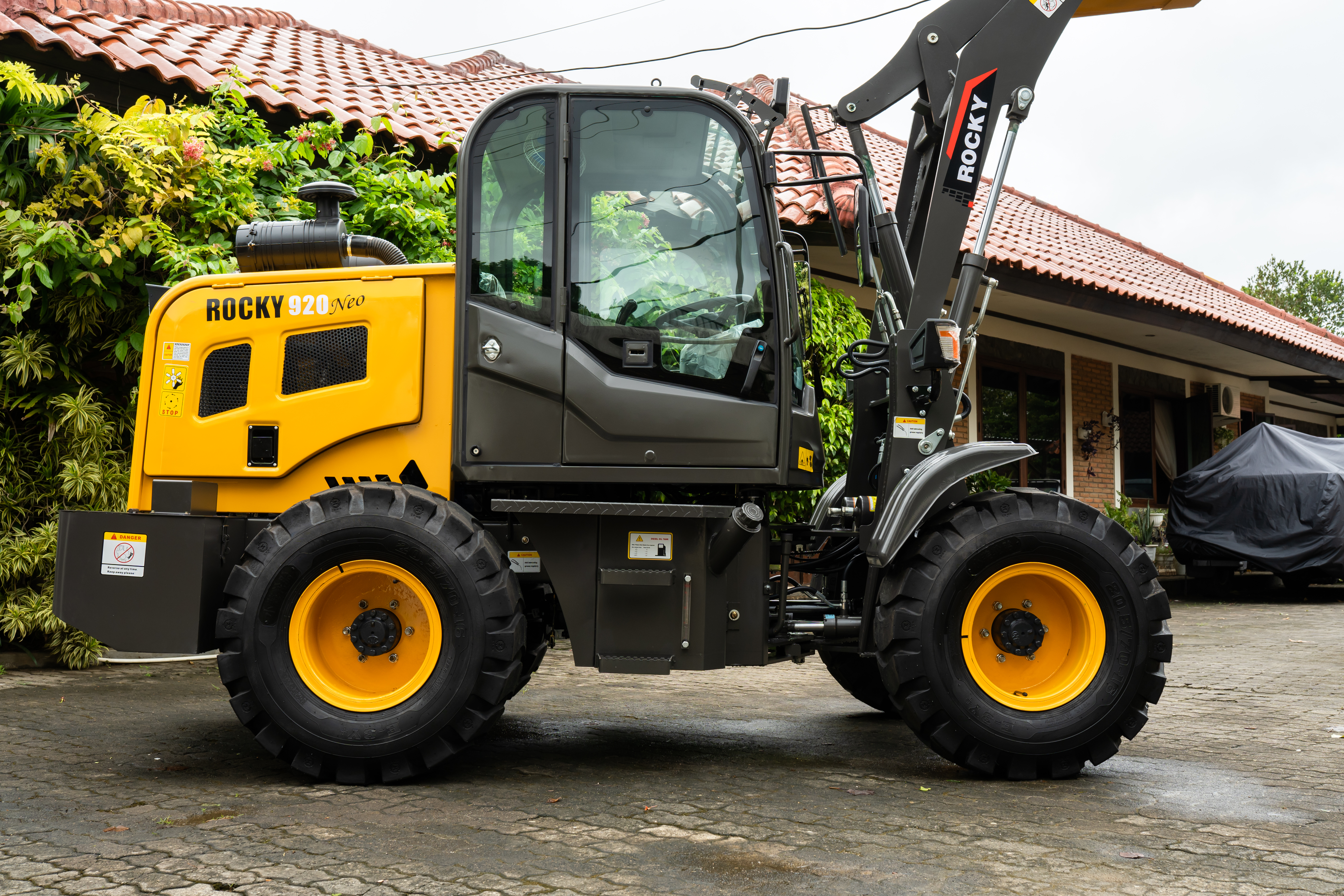

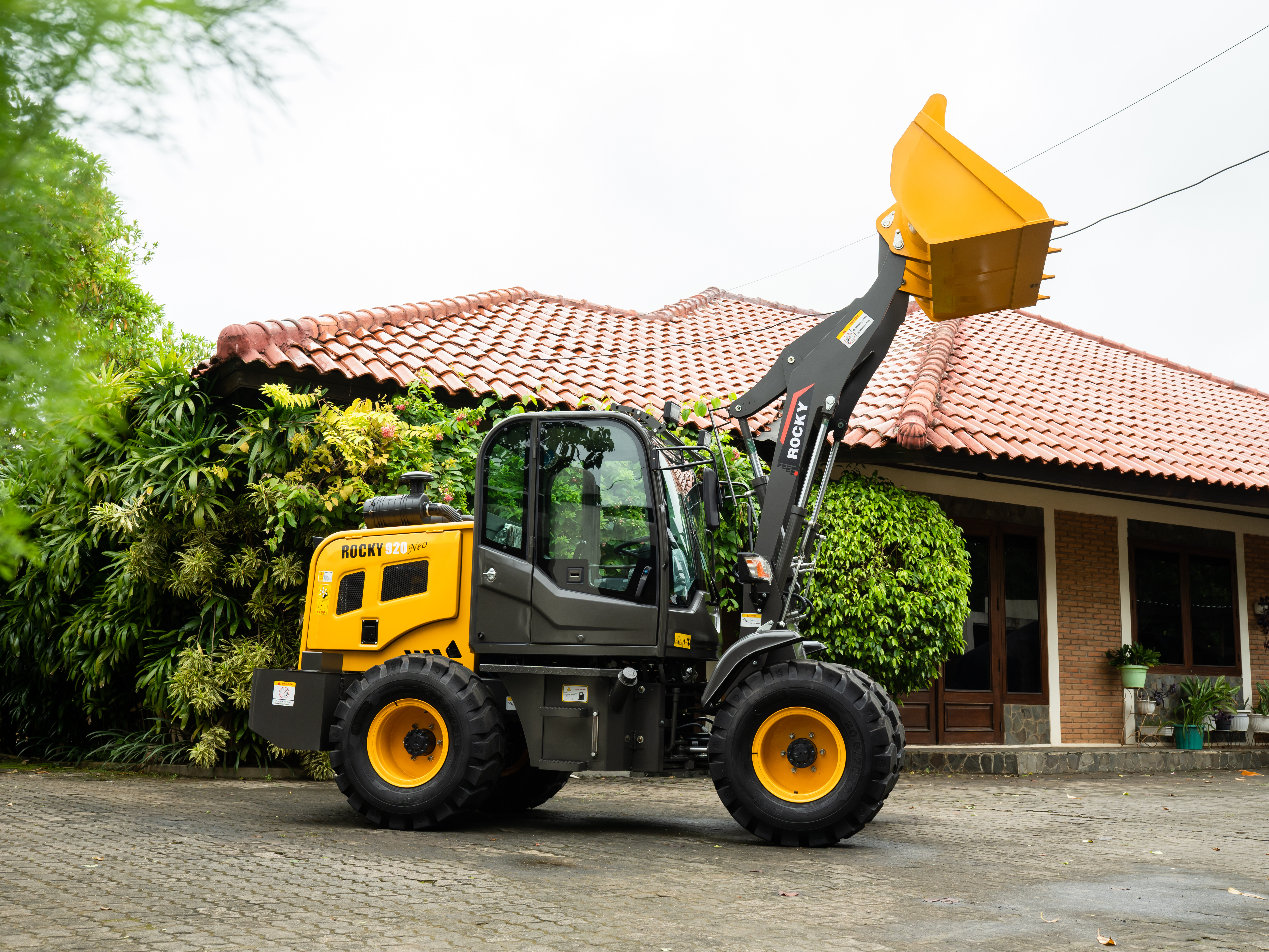

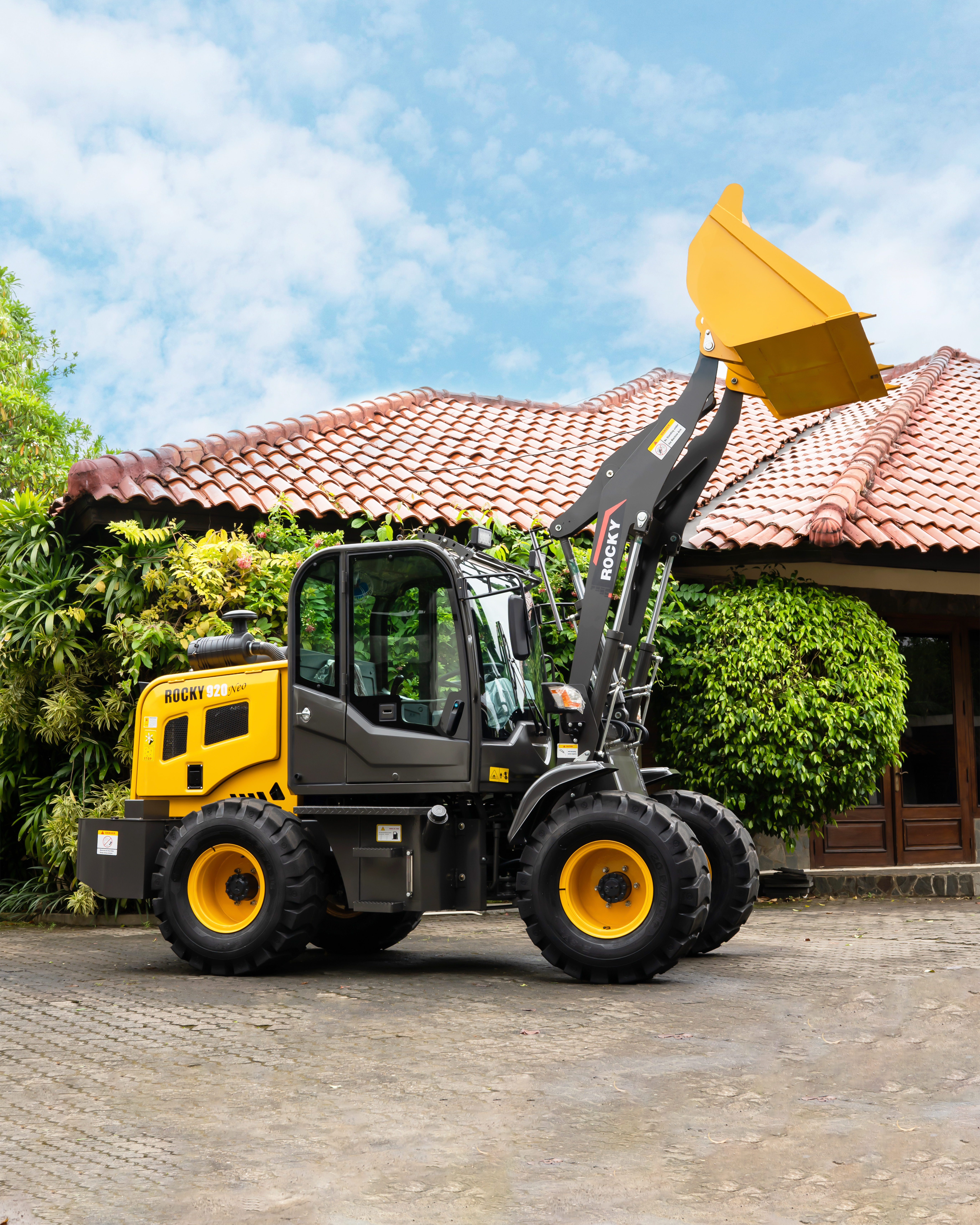

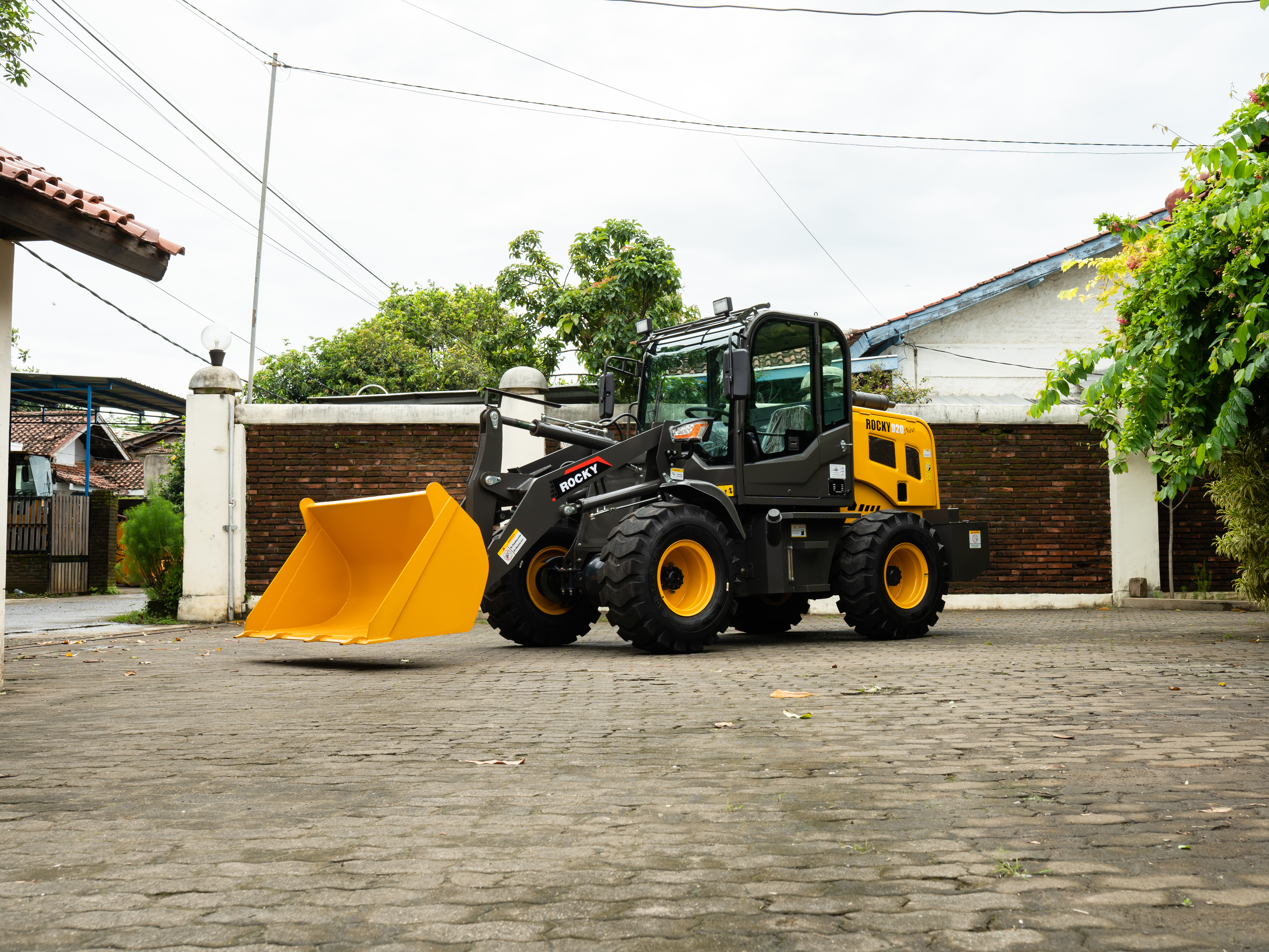

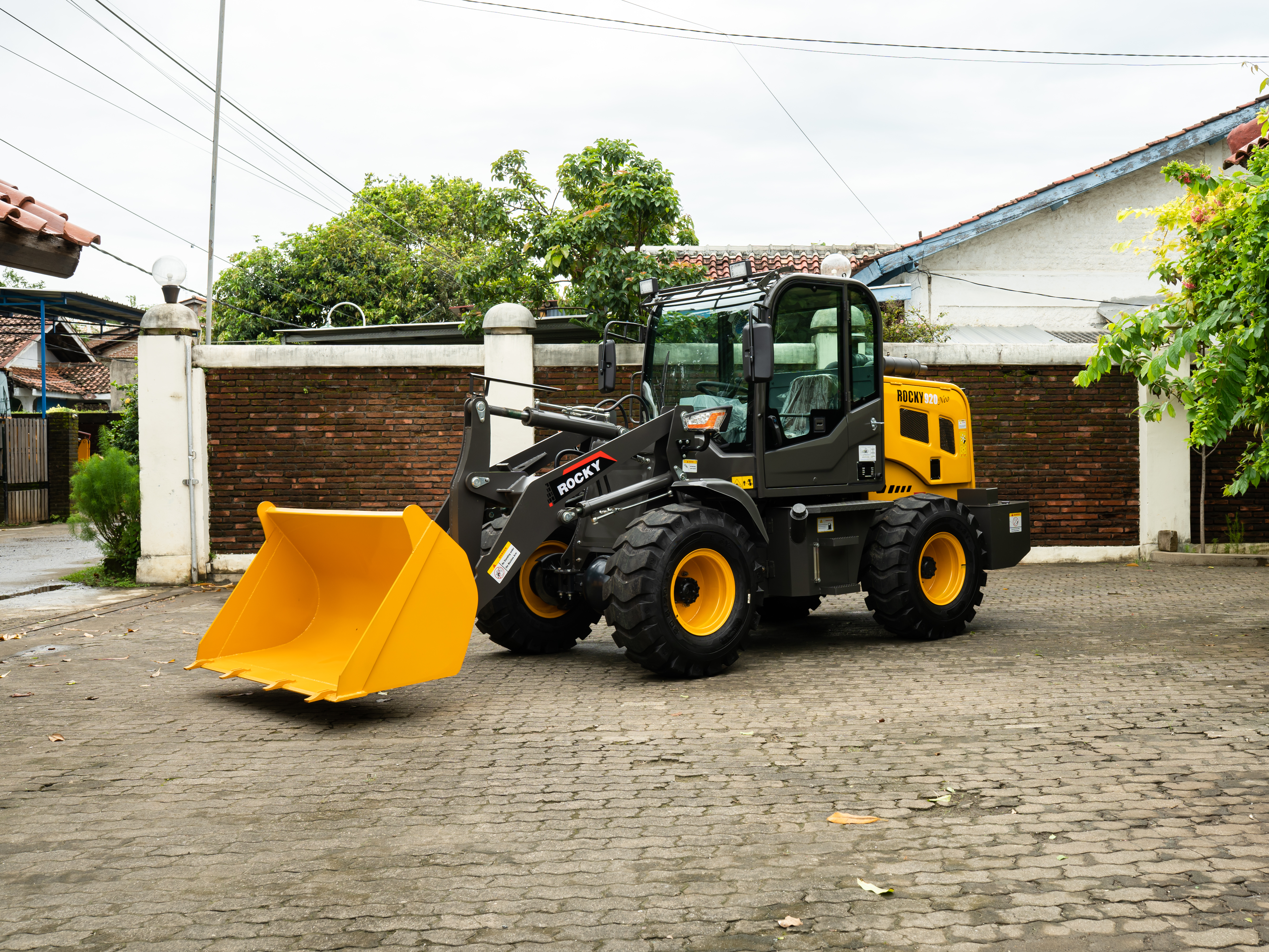

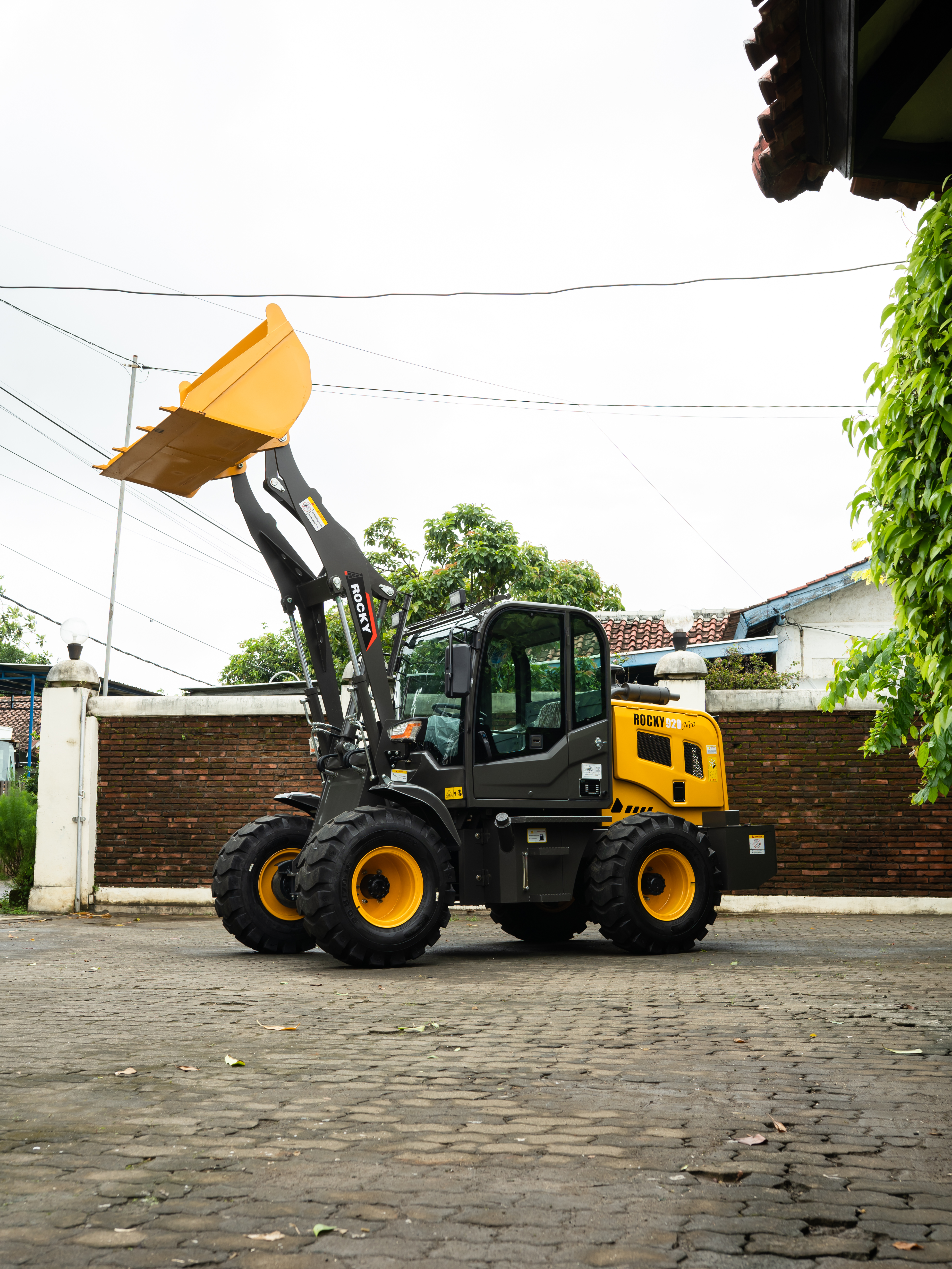

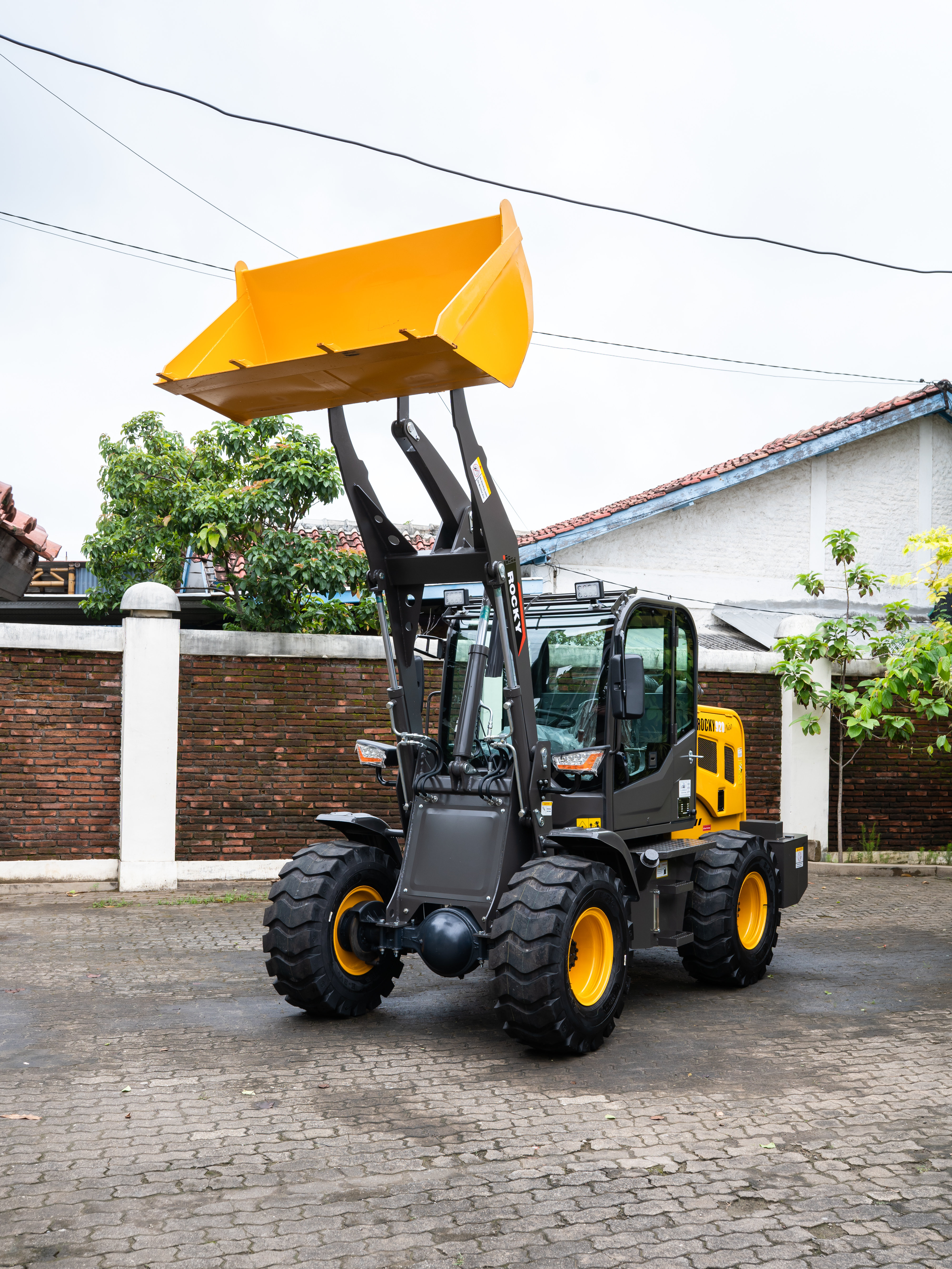

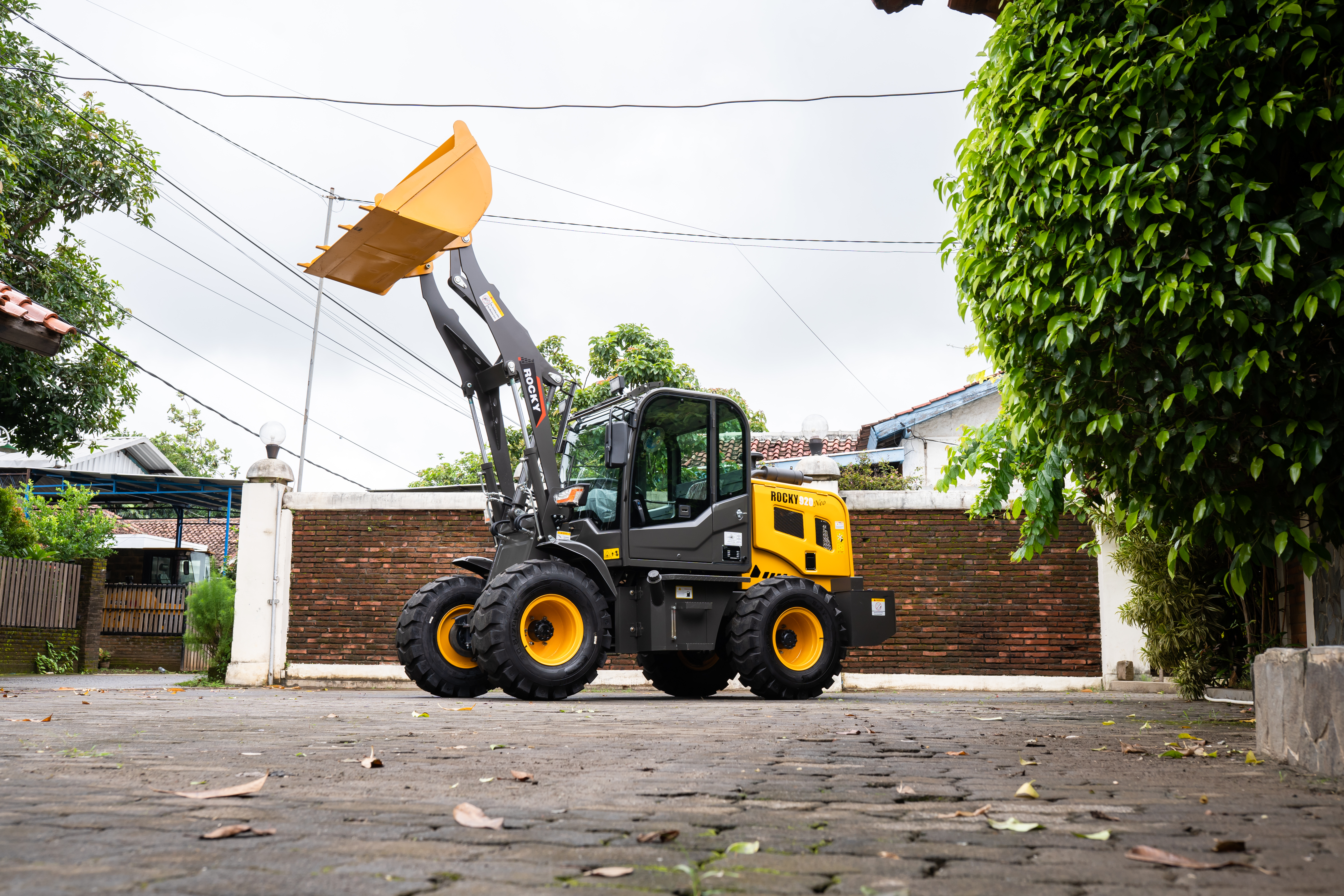

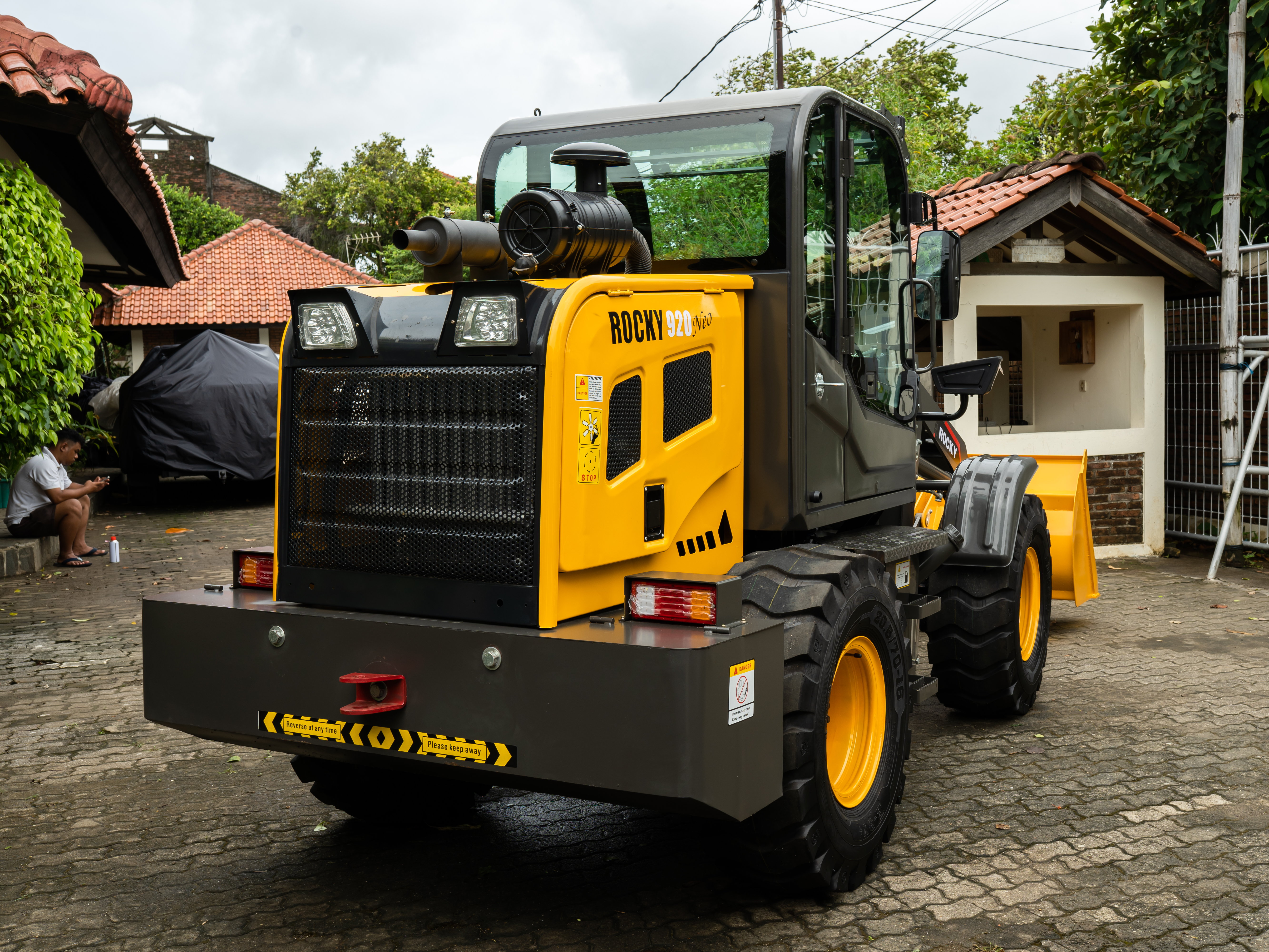

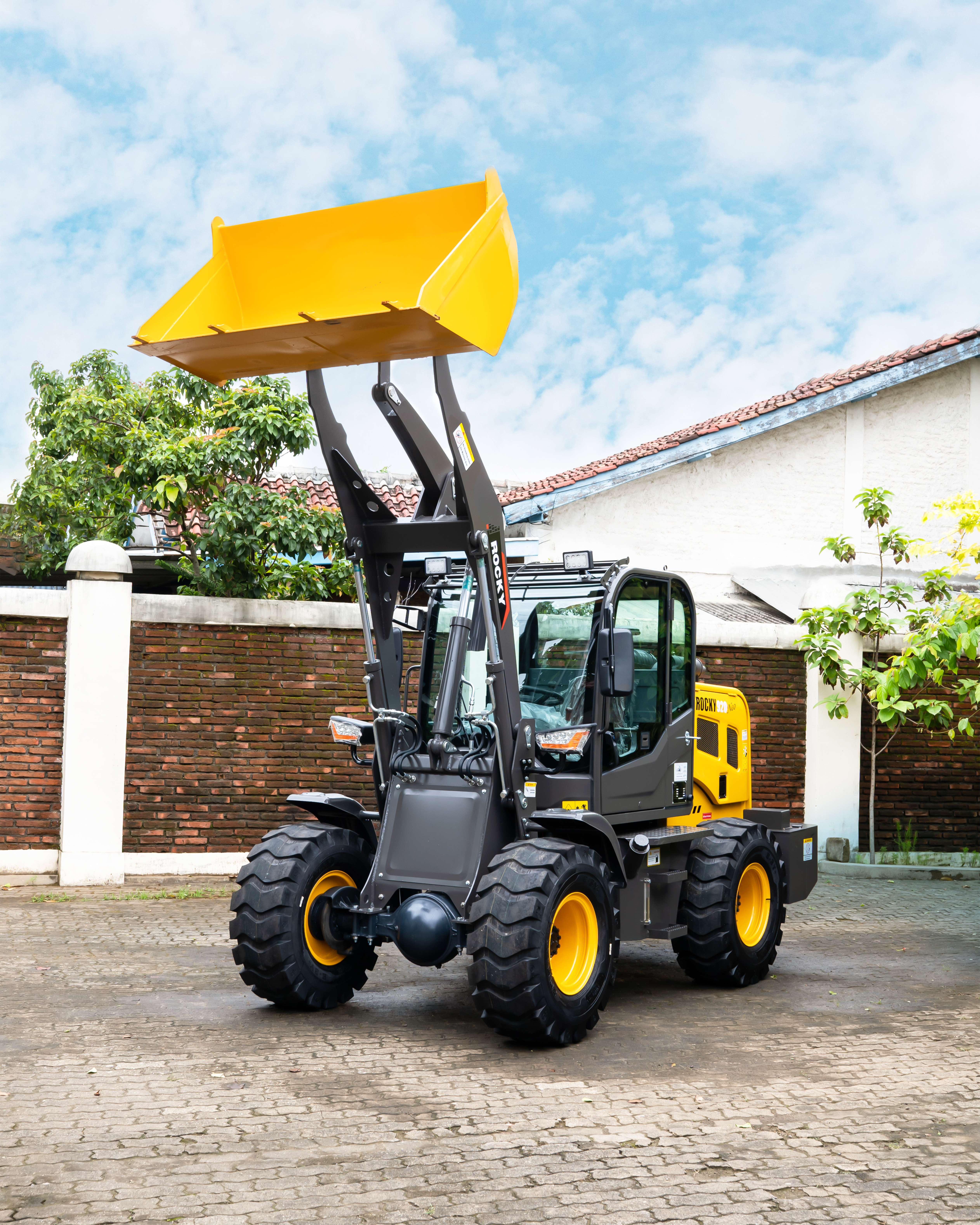

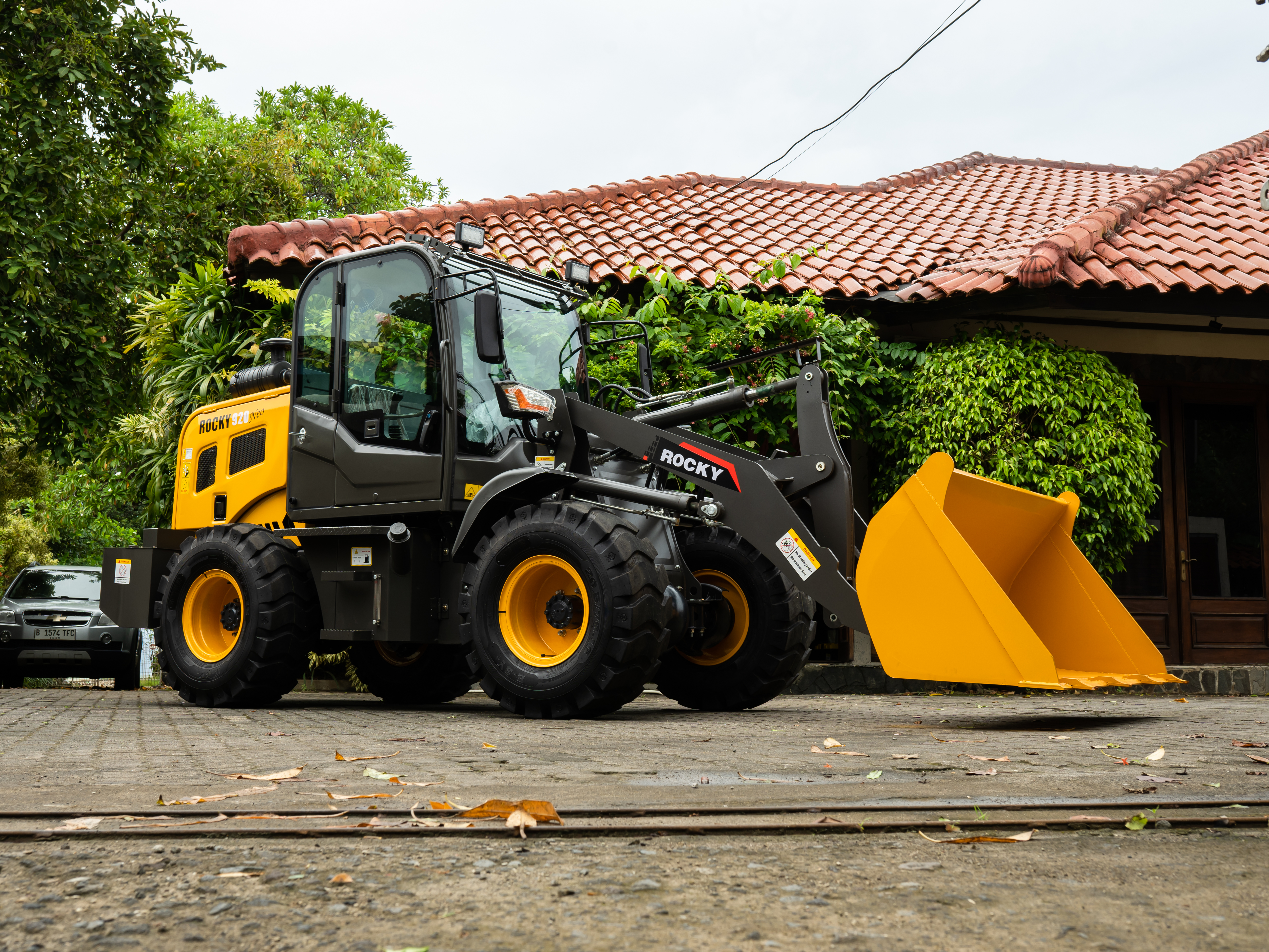

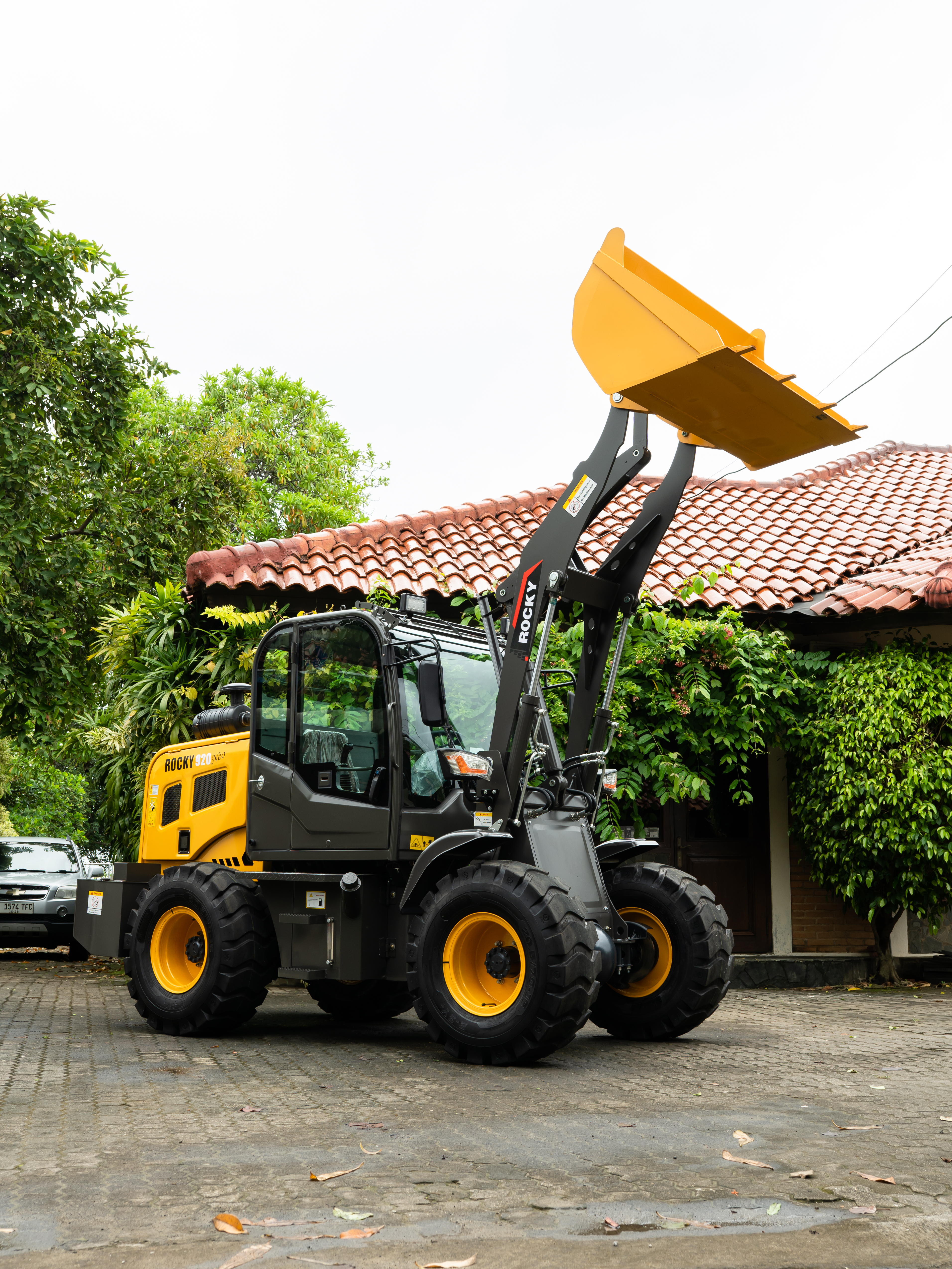

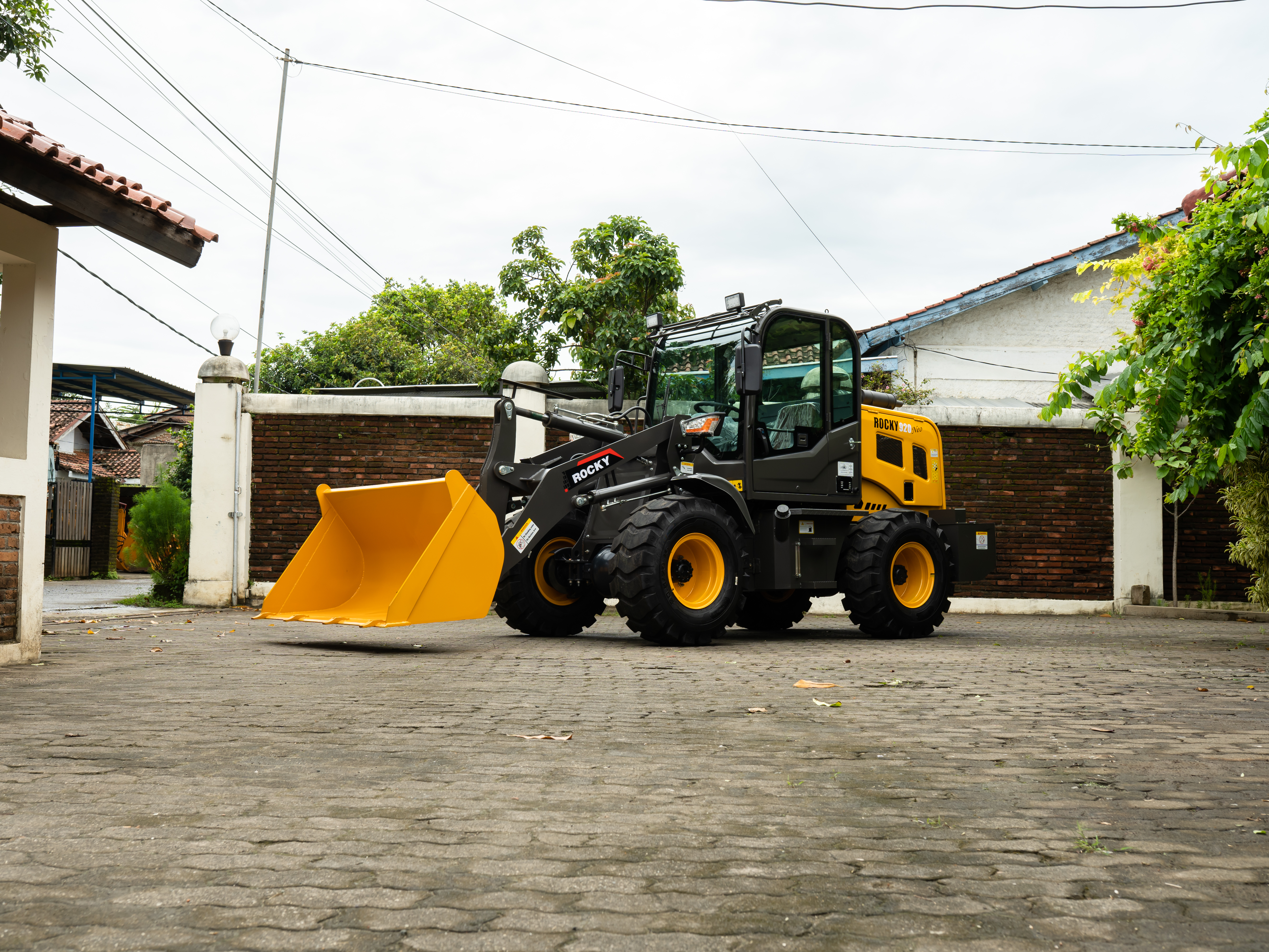

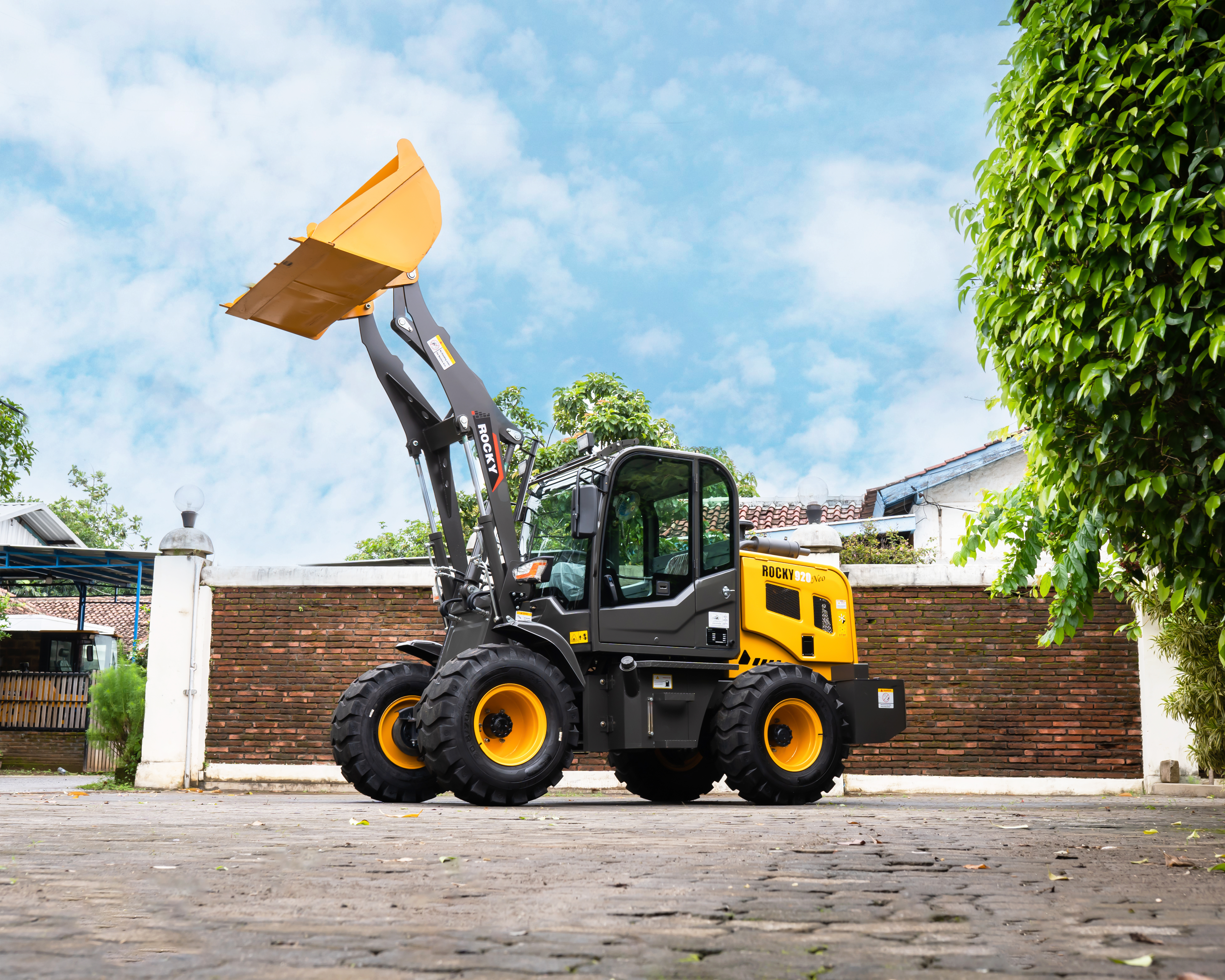

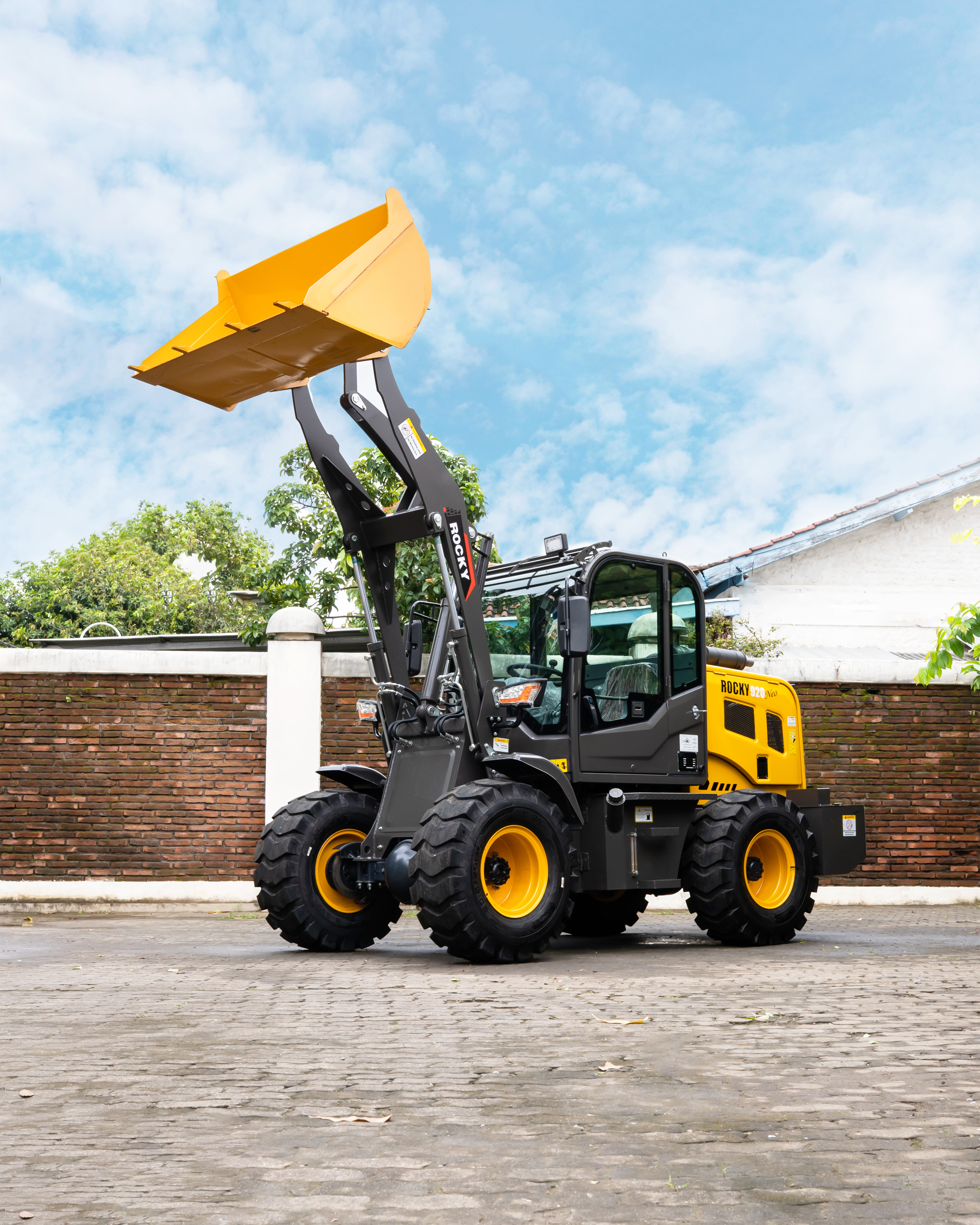

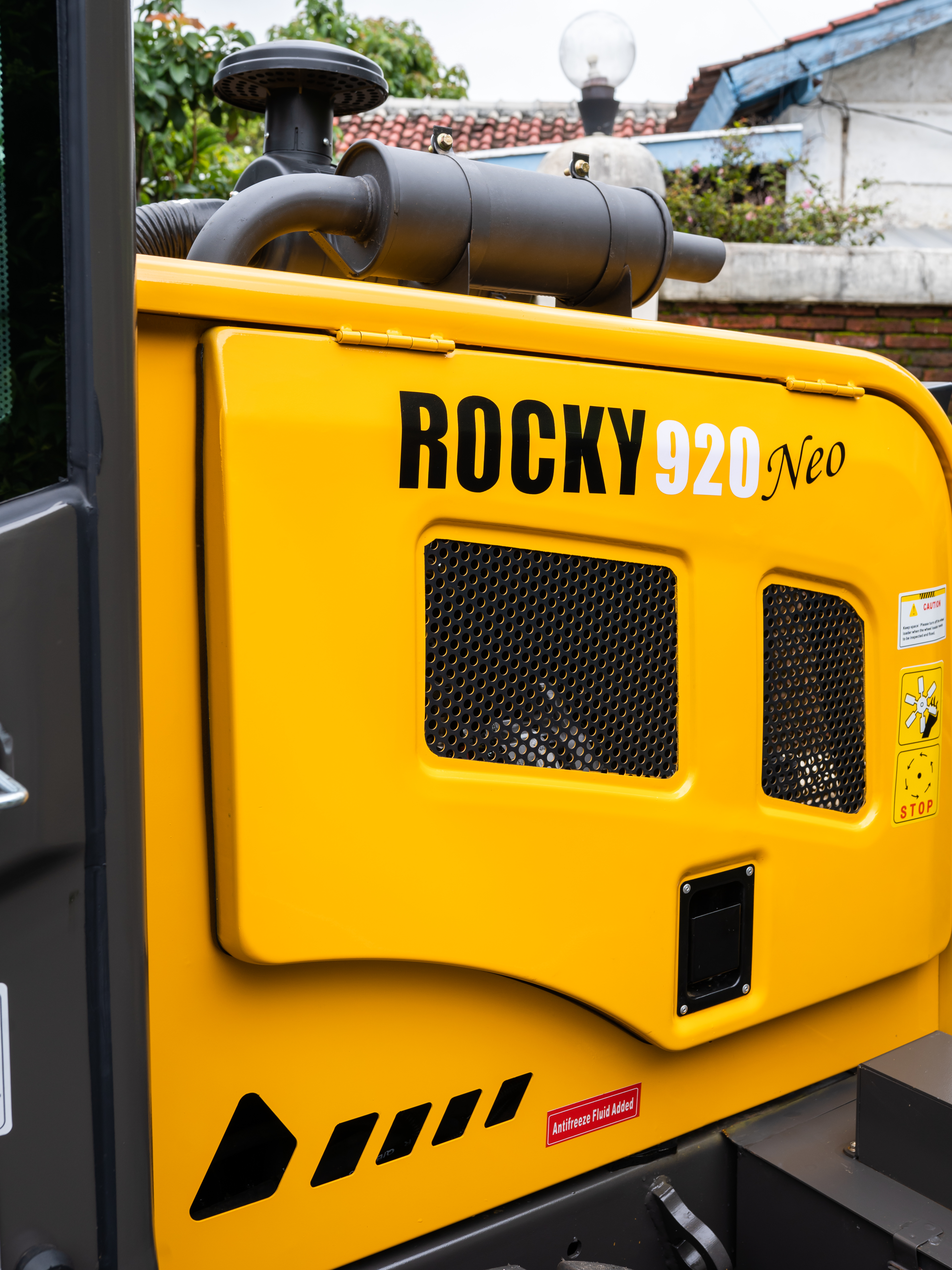

920 NEO WHEEL LOADER - ( Kode : 920 )
| BUCKET CAPACITY | 0.5cbm |
| RATED LOAD | 1000KG |
| RATED POWER | 75hp Turbo |

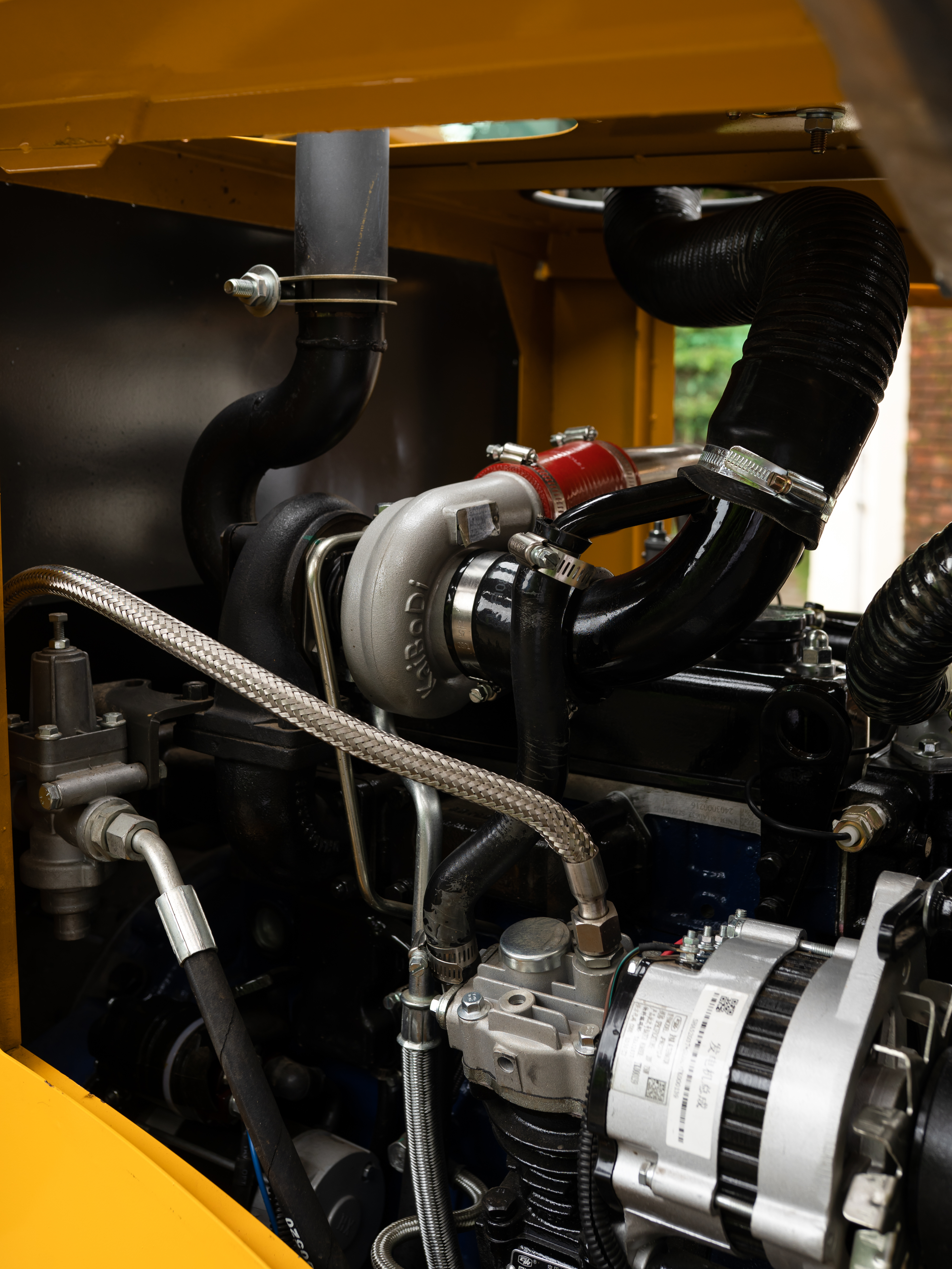

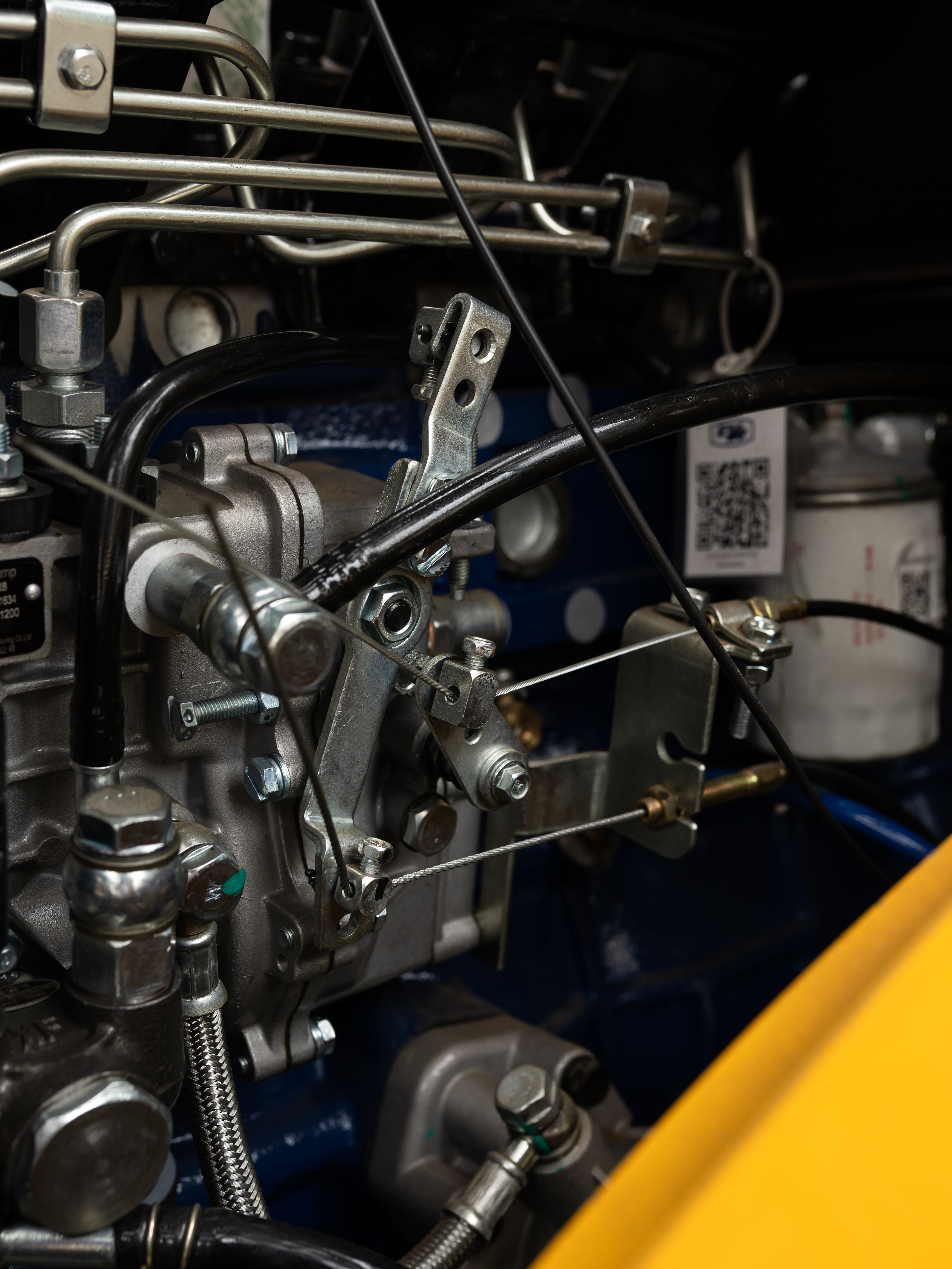

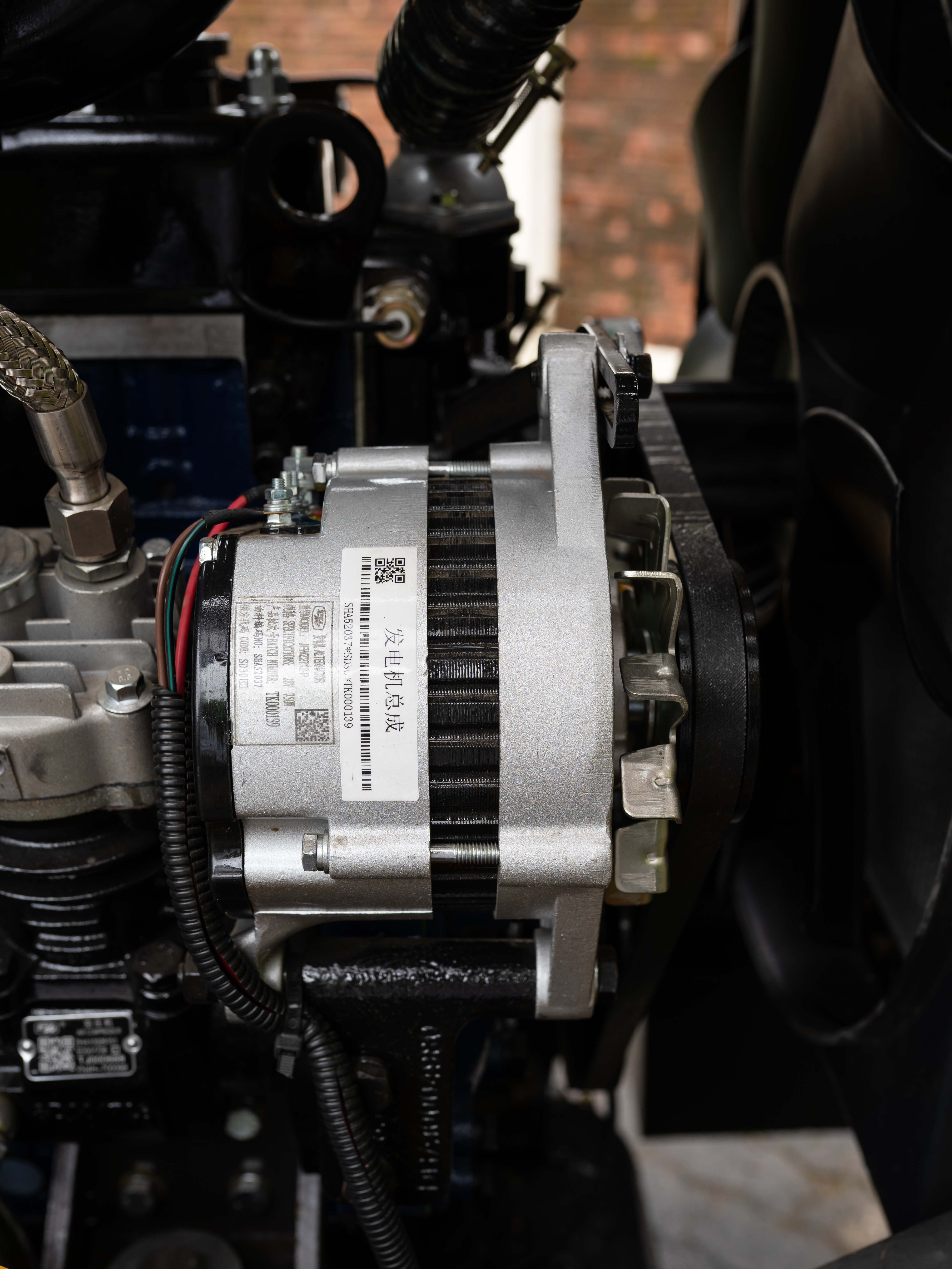

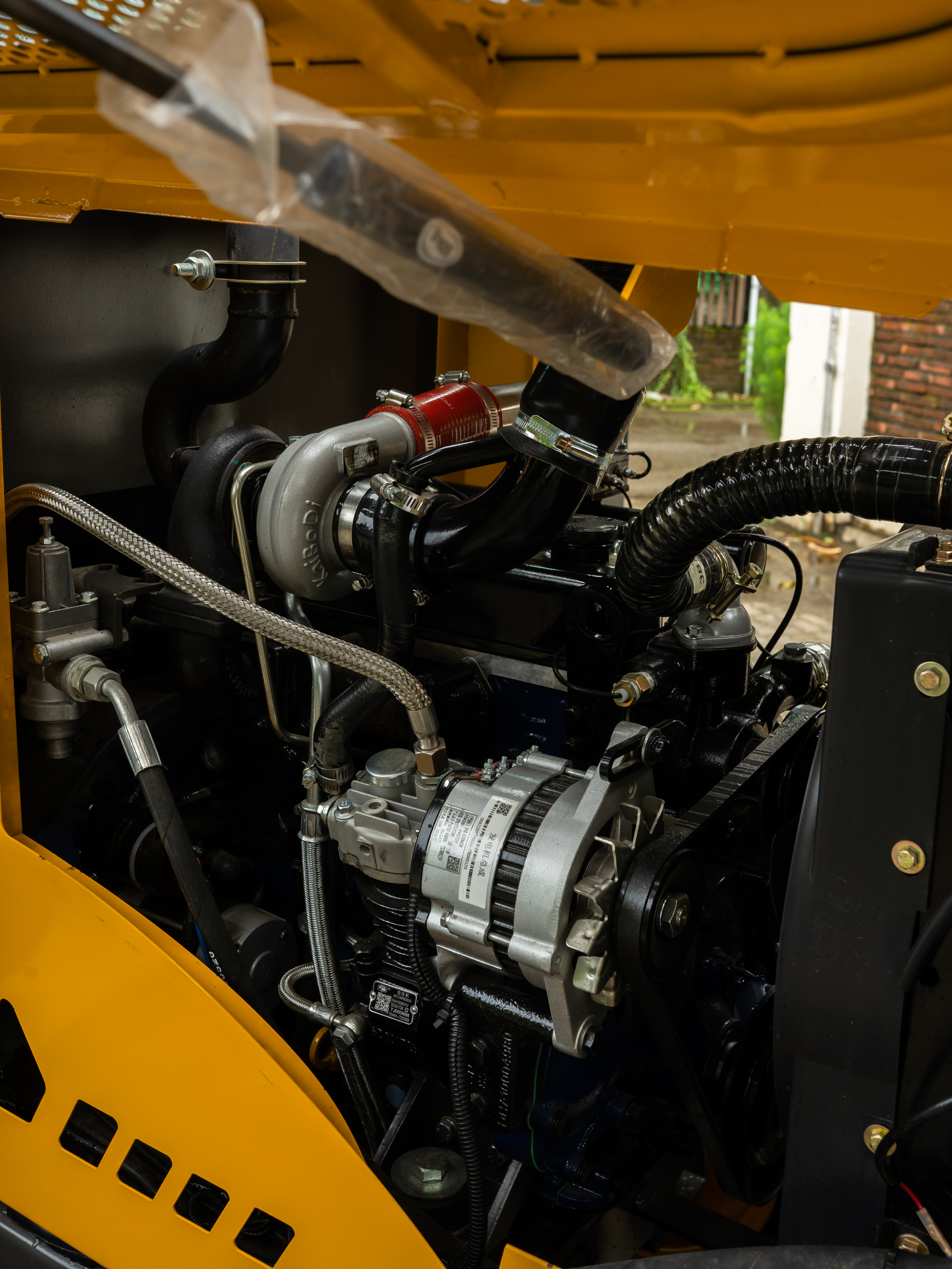

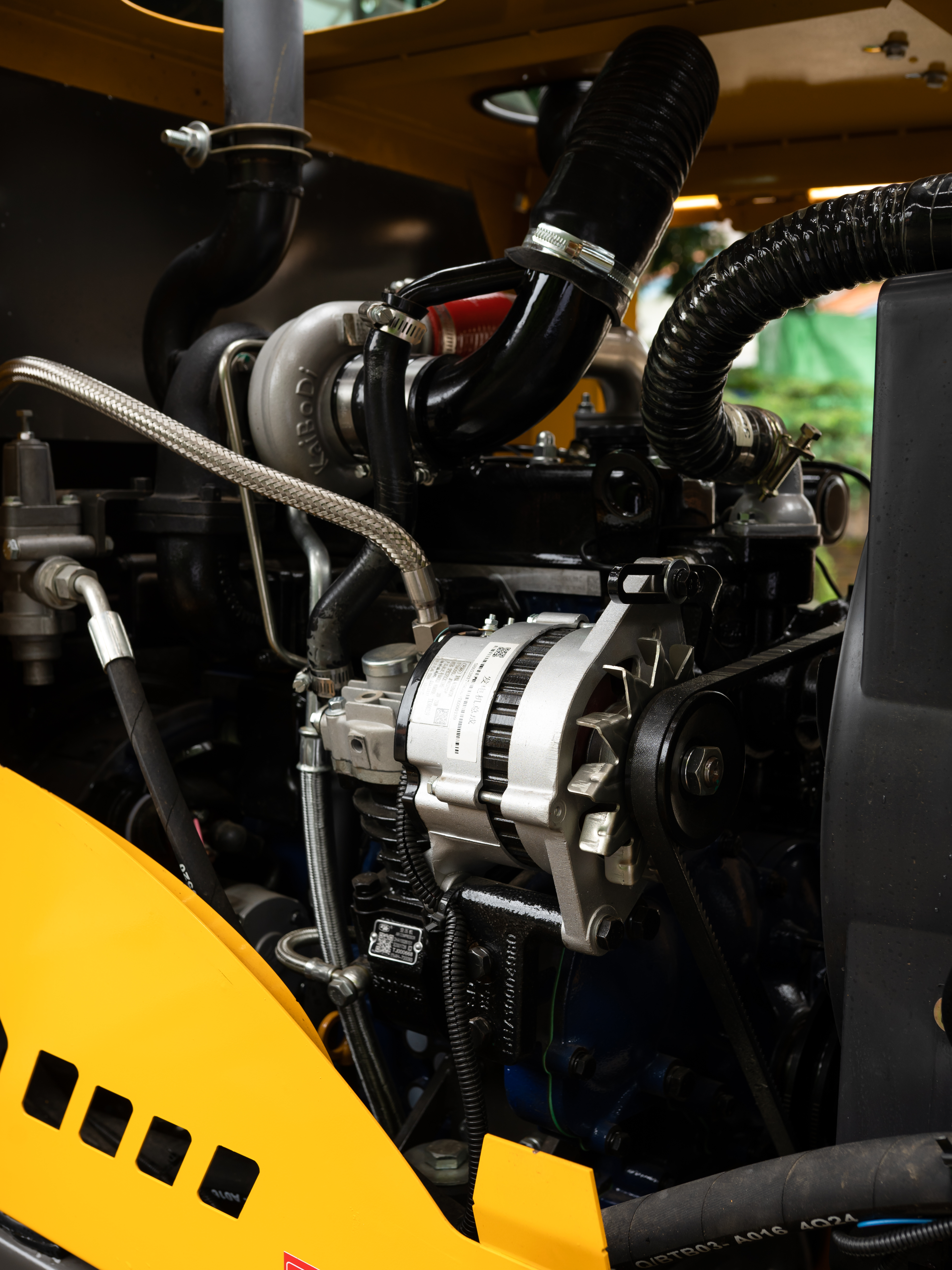

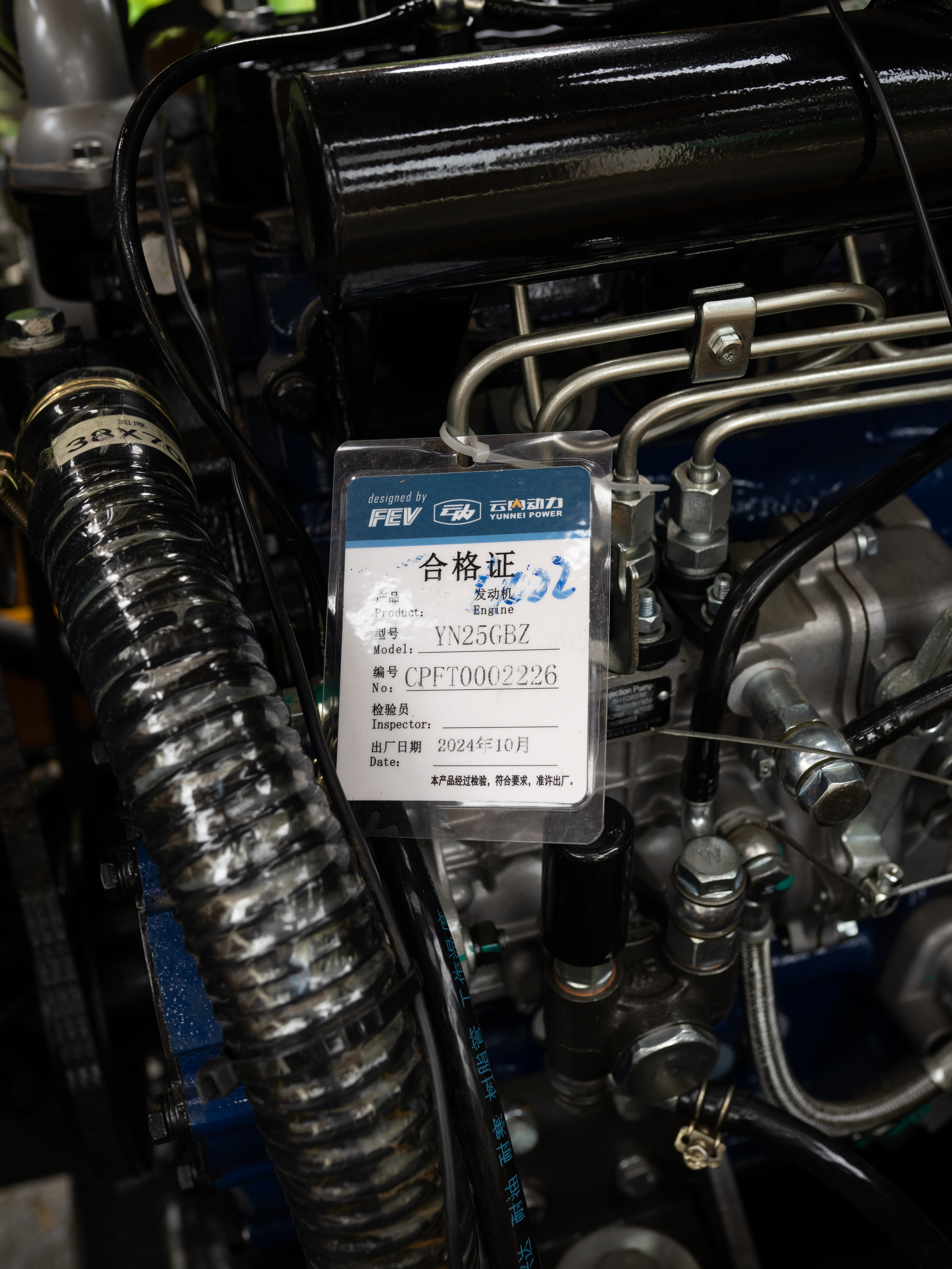

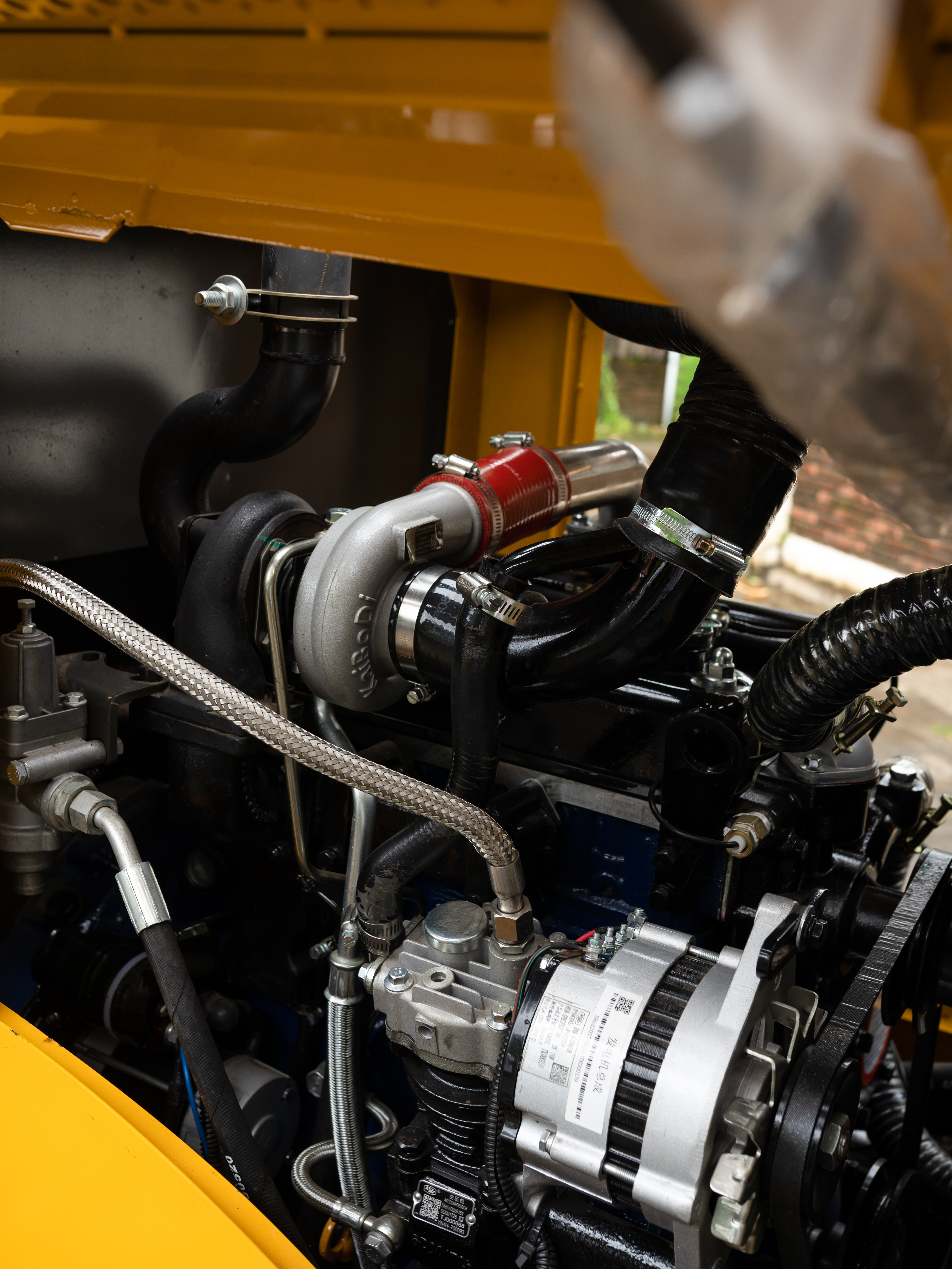

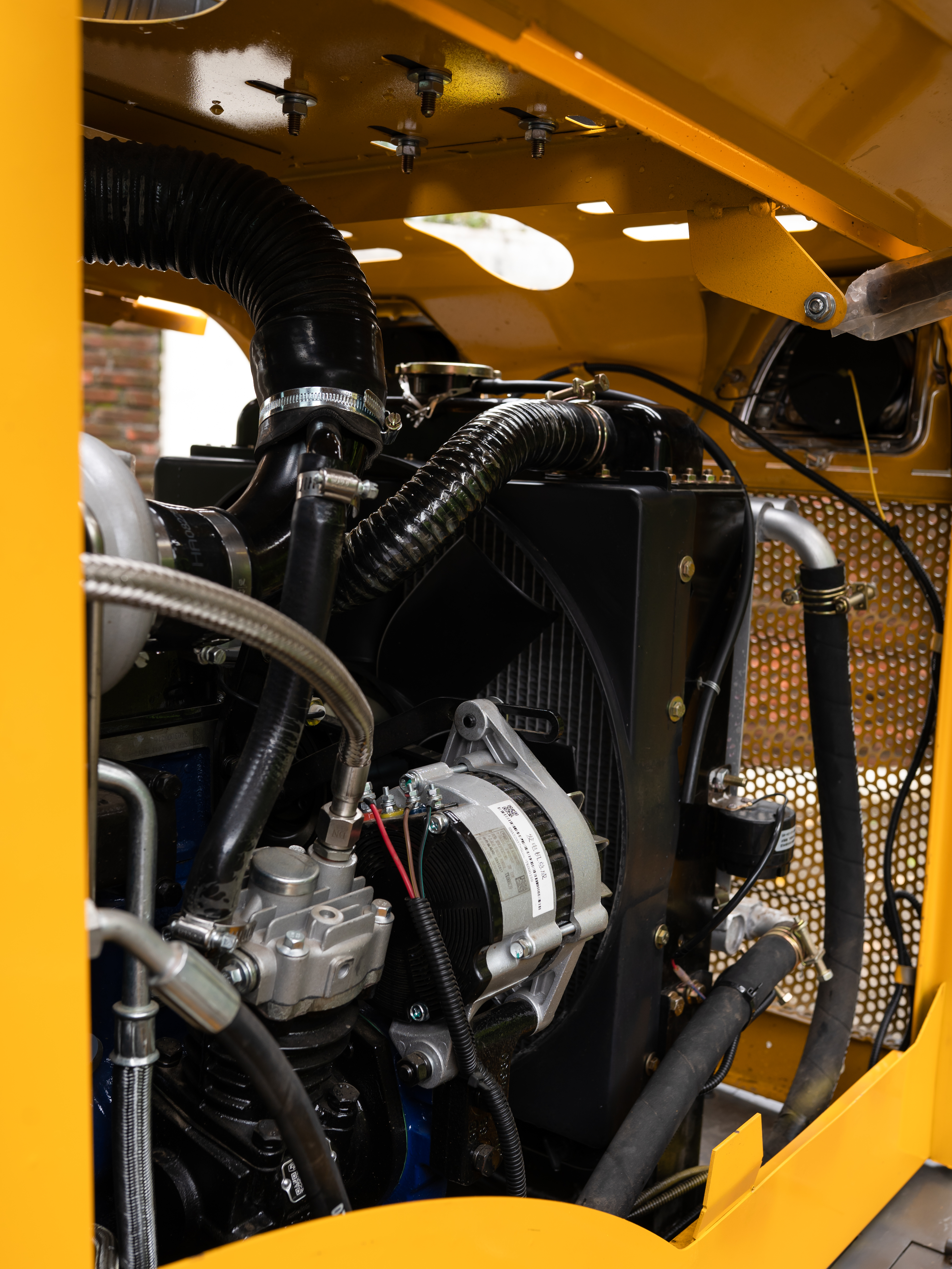

| ENGINE | |
| Model | Yunnei490 |
| Rated Power | 55KW |
| Rated Speed | 2400r/min |
| TRANSMISSION | |

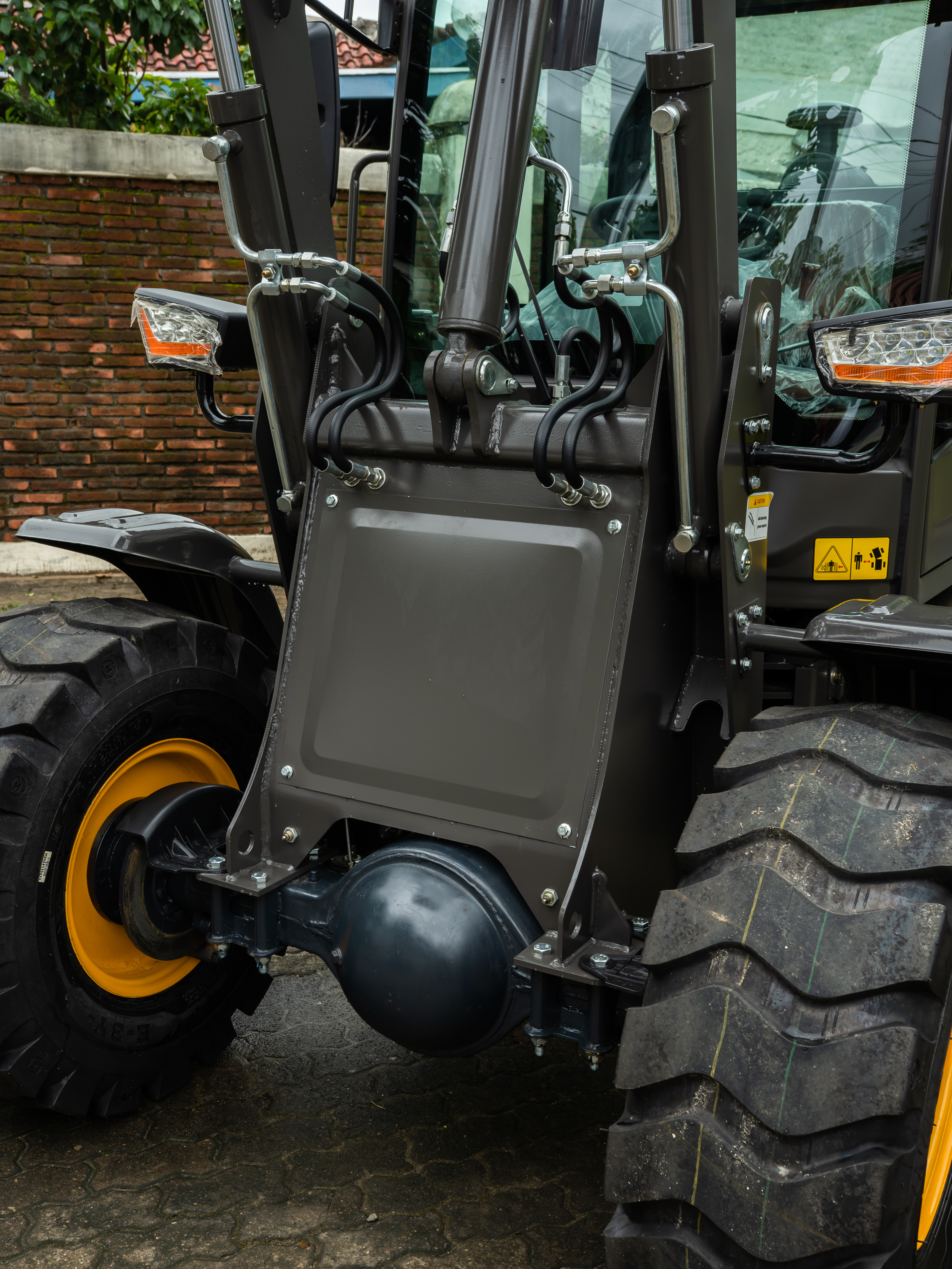

| Axle | Narrow Isuzu/Small wheel hub |

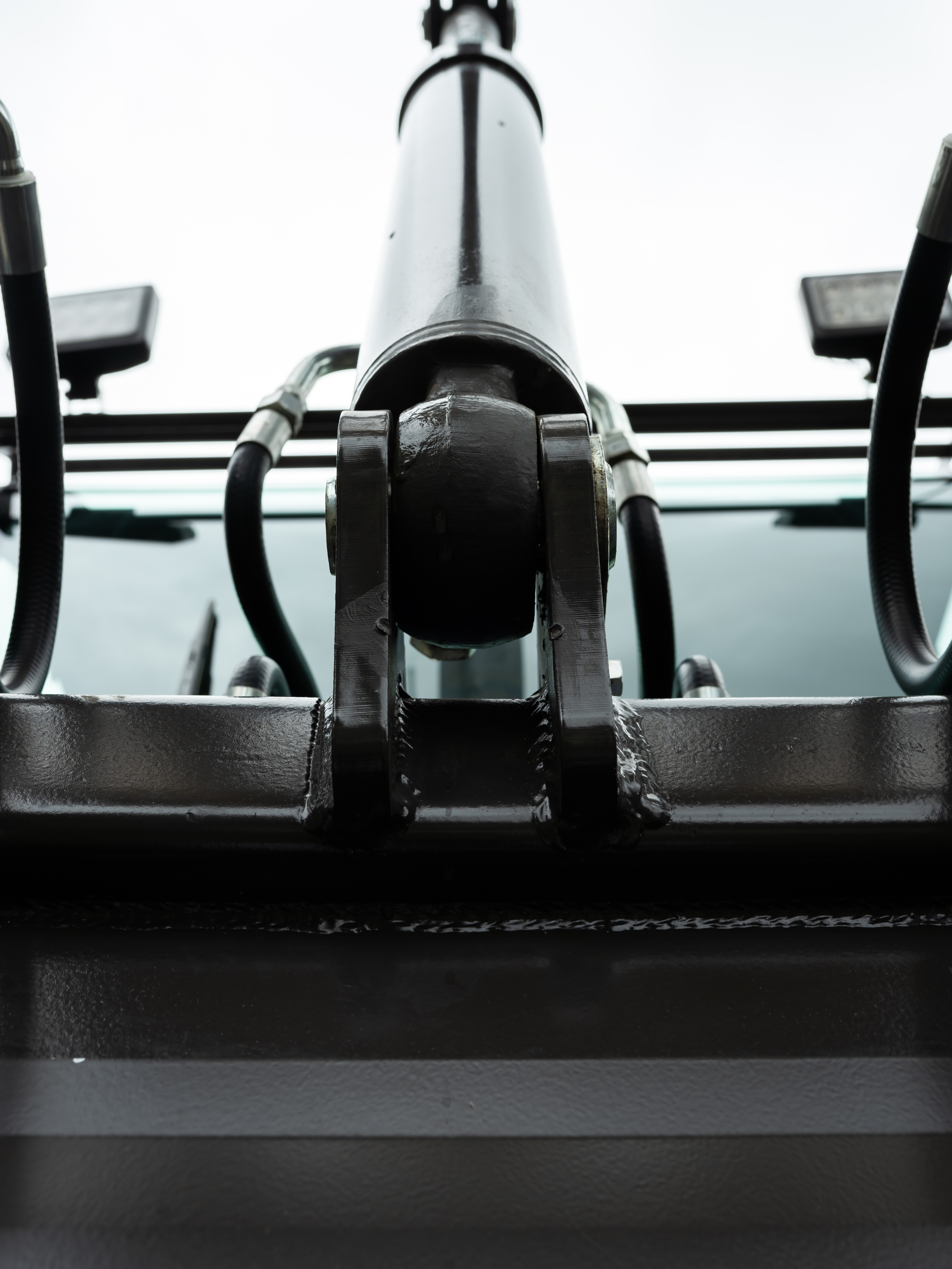

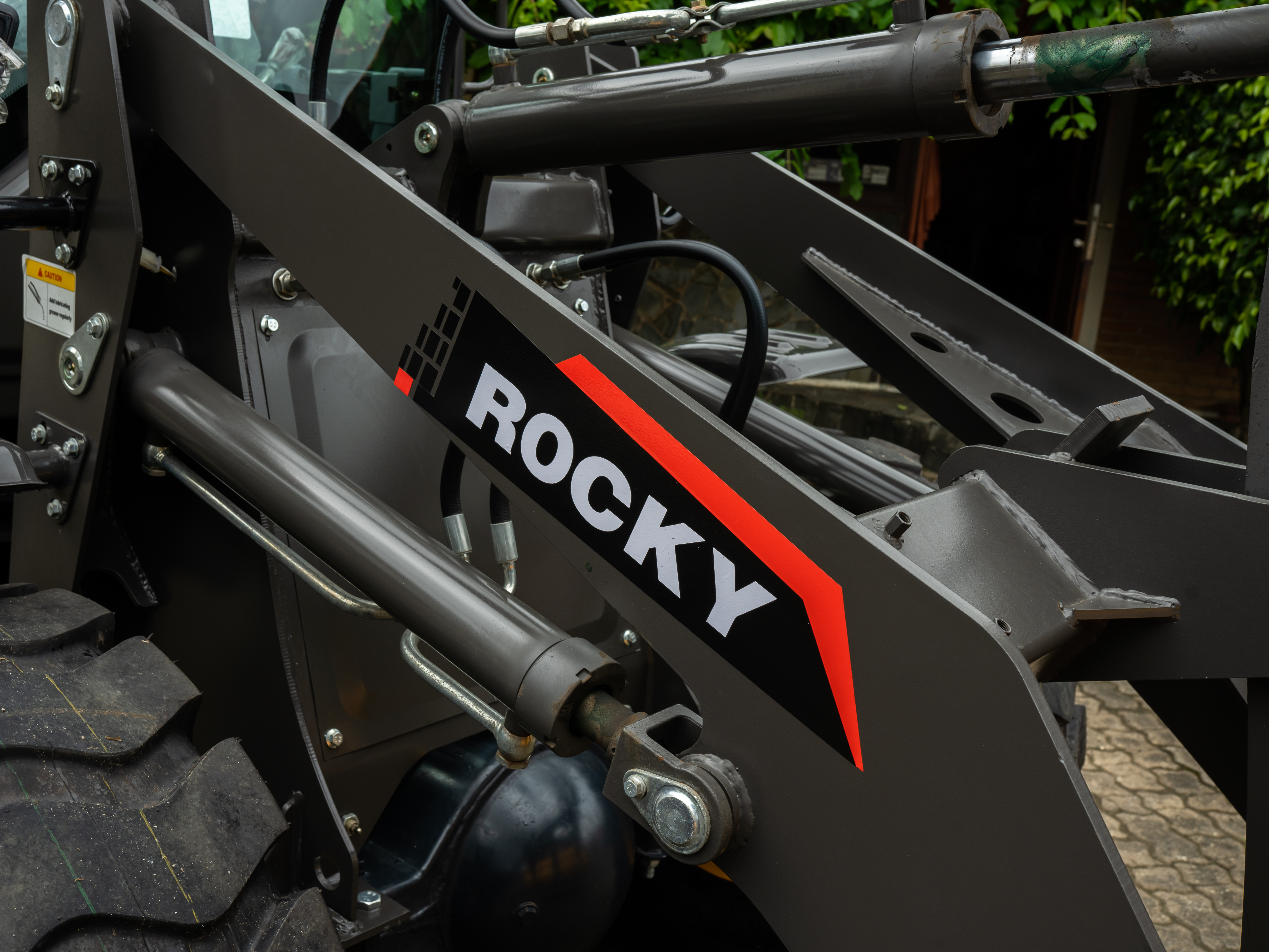

| Hydraulic Cylinder | Lift 45/80; Rotating bucket 50/90 |
| Gear Box | 265 |
| Max Speed | 23KM/H |
| TYRE | |

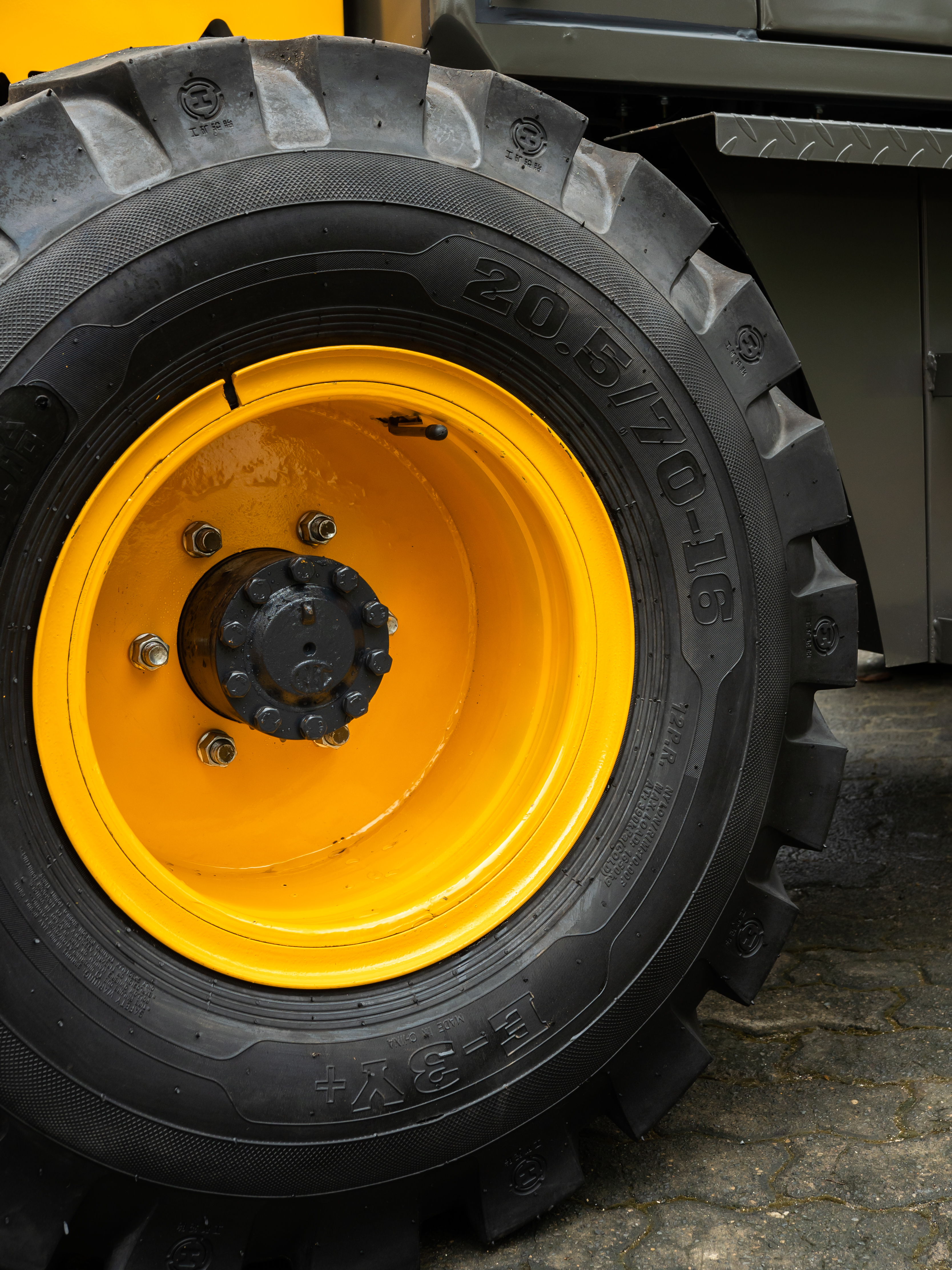

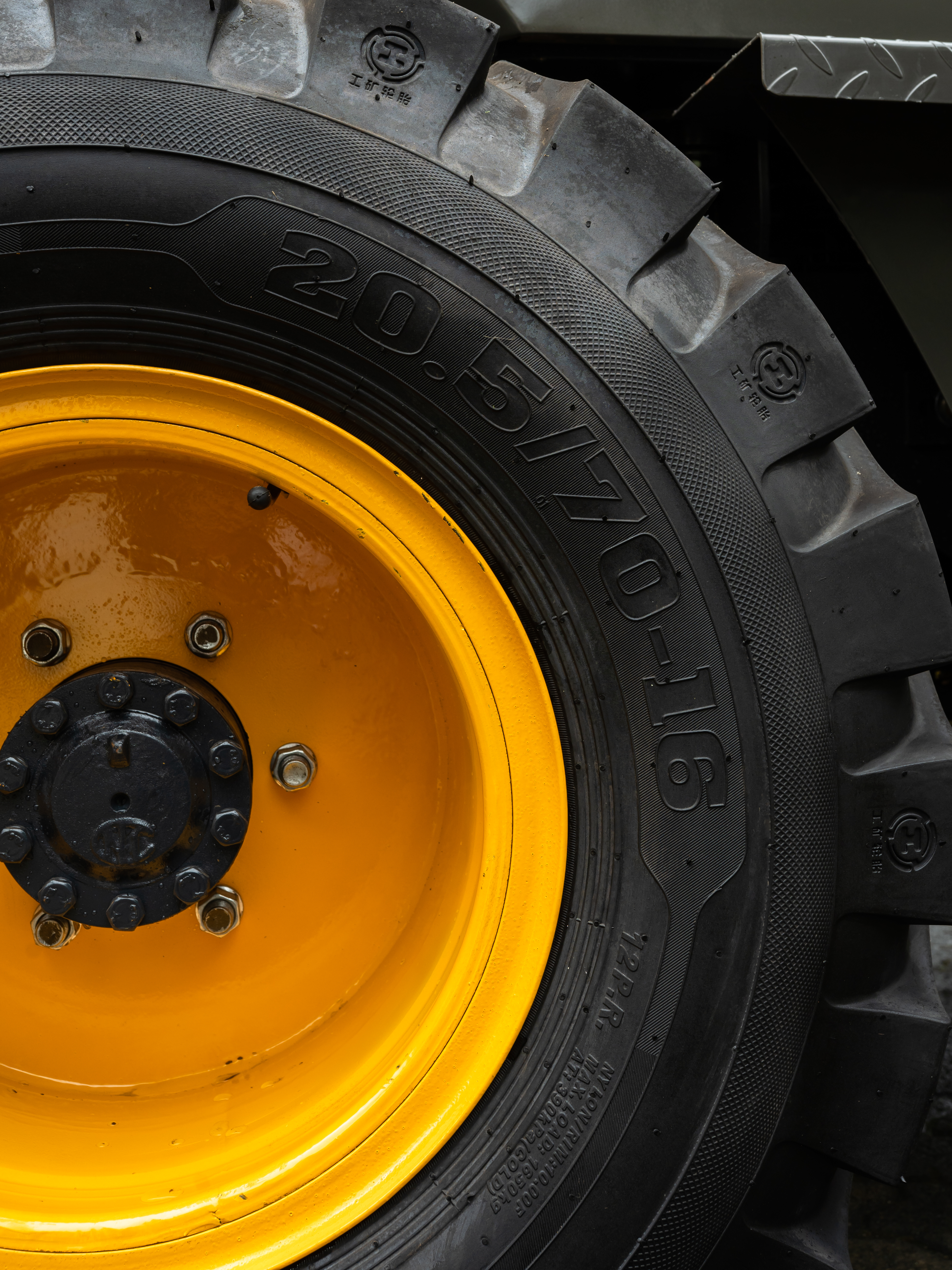

| Tyre | 20.5-16 |
| MAIN TECHNICAL PARAMETERS | |

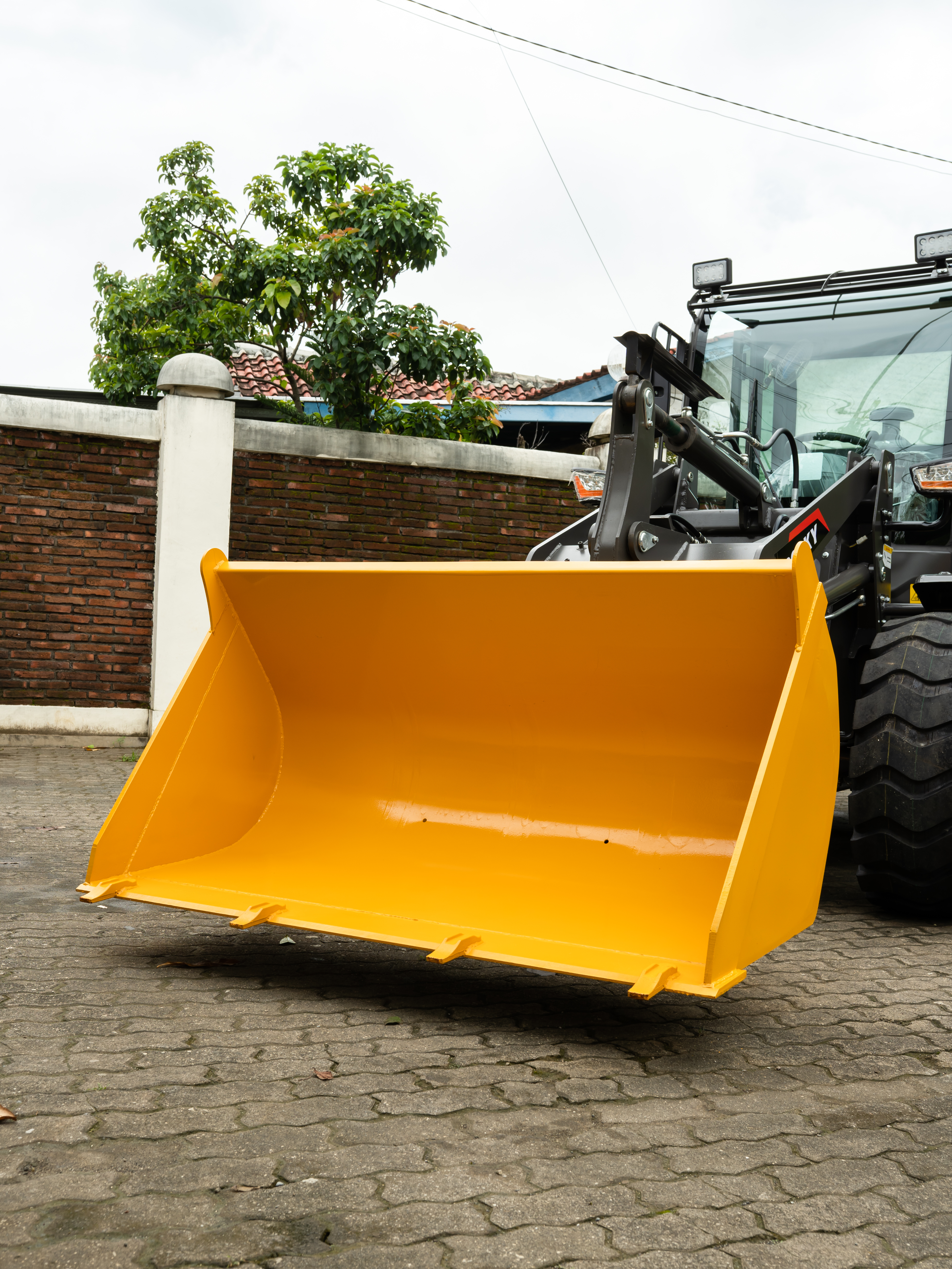

| Bucket Capacity | 0.5M3 |
| Rated Load | 1000KG |
| Tipping Load | 2000KG |
| Operating Weight | 3000KG |
| Counterweight Weight | 59KG |
| Overall DImensions | 5000*1650*2300mm |
| Wheelbase | 2090mm |
| Track Width | 1650mm |

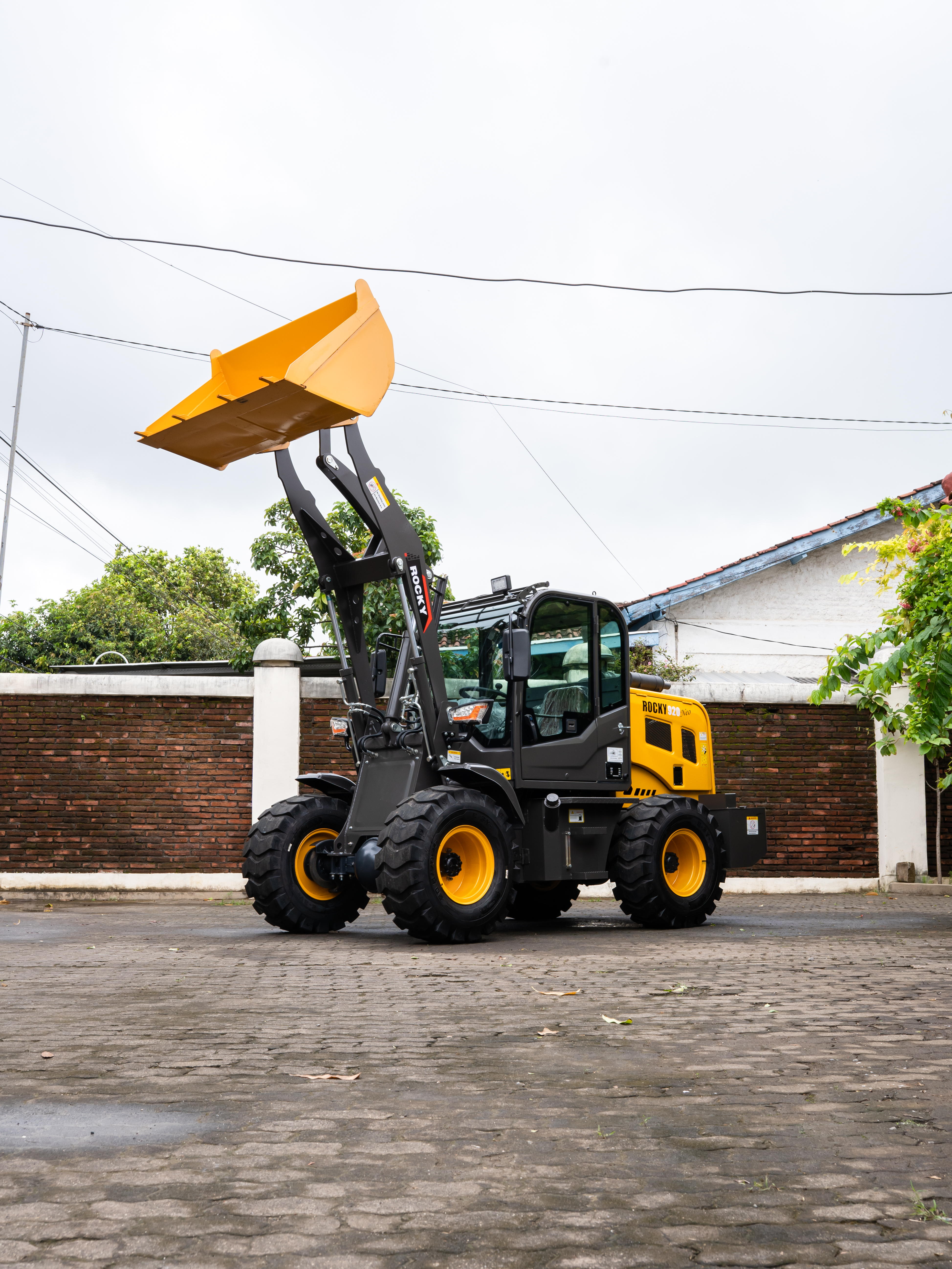

| Discharge Height | 2400mm |
| Unloading Distance | 600mm |
| Turning Radius | 5530mm |
| Minimum Ground Clearance | 180mm |
