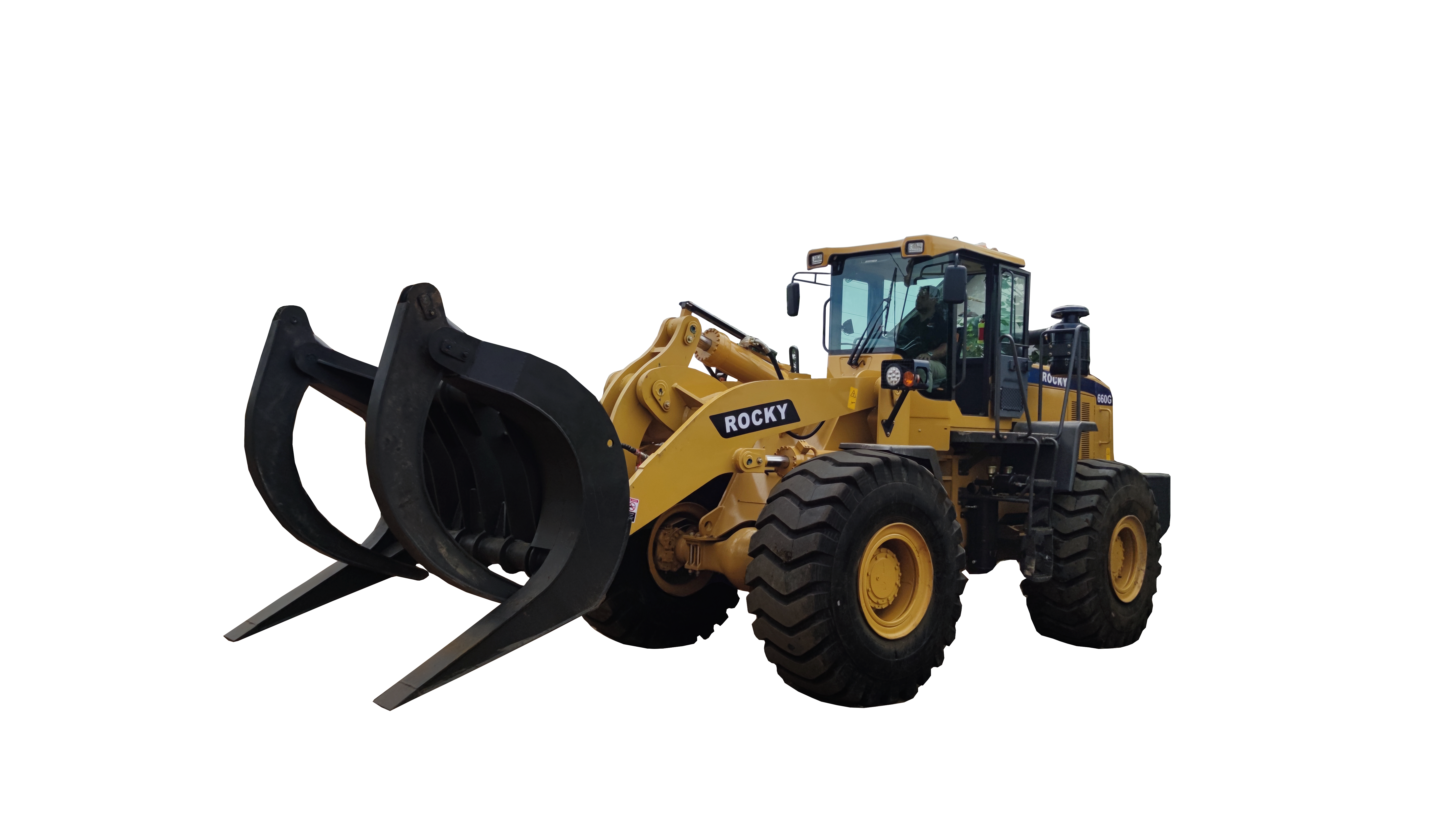

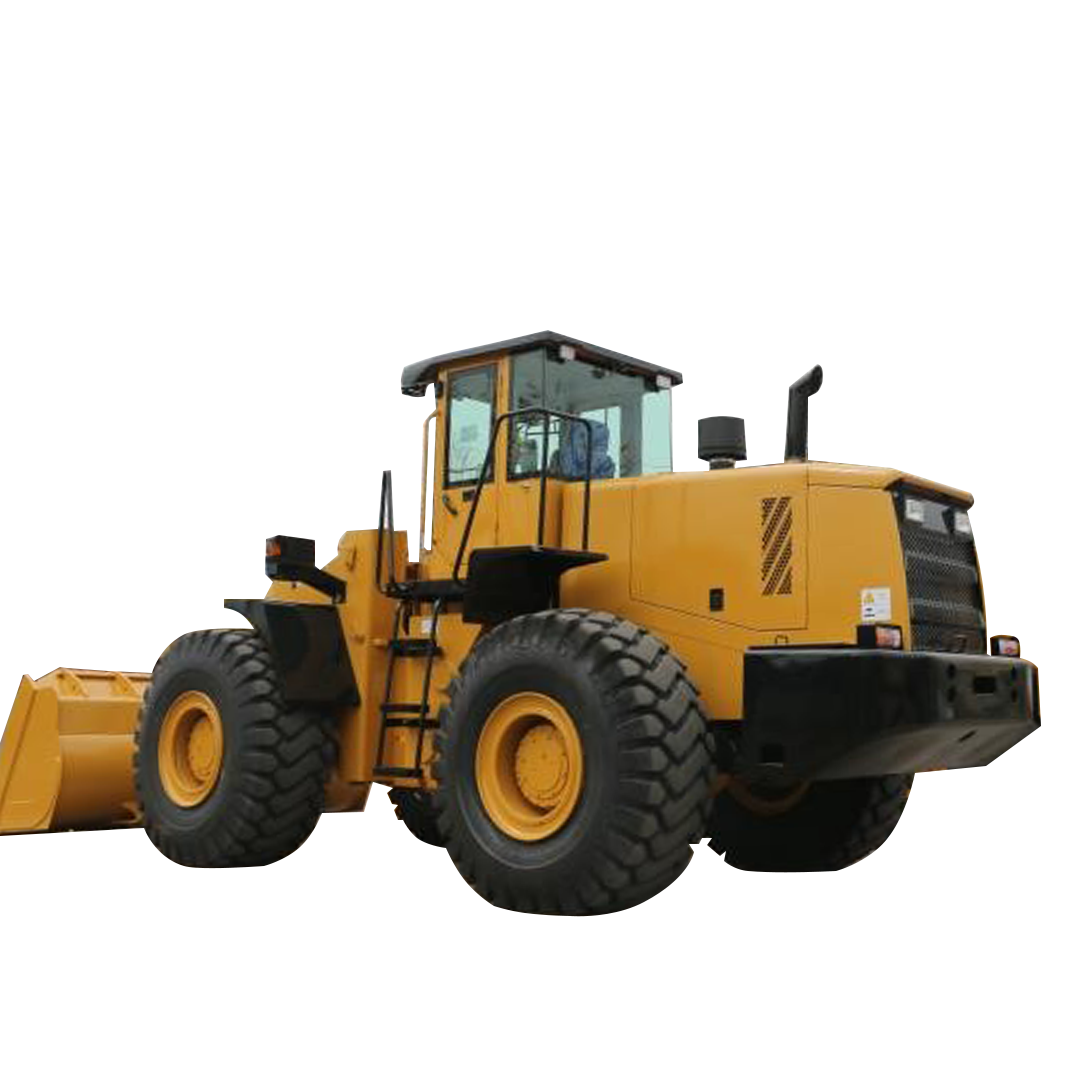

Rocky Loaders 660G - ( Kode : 660G )
| TOTAL WEIGHT | 19500 KG |
| RATED LOAD | 6000 KG |
| BUCKET SIZE | 3.3-5.5m³ |
| ENGINE | Weichai WD10G240E21 |
| PERFORMANCE | |
| Rated Load | 6000 KG |
| Overall Weight | 19500 KG |
| Rated Bucket Capacity | 3.3-5.5m³ |
| Max. Tractive Force | 187 KN |
| Max. Breakout Force | 206 KN |
| Overall Dimension (L x W x H) | 8540 x 3100 x 3550 mm |
| Max. Grade Ability | 30°C |
| Max. Dumping height | 3150 mm |
| Max. Dumping reach | 1255 mm |
| Min. Turning Radius | 6300mm |
| ENGINE | |
| Model | Weichai WD10G240E21 |
| Type | lnline Water Cooling, Dry Cylinder Injection |
| No. of Cylinder-Bore/Stroke | 6 - 126×130mm |
| Rated Power | 175 KW - 2200 RPM |
| Gearbox Mode | Power Shift Normally Engaged Straight Gear |
| Gear Shift | 4 Forward Shift, 4 Reverse Shift |
| Maximum Speed | 40 Km/h |
| DRIVE AXLES | |
| Main Reducing Spiral | Bevel Gear, Grade 1 Reduction |
| Decelerating Mode | Planetary Reduction, Grade 1 |
| Wheel Base | 3350 mm |
| Wheel Tread | 2250 mm |
| Minimum Ground Clearance | 450 mm |
| HYDRAULIC SYSTEM | |
| System Working Pressure | 18 Mpa |
| Boom Lifting Time | 6.15+0.25s |
| Total Time | 10.65+0.5s |
| Fuel Tank Capacity | 300 L |
| Function Of Leveling Automatically | Yes |
| BRAKE | |
| Service Brake | Air Over Hydraulic Disc Brake on 4 Wheels |
| Parking Brake | Manual Parking Brake |
| TYRE | |
| Type Specification | 26.5-25 |
| Front Tyre Pressure | 0.4 Mpa |
| Rear Tyre Pressure | 0.35 Mpa |
