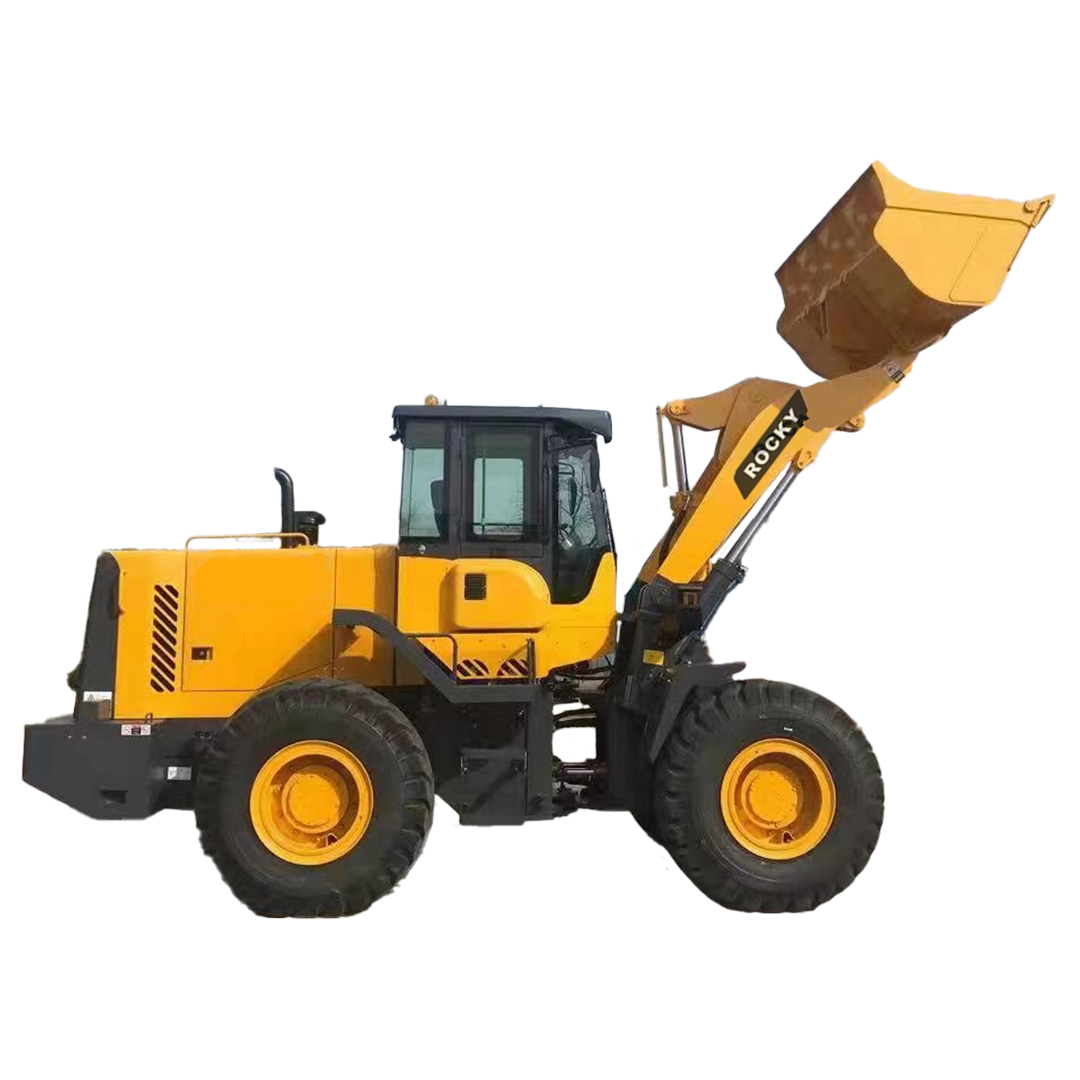

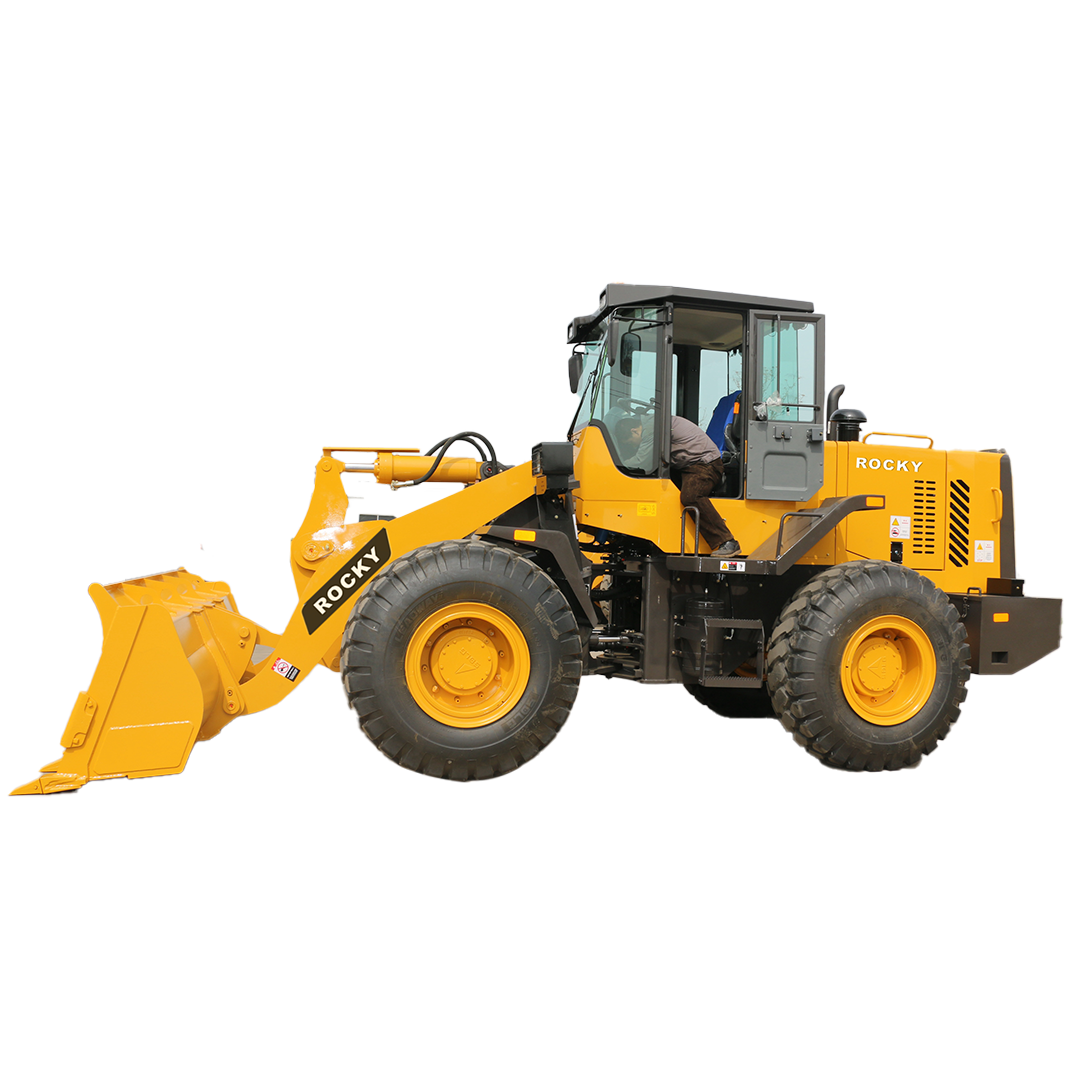

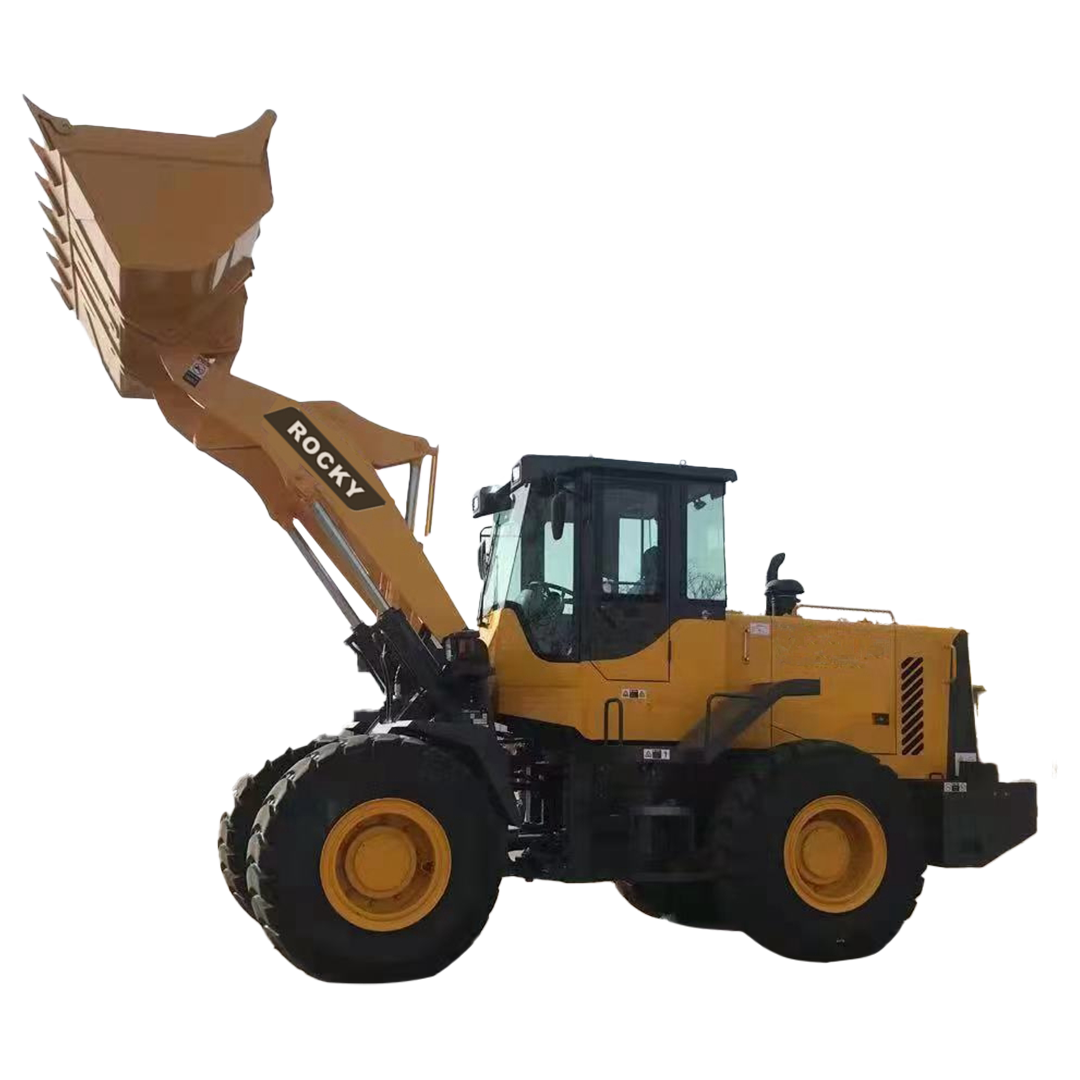

Rocky 946G Wheel Loader - 946G
| TOTAL WEIGHT | 12700 KG |
| RATED LOAD | 4000 KG |
| BUCKET SIZE | 3-5.5m3 |
| ENGINE | WEICHAI WP6G175E22 |
| PERFORMANCE | |
| Rated Load | 4000 KG |
| Overall Weight | 12700 KG |
| Bucket Capacity | 3-5.5m3 |
| Max. Traction Force | 125 KN |
| Max. Breakout Force | 127 KN |
| Max. Grade Ability | 30° |
| Max. Dumping height | 2950 mm |
| Max. Dumping reach | 1055 mm |
| Overall Dimension (L x W x H) | 7295 x 2574 x 3324 mm |
| ENGINE | |
| Model | Weichai WP6G175E22 |
| Type | Inline Water Cooling, Dry Cylinder Injection |
| No. of Cylinder-Bore*Stroke | 105*130 mm |
| Maximum Torque | 640 N.M |
| Gears | 2 Forward Shift, 1 Reverse Shift |
| Maximum Speed | 38 Km/h |
| DRIVE AXLES | |
| Main Reducing Spiral | Bevel Gear, Grade 1 Reduction |
| Decelerating Mode | Planetary Reduction, Grade 1 |
| Wheel Base | 2800 mm |
| Wheel Tread | 1800 mm |
| HYDRAULIC SYSTEM | |
| System Working Pressure | 16 Mpa |
| Boom Lifting Time | 5.73 |
| Total Time | 10±0.2s |
| BRAKE SYSTEM | |
| Service Brake | Air Assist Disc Brake on 4 Wheels |
| Parking Brake | Manual Disk Brake |
| TYRE | |
| Type Specification | 20.5-25 |
| Front Tyre Pressure | 0.4 Mpa |
| Rear Tyre Pressure | 0.35 Mpa |
